Brand | TP-Link |
Model | EAP610 |
Color | White |
HARDWARE FEATURES | |

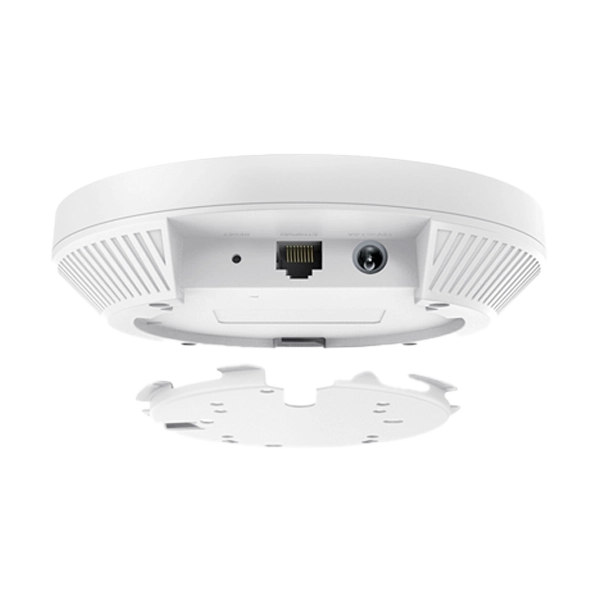

Interface | 1× Gigabit Ethernet (RJ-45) Port |
Button | Reset |
Power Supply | V2 and above: |
802.3at PoE | |
48 V Passive PoE | |
12 V / 1.5 A DC (Power Adapter included) | |
Max. Power Consumption | V2 and above: |
EU: 13.7 W (For PoE); 12.3 W (for DC) | |
US: 14.2 W (For PoE); 12.8 W (for DC) | |
Dimensions ( W x D x H ) | V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
Antenna | Internal Omni Antenna |
2.4 GHz: 2× 4 dBi | |
5 GHz: 2× 5 dBi | |
Mounting | Ceiling /Wall Mounting (Kits included) |
Junction Box Mounting | |
Management Features | |
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller |
Omada Hardware Controller OC300 | |
Omada Hardware Controller OC200 | |
Omada Software Controller | |
Cloud Access | Yes, through |
OC300 | |
OC200 | |
Omada Software Controller | |
Omada Cloud-Based Controller | |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
WIRELESS FEATURES | |
Coverage | 115㎡(1250 ft²)*** |
Concurrent Clients | 250+** |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 5 GHz: Up to 1201 Mbps |
2.4 GHz: Up to 574 Mbps | |
Wireless Functions | 1024-QAM |
4× Longer OFDM Symbol | |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
Enable/Disable Wireless Radio | |
Automatic Channel Assignment | |
Transmit Power Control (Adjust Transmit Power on dBm) | |
QoS(WMM) | |
MU-MIMO | |
Seamless Roaming § | |
Omada Mesh§ | |
Band Steering | |
Load Balance | |
Airtime Fairness | |
Beamforming | |
Rate Limit | |
Reboot Schedule | |
Wireless Schedule | |
Wireless Statistics based on SSID/AP/Client | |
Wireless Security | Captive Portal Authentication§ |
Access Control | |
Wireless Mac Address Filtering | |
Wireless Isolation Between Clients | |
SSID to VLAN Mapping | |
Rogue AP Detection | |
802.1X Support | |
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
Transmission Power | CE: |
<20 dBm(2.4 GHz, EIRP) | |
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) | |
FCC: | |
<25 dBm (2.4 GHz) | |
<25 dBm (5 GHz) | |
Warranty | 3 Year |
Note | * Features, Price, Specifications are subject to change without notice. |
