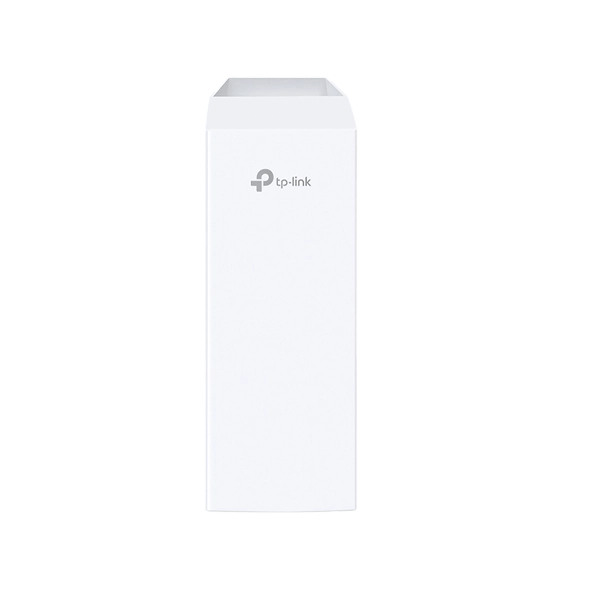

TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point

No reviews yet |Write a review
SKU: CPE510  |  Brand: TP-Link
₹ 4,549 ₹ 7,199 37% OFF ● In StockShips in 1–2 days
Earn 45 Gear Coins with this purchase Coins are credited after delivery.
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Quantity:
(2 available)
Add to Cart
Secure Payments
100% Genuine
Fast Delivery
Expert Support

TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point


FEATURES


  • The TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point is a reliable and high-performance networking solution designed for long-distance wireless connectivity. Built for outdoor environments, this access point is perfect for businesses, warehouses, farms, campuses, CCTV surveillance, and internet service providers (ISPs) looking to establish stable point-to-point (PtP) or point-to-multipoint (PtMP) wireless connections. With its advanced wireless technology and weatherproof design, the CPE510 delivers consistent performance even in challenging outdoor conditions.
  • Operating on the 5GHz frequency band, the TP-Link CPE510 provides wireless speeds of up to 300Mbps, making it ideal for applications such as HD video streaming, VoIP communication, wireless surveillance, and high-speed internet sharing. The integrated 13dBi directional antenna ensures excellent signal strength and enables long-range transmission over several kilometers when deployed in clear line-of-sight conditions. This makes it a cost-effective alternative to laying expensive fiber or Ethernet cables across large outdoor areas.
  • Powered by TP-Link's Pharos MAXtream TDMA technology, the CPE510 enhances network capacity, reduces interference, and improves overall wireless performance in high-density deployments. It also features adjustable transmission power and optimized system-level settings to ensure maximum efficiency and stable connections across long distances.
  • The device is housed in a durable IPX5-rated weatherproof enclosure, protecting it from rain, dust, heat, and harsh outdoor environments. Its robust design ensures reliable operation throughout the year, making it suitable for both rural and urban installations. The included Passive PoE (Power over Ethernet) adapter simplifies installation by allowing both power and data to be transmitted through a single Ethernet cable, reducing installation costs and improving flexibility.
  • Network management is made easy with Pharos Control, TP-Link's centralized management software. Administrators can monitor, configure, and manage multiple CPE devices from a single interface, making it ideal for businesses and large-scale wireless deployments.
  • Whether you need to connect two buildings, extend your wireless network across a campus, provide internet access in remote locations, or deploy outdoor surveillance systems, the TP-Link CPE510 delivers outstanding performance, reliability, and value. Combining high-speed wireless connectivity, long-range coverage, enterprise-grade features, and a rugged outdoor design, it is an excellent choice for professional outdoor networking applications.


SPECIFICATIONS

Brand

TP-Link

Model

CPE510

Color

White

Processor

Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

Memory

64MB DDR2 RAM, 8MB Flash

Interface

1 10/100Mbps Shielded Ethernet Port (Passive PoE in)


1 Grounding Terminal


1 Reset Button

Power Supply

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)


Voltage range: 16-27VDC

Max. Power Consumption

10.5 Watts Max


Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Antenna

Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna


Beam Width: 45° (H-Plane) / 30° (E-Plane)

Protection

15KV ESD Protection


6KV Lightning Protection

Wireless Speeds

Up to 300Mbps (40MHz,Dynamic)


Up to 144.4Mbps (20MHz,Dynamic)


Up to 72.2Mbps (10MHz,Dynamic)


Up to 36.1Mbps (5MHz,Dynamic)

Interfaces

1 AC Jack with Earth Ground


1 10/100Mbps Shielded Ethernet Port (Power + Data)


1 10/100Mbps Shielded Ethernet Port (Data)

Dimensions

4.3 x 2.2 x 1.3 in

Warranty

1 Year Brand Warranty

Note

* Features, Price, Specifications are subject to change without notice.
