Flexible Port Configuration
Features 24× 10/100 Mbps PoE+ RJ45 ports, 2× Gigabit RJ45 uplink ports, and 2× combo Gigabit SFP slots for reliable and scalable network connectivity.

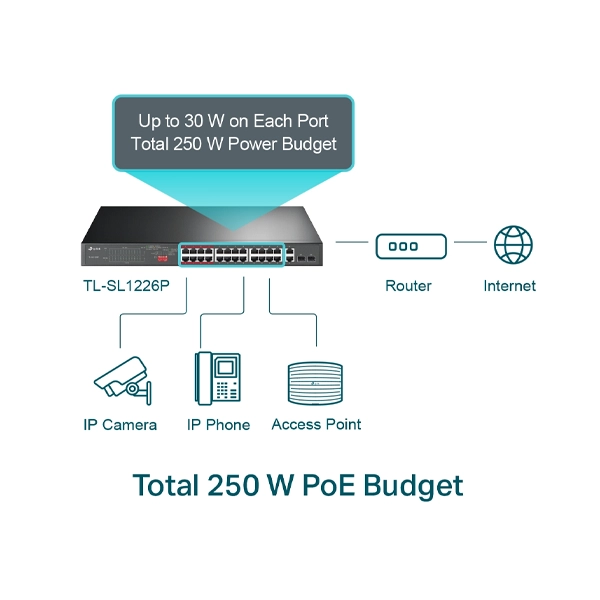

Power over Ethernet (PoE+)
Equipped with 24 IEEE 802.3at/af PoE+ ports delivering up to 30W per port, with a total PoE power budget of 250W.

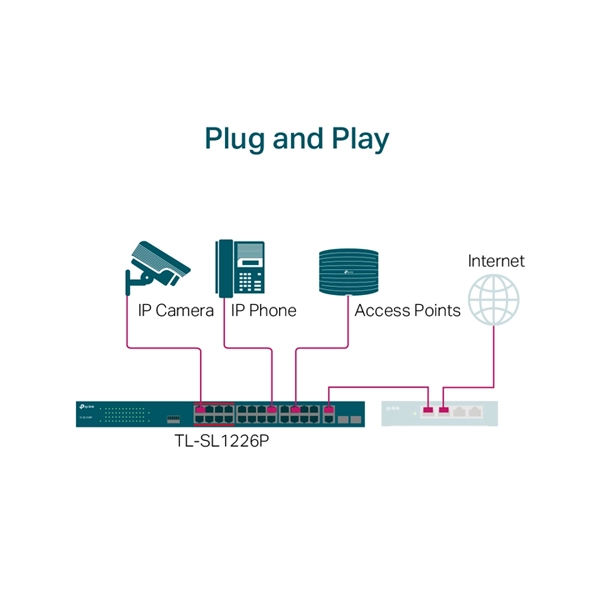

Plug-and-Play Installation
Simple deployment with no software installation or configuration required, making setup quick and hassle-free.
Extend Mode
Supports PoE data and power transmission up to 250m in Extend Mode, ideal for IP surveillance applications (transmission speed reduced to 10 Mbps).
Priority Mode
Prioritizes traffic on ports 1–8 to ensure stable, high-quality video surveillance and VoIP data transmission.
Isolation Mode
Helps prevent broadcast storms by isolating client traffic, enhancing LAN security and improving network performance.
3-Year Warranty
Includes a dependable 3-year warranty along with free technical support available Monday to Friday, 6:00 AM–6:00 PM PST, for added peace of mind.
Brand | TP-Link |
Model | TL-SL1226P |
Product Type | Unmanaged PoE+ Switch |
Total Ports | 28 Ports |
PoE Ports | 24 × 10/100Mbps RJ45 PoE+ Ports |
Uplink Ports | 2 × 10/100/1000Mbps Gigabit RJ45 Ports |
SFP Slots | 2 × Combo Gigabit SFP Slots |
PoE Standard | IEEE 802.3af / IEEE 802.3at |
Max PoE Power per Port | 30W |
Total PoE Budget | 250W |
Switching Capacity | 8.8 Gbps |
Packet Forwarding Rate | 6.55 Mpps |
MAC Address Table | 8K Entries |
Buffer Memory | 4.1 Mb |
Jumbo Frame | 10 KB |
Transmission Distance | Up to 250m (Extend Mode) |
PoE Features | Extend Mode, Priority Mode, Isolation Mode, PoE Auto Recovery |
Network Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at |
Management | Unmanaged (Plug & Play) |
Installation | Desktop & Rackmount |
Housing Material | Metal |
Cooling | Fan Cooling |
Power Supply | Built-in Internal Power Supply |
Input Power | 100–240V AC, 50/60Hz |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -40°C to 70°C |
Operating Humidity | 10%–90% RH (Non-condensing) |
Certifications | CE, FCC, RoHS |
Warranty | 3 Year |
Note | * Features, Price, Specifications are subject to change without notice. |
