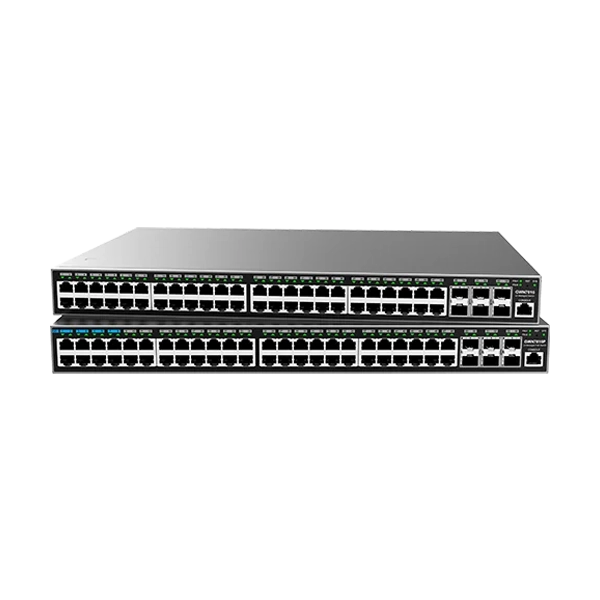

    Grandstream GWN7816P 48-Port PoE+ Switch

    SKU:
    GWN7816P
    Be first to review
    ₹ 141,097 ~ ₹ 90,999 36 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7816P 48-Port PoE+ Switch


    FEATURES

    • The Grandstream GWN7816P is a Layer 3 managed PoE network switch designed for businesses, offices, schools, hotels, and other organizations that need reliable and high-performance network connectivity. In simple terms, it works as a central connection point for many different devices, including computers, servers, Wi-Fi access points, IP phones, security cameras, printers, and other network equipment. The switch provides 48 Gigabit Ethernet ports, giving businesses plenty of connections for their wired devices. It also includes 6 × 10 Gigabit SFP+ ports, which can be used for high-speed uplinks to other switches, servers, or network infrastructure. This combination makes the GWN7816P suitable for networks that need both a large number of standard connections and fast links between important network devices.
    • One of the most useful features of the GWN7816P is its Power over Ethernet Plus (PoE+) support. PoE allows the switch to send both network data and electrical power through the same Ethernet cable to compatible devices. This is particularly useful for IP phones, Wi-Fi access points, security cameras, and other PoE-enabled equipment. Instead of requiring a separate power adapter and electrical connection for each device, a single Ethernet cable can provide both power and connectivity. This can make installation easier, reduce cable clutter, and give businesses more flexibility when installing devices in locations where power sockets may not be readily available. The GWN7816P is designed to provide PoE power across its supported ports, making it suitable for environments with multiple powered network devices.
    • The switch also provides Layer 3 networking capabilities, which means it can do more than simply connect devices together. It can help route traffic between different network segments, giving administrators greater control over how information moves through the network. This is useful for businesses that want to separate different types of users and devices. For example, an organization can create separate network sections for employees, guests, IP phones, security cameras, servers, and network management equipment. The GWN7816P supports IPv4 and IPv6, helping it work with both current and newer network environments. Its Layer 3 functionality makes it a practical option for businesses that need a more structured and manageable network infrastructure.
    • VLAN support is another important feature. VLANs allow network administrators to divide one physical network into several logical networks. For example, guest users can be kept separate from employee computers, while IP phone traffic and security camera traffic can be placed into their own network sections. This helps improve organization and can provide additional security by controlling which devices and users can communicate with each other. The GWN7816P also supports Voice VLAN, which is useful for businesses using IP-based telephone systems. By separating voice traffic from normal data traffic, administrators can manage phone communication more effectively and provide better network performance for business calls.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7816P

    Color

    Black

    Product type

    Enterprise-grade Layer 3 Managed PoE Switch

    Gigabit Ethernet ports

    48 × Gigabit Ethernet

    10G SFP+ ports

    6 × 10Gbps SFP+

    PoE ports

    48

    PoE standards

    IEEE 802.3af / 802.3at / 802.3bt

    Total PoE output

    740 W

    PoE++ ports

    Ports 1–8, up to 60 W/port

    Remaining PoE ports

    Up to 30 W/port

    Non-blocking throughput

    108 Gbps

    Switching capacity

    216 Gbps

    Forwarding rate

    160.704 Mpps

    MAC address table

    32K

    VLANs

    4K

    VLAN interfaces

    32, with 9216-byte MTU

    ARP/NDP

    2K

    Link aggregation

    32 groups

    IPv4 routes

    12K

    IPv6 routes

    4K

    IPv4 static routes

    32

    IPv6 static routes

    32

    Dynamic routing

    RIP, RIPng, OSPF, OSPFv3, BGP

    IGMP Snooping

    IGMPv2/v3, up to 256 groups

    MLD Snooping

    MLDv1/v2, up to 256 groups

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 64 instances

    QoS

    Advanced QoS and traffic prioritization

    Security

    802.1X, MAC authentication, RADIUS, TACACS+, DHCP/DHCPv6 Snooping, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    Management

    Web UI, CLI, Embedded Controller, GDMS Networking, GWN Manager, GWN Series Router

    Stacking

    Supported

    Power redundancy

    Optional hot-swappable CRPS-920W

    Network protocols

    IPv4, IPv6, IEEE 802.3/802.3i/u/ab/z/ae/az/ad/x, 802.3af/at/bt, 802.1p/Q/d/s/w/x

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
