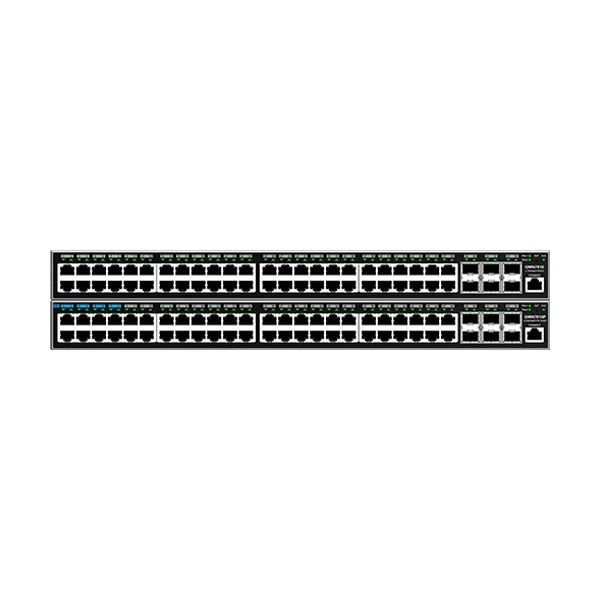

    Grandstream GWN7816 48-Port Managed Switch

    SKU:
    GWN7816
    Be first to review
    ₹ 72,705 ~ ₹ 43,499 40 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7816 48-Port Managed Switch


    FEATURES

    • The Grandstream GWN7816 is a Layer 3 managed network switch designed for businesses and organizations that need a fast, reliable, secure, and easy-to-manage network. In simple terms, it acts as a central connection point for computers, servers, IP phones, Wi-Fi access points, security cameras, printers, and other network equipment. The GWN7816 provides 48 Gigabit Ethernet ports, giving businesses plenty of connections for their wired devices. It also includes 6 high-speed 10G SFP+ ports, which can be used to connect the switch to servers, network backbones, storage systems, or other switches using compatible high-speed connections. This combination of a large number of Gigabit ports and high-speed uplinks makes the GWN7816 a practical choice for offices, schools, hotels, warehouses, and other organizations with many connected devices.
    • One of the main benefits of the GWN7816 is its Layer 3 networking capability. Unlike a simple unmanaged switch, it can perform routing functions and provide greater control over how traffic moves between different parts of the network. This is especially useful for businesses that want to divide their network into different sections. For example, a company can create separate networks for employees, guests, IP phones, security cameras, servers, and network management. This allows administrators to organize the network more effectively and control communication between different groups of devices. The GWN7816 supports modern IPv4 and IPv6 networking, helping businesses maintain compatibility with current network infrastructure while preparing for future requirements.
    • The switch also provides strong VLAN support. VLANs allow administrators to create separate logical networks without needing separate physical switches for every group of users or devices. For example, guest Wi-Fi users can be kept separate from company computers, while IP phone traffic and CCTV devices can operate on their own network segments. This can improve network organization and provide an additional layer of security. The GWN7816 also supports Voice VLAN, which is useful for organizations that use IP-based telephone systems. By separating voice traffic from normal data traffic, administrators can manage business phone communications more effectively and help maintain reliable call quality.
    • Another useful feature is Quality of Service (QoS). In simple language, QoS allows the network administrator to give priority to important types of traffic when the network is busy. For example, voice calls and video meetings can be given higher priority than large file downloads or background data. This can help reduce delays, interruptions, and poor-quality communication. QoS is particularly useful in modern workplaces where employees depend on VoIP phones, video conferencing, cloud applications, online meetings, file sharing, and other services that require a stable network connection. By managing traffic intelligently, the GWN7816 can help provide a smoother and more consistent network experience.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7816

    Color

    Black

    Product type

    Enterprise Layer 3 Managed Network Switch

    Gigabit Ethernet ports

    48 × 10/100/1000 Mbps

    10G SFP+ ports

    6 × 10Gbps SFP+

    PoE ports

    No PoE

    Switching capacity

    216 Gbps

    Total non-blocking throughput

    108 Gbps

    Forwarding rate

    160.704 Mpps

    MAC addresses

    32K

    VLANs

    4K

    VLAN interfaces

    32, 9216-byte MTU

    ARP/NDP

    2K

    Link aggregation

    32 groups

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 64 instances

    IPv4 routes

    12K

    IPv6 routes

    4K

    IPv4 static routes

    32

    IPv6 static routes

    32

    Dynamic routing

    RIP, RIPng, OSPF, OSPFv3, BGP

    IGMP Snooping

    IGMPv2/v3, up to 256 groups

    MLD Snooping

    MLDv1/v2, up to 256 groups

    VLAN features

    Port-based VLAN, 802.1Q, MAC-based VLAN, protocol-based VLAN, QinQ, Private VLAN, Voice VLAN

    Security

    802.1X, MAC authentication, RADIUS, TACACS+, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    QoS

    Built-in QoS for traffic prioritization

    Stacking

    Supported

    Management

    Web UI, CLI, Embedded Controller, GDMS Networking, GWN Manager, GWN Series Routers

    Power supply

    AC power supply

    Hot-swappable PSU

    RPS-70W supported

    IPv4 / IPv6

    Supported

    Network protocols

    IPv4, IPv6, IEEE 802.3/802.3i/u/ab/z/ae/az/ad/x, 802.1p/Q/d/s/w/x

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
