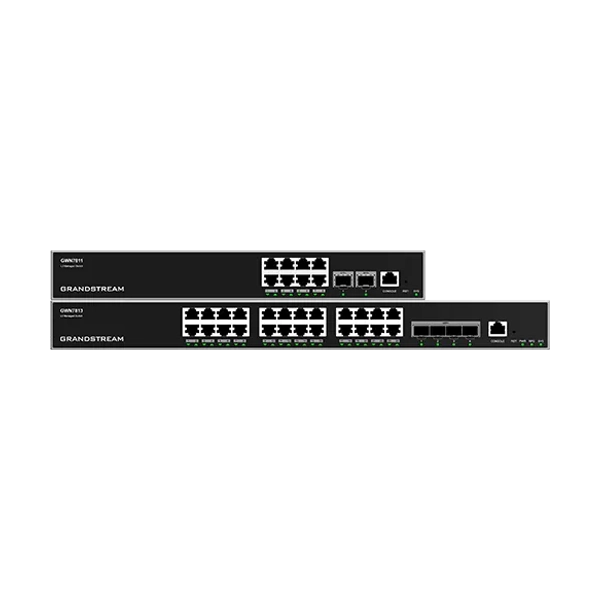

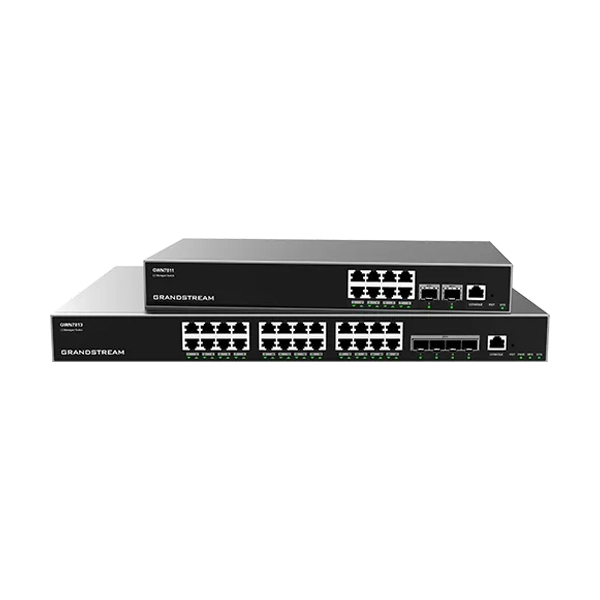

    Grandstream GWN7813 24-Port Managed Switch

    SKU:
    GWN7813
    Be first to review
    ₹ 34,940 ~ ₹ 22,799 35 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7813 24-Port Managed Switch


    FEATURES

    • The Grandstream GWN7813 is a Layer 3 managed Gigabit network switch designed for businesses and organizations that need fast, reliable, secure, and flexible network connectivity. In simple terms, it works as a central connection point for computers, servers, IP phones, Wi-Fi access points, security cameras, printers, and other network equipment. The GWN7813 provides 24 Gigabit Ethernet ports, giving businesses enough connections for a wide range of wired devices. It also includes 4 high-speed 10G SFP+ ports, which can be used to connect the switch to other switches, servers, storage systems, or high-speed network infrastructure. This combination of standard Gigabit connections and 10-Gigabit uplinks makes the GWN7813 suitable for offices, schools, hotels, retail stores, warehouses, and other organizations that need a dependable network.
    • One of the main advantages of the GWN7813 is its Layer 3 networking capability. Unlike a basic unmanaged switch, it can perform routing functions and provide administrators with greater control over how traffic moves between different parts of the network. This is useful for businesses that want to separate their network into different sections. For example, employee computers, guest Wi-Fi users, IP phones, security cameras, servers, and management devices can be placed on separate network segments. This helps keep the network organized and can improve security by controlling communication between different groups of devices. The GWN7813 supports IPv4 and IPv6, making it suitable for modern business networks and helping organizations prepare for future networking requirements.
    • The switch also supports VLANs, which allow administrators to create separate logical networks while using the same physical network infrastructure. For example, a company can keep guest users separate from employees, while voice traffic and security cameras can operate on their own network segments. This makes it easier to manage network traffic and can provide an additional layer of security. Voice VLAN support is also useful for businesses using IP telephone systems because voice traffic can be separated from normal data traffic. This helps administrators manage phone traffic more effectively and can contribute to better call quality and network performance.
    • The GWN7813 includes Quality of Service (QoS) features that help administrators control how network traffic is handled. In simple language, QoS allows important traffic to receive higher priority when the network becomes busy. For example, voice calls and video meetings can be prioritized over large file downloads or background traffic. This can help reduce delays and interruptions and provide a smoother experience for employees using VoIP phones, video conferencing, cloud applications, and other real-time services. QoS is particularly useful in modern offices where many different applications are competing for network bandwidth at the same time.
    • Network security is another important feature of the GWN7813. The switch provides several security and access-control features that help businesses protect their network from unauthorized access and unwanted traffic. These include 802.1X authentication, MAC authentication, access control lists, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security, storm control, and DoS protection. In everyday terms, these features allow IT administrators to control which devices can connect to the network and how those devices are allowed to communicate. This can help protect sensitive business information and reduce the risks associated with unauthorized devices or suspicious network traffic.
    • The GWN7813 also includes features designed to improve network reliability and performance. Link aggregation allows multiple physical network connections to work together as a single logical connection. This can provide additional bandwidth and improve redundancy when multiple links are available. The switch also supports Spanning Tree Protocol, which helps prevent network loops that could otherwise cause serious network interruptions. In addition, IGMP and MLD snooping help manage multicast traffic efficiently. These features can be useful for applications such as video distribution, IPTV, surveillance systems, and other services that use multicast communication.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7813

    Color

    Black

    Product type

    Enterprise Layer 3 Managed Network Switch

    Gigabit Ethernet ports

    24 × Gigabit Ethernet

    10G SFP+ ports

    4 × 10Gbps SFP+

    Total ports

    28

    PoE

    No PoE

    Total non-blocking throughput

    64 Gbps

    Switching capacity

    128 Gbps

    Forwarding rate

    95.232 Mpps

    MAC addresses

    16K

    VLANs

    4K

    VLAN interfaces

    16, up to 9216 MTU

    ARP/NDP

    1K

    IPv4 routes

    512

    IPv6 routes

    128

    IPv4 static routes

    32

    IPv6 static routes

    32

    Dynamic routing

    RIP, RIPng, OSPF, OSPFv3, BGP

    IGMP Snooping

    IGMPv2/v3, up to 256 groups

    MLD Snooping

    MLDv1/v2, up to 256 groups

    MVR

    Supported

    Link aggregation

    Up to 32 groups

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 32 instances

    ACL

    2K ACL entries for Ethernet, IPv4 and IPv6

    QoS

    Port priority, priority mapping, SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    DHCP

    DHCP server, DHCP relay, DHCP Option 82/60/160/43

    Security

    802.1X, MAC authentication, RADIUS, TACACS+, ARP Inspection, IP/IPv6 Source Guard, DoS prevention, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    Management

    Web UI, CLI, Embedded Controller, GDMS Networking, GWN Manager, GWN Series Routers

    Stacking

    Supported

    Redundant power supply

    External RPS: 12V/5A (60W)

    Fans

    None

    Dimensions

    440 × 200 × 44 mm

    Unit weight

    2.94 kg

    Mounting

    Desktop, wall-mount or rack-mount

    Operating temperature

    0°C to 45°C

    Operating humidity

    10%–90% RH, non-condensing

    Storage temperature

    -10°C to 60°C

    Storage humidity

    5%–95% RH, non-condensing

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
