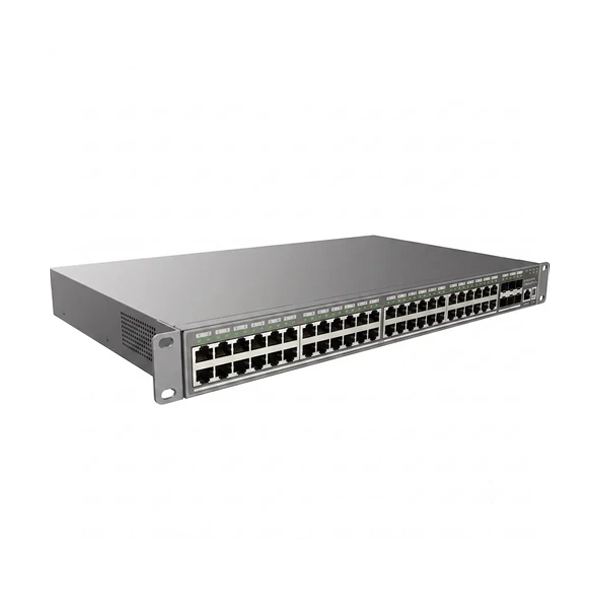

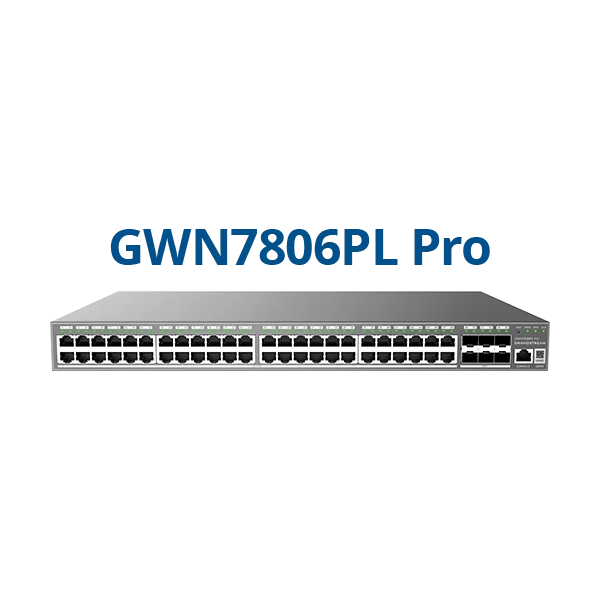

Grandstream GWN7806PL Pro 48-Port PoE Switch


FEATURES

  • The Grandstream GWN7806PL-PRO is a professional managed network switch built for businesses that need a fast, reliable, and flexible network. It comes with 48 Gigabit Ethernet ports, allowing you to connect computers, printers, IP phones, Wi-Fi access points, cameras, and other network devices.
  • One of its biggest advantages is PoE+ support, which allows compatible devices to receive both network connectivity and electrical power through a single Ethernet cable. This makes installation easier and reduces the need for separate power adapters and cables.
  • The switch also includes 10G SFP+ uplink ports, providing high-speed connections to servers, network storage, core switches, or other high-bandwidth equipment. This helps reduce network bottlenecks when handling large amounts of data.
  • With Layer 2+ management features, the GWN7806PL-PRO gives network administrators better control over their network. Features such as VLAN, QoS, link aggregation, port mirroring, STP/RSTP/MSTP, and IGMP snooping help organize traffic, improve performance, and maintain network reliability.
  • The switch is suitable for offices, schools, hotels, warehouses, retail stores, surveillance systems, and larger business networks. Its rack-mount design makes it convenient to install in a standard network cabinet or server rack.
  • It also provides security and access-control features to help administrators manage connected devices and protect the network. Network monitoring and management tools make it easier to identify problems and maintain the system.
  • Overall, the GWN7806PL-PRO is a strong choice for businesses looking for a high-capacity managed PoE+ switch with fast uplinks, flexible network management, and reliable performance.


SPECIFICATIONS


Brand

Grandstream

Model

GWN7806PL Pro

Color

Black

Product Type

Enterprise Layer 2+ Managed Network Switch

Gigabit Ethernet Ports

48 × Gigabit Ethernet

SFP/SFP+ Ports

6 × SFP+

SFP+ Speed

Up to 10Gbps

PoE Ports

48

PoE Standard

IEEE 802.3af/at

PoE Power per Port

Up to 30W

Total PoE Power Budget

400W

Non-Blocking Throughput

108Gbps

Switching Capacity

216Gbps

Forwarding Rate

160.704 Mpps

CPU

Dual-core MIPS interAptive™, 1GHz

RAM

512MB

Flash Memory

8MB NOR Flash + 128MB NAND Flash

MAC Address Table

32K

VLANs

Up to 4,000 VLANs

VLAN Interfaces

32

MTU

Up to 9,216 bytes

Link Aggregation

Up to 32 groups

Spanning Tree

STP/RSTP/MSTP/PVST(+)/RPVST(+)

Network Protocols

IPv4 and IPv6

Security

802.1X, MAC authentication, RADIUS, TACACS+, ACL, DHCP Snooping, ARP Inspection, IP Source Guard, DoS protection

QoS

Traffic prioritization, queue scheduling, traffic shaping and rate limiting

Management

Web UI, CLI, GWN Manager, GDMS Networking and GWN Series Router

Stacking

Supports stacking of up to 16 switches

Power Supply

100–240V AC, 50/60Hz

Maximum Power Consumption

509.3W

Operating Temperature

0°C to 45°C

Storage Temperature

-10°C to 60°C

Operating Humidity

10%–90% RH, non-condensing

Dimensions

440 × 300 × 44 mm

Weight

5.05 kg

Mounting

Desktop / Rack mount

Warranty

3 Year

Note

*Price, feature and specifications are subject to change without notice
