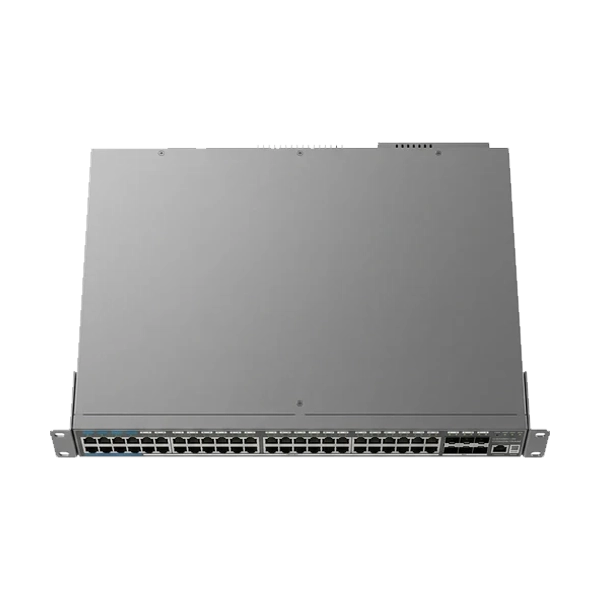

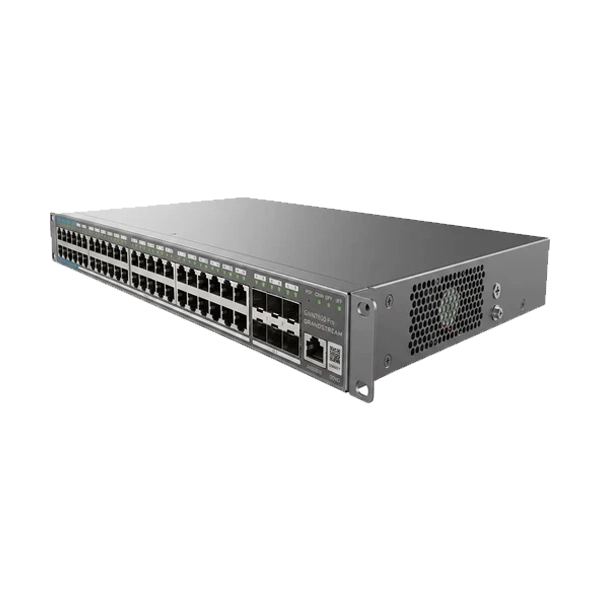

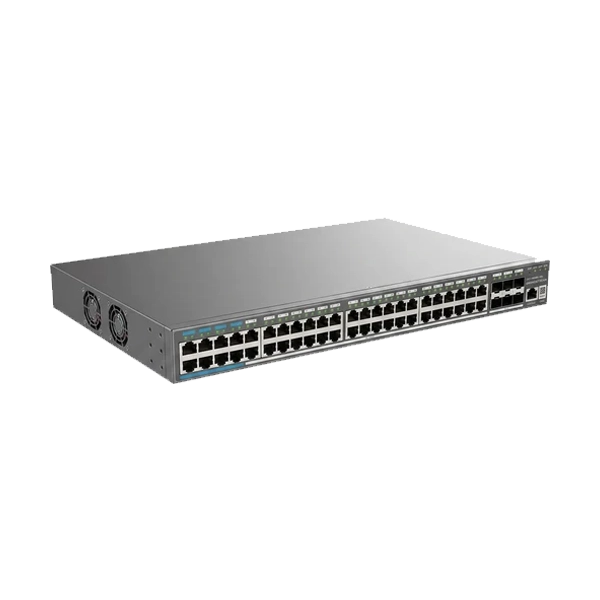

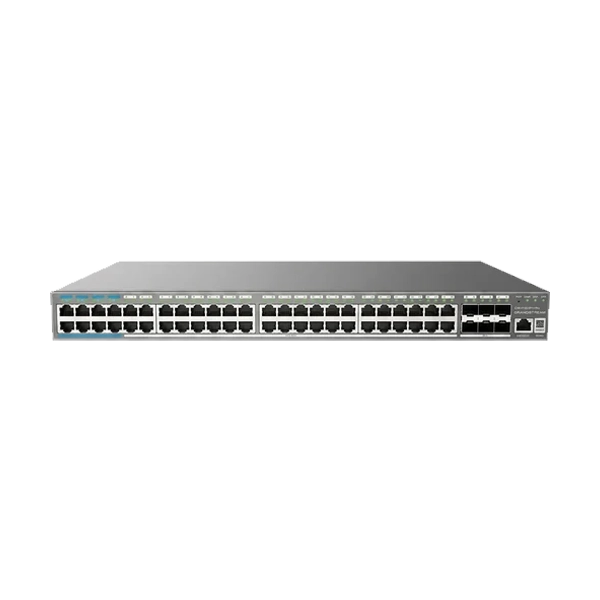

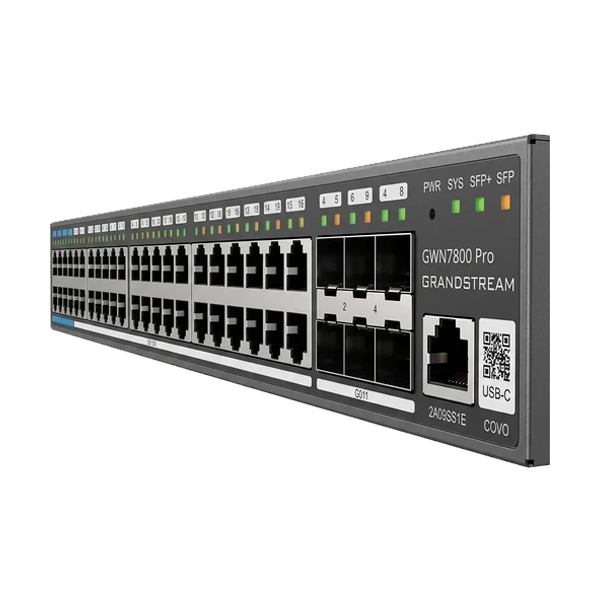

    Grandstream GWN7806PH Pro 48-Port PoE Switch

    SKU:
    GWN7806PH Pro
    Be first to review
    ₹ 107,793 ~ ₹ 67,899 37 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7806PH Pro 48-Port PoE Switch


    FEATURES

    • The Grandstream GWN7806PH Pro is an enterprise-grade Layer 2++ managed network switch designed for businesses that need high performance, strong security, flexible management, and reliable connectivity. It provides 48 Gigabit Ethernet ports along with 6 high-speed SFP+ ports, making it suitable for connecting computers, servers, IP phones, Wi-Fi access points, security cameras, and other network equipment. The SFP+ ports can provide high-speed connections of up to 10Gbps for linking the switch with servers, other switches, or the network backbone. This makes the GWN7806PH Pro a good choice for offices, hotels, schools, warehouses, retail environments, and other organizations where a large number of network devices need to be connected and managed efficiently.
    • One of the key features of the GWN7806PH Pro is its PoE/PoE+ support. The switch can automatically provide power to compatible devices through the same Ethernet cable used for network communication. This is particularly useful for IP phones, Wi-Fi access points, IP cameras, and other PoE-enabled equipment. Instead of installing a separate power adapter for every device, users can connect compatible equipment directly to the switch and allow it to receive both power and data. The Pro model provides smart dynamic PoE power allocation, helping the switch manage available power efficiently across connected devices. This can make installation cleaner, easier, and more flexible.
    • The switch is designed to provide high-performance network connectivity, with up to 216Gbps switching capacity and 160.704Mpps forwarding performance according to Grandstream's specifications. In everyday terms, this means the switch can handle a large amount of network traffic while maintaining efficient communication between connected devices. This is useful for businesses where many computers, phones, access points, cameras, and other devices are operating at the same time. The high-speed SFP+ ports are especially helpful for reducing bottlenecks between the access network and high-performance servers or core network equipment.
    • The GWN7806PH Pro provides advanced VLAN features that help administrators organize and separate network traffic. VLANs allow a business to create different logical networks while using the same physical switch. For example, employee computers can be separated from guest Wi-Fi users, IP phones, security cameras, and management equipment. The switch supports up to 4,000 VLANs, along with port-based VLAN, 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN features. In simple language, this gives IT administrators much greater control over how different groups of devices communicate.
    • Quality of Service (QoS) is another important feature. QoS allows administrators to give priority to important network traffic when the network is busy. For example, voice calls and video conferencing can receive higher priority than large file downloads or background traffic. This can help maintain smoother communication and better performance for business-critical applications. Grandstream also provides features such as port priority, priority mapping, queue scheduling, traffic shaping, and rate limiting, giving administrators several ways to control network traffic.
    • Security is a major focus of the GWN7806PH Pro. The switch includes features such as 802.1X authentication, MAC authentication, RADIUS, TACACS+, ARP inspection, IP Source Guard, DHCP snooping, port security, storm control, and DoS protection. These features help IT administrators control who and what can access the network. For example, authentication can prevent unauthorized devices from connecting, while port security and access-control features can help restrict unwanted network activity. This makes the switch suitable for organizations where protecting business data and controlling network access are important priorities.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7806PH Pro

    Color

    Black

    Product type

    Enterprise Layer 2++ Managed PoE Switch

    Gigabit Ethernet ports

    48 × Gigabit Ethernet

    SFP+ ports

    6 × 10G SFP+

    Total ports

    54

    PoE ports

    48

    PoE standard

    IEEE 802.3af/at/bt

    Maximum PoE per port

    60 W

    Maximum total PoE output

    720 W

    Non-blocking throughput

    108 Gbps

    Switching capacity

    216 Gbps

    Forwarding rate

    160.704 Mpps

    Packet buffer

    8.4 MB

    Network latency

    <4 µs

    MAC address table

    32K

    VLANs

    4K

    VLAN interfaces

    32, 9216-byte MTU

    ARP/NDP

    1K

    Static routes

    1K IPv4 / 1K IPv6

    IGMP Snooping

    Up to 640 groups

    MLD Snooping

    Up to 640 groups

    Link aggregation

    Up to 32 LAG groups, up to 8 members/LAG

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), up to 64 instances

    ACL

    256 ACLs / 4K ACEs

    Jumbo frame

    Up to 12,288 bytes

    Stacking

    Yes, up to 8 switches

    Power supply

    100–240 V AC, 50/60 Hz

    Redundant power

    1+1 external RPS

    Maximum power consumption

    870.9 W

    Dimensions

    440 × 300 × 44 mm

    Weight

    5.3 kg

    Fans

    4

    Mounting

    Desktop / rack-mount

    Operating temperature

    0°C to 45°C

    Storage temperature

    -10°C to 60°C

    Operating humidity

    10%–90% RH, non-condensing

    Storage humidity

    5%–95% RH, non-condensing

    MTBF

    70,000 hours

    Surge protection

    ±6 kV CM power; ±4 kV CM network ports

    ESD protection

    ±12 kV contact discharge

    Compliance

    FCC, CE, RCM, IC

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
