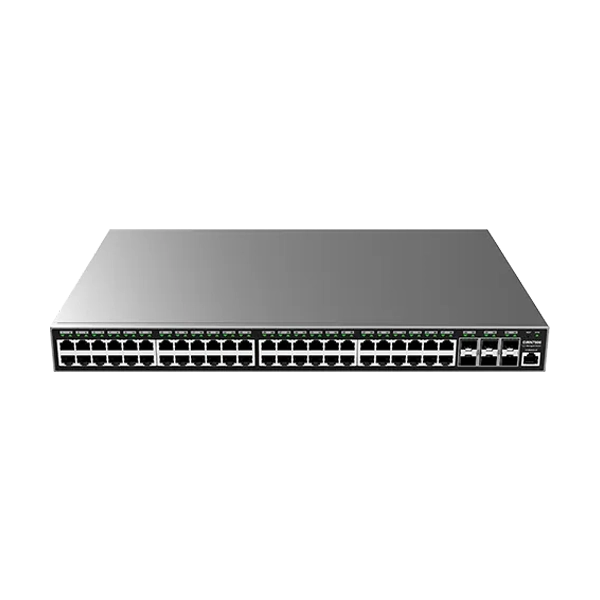

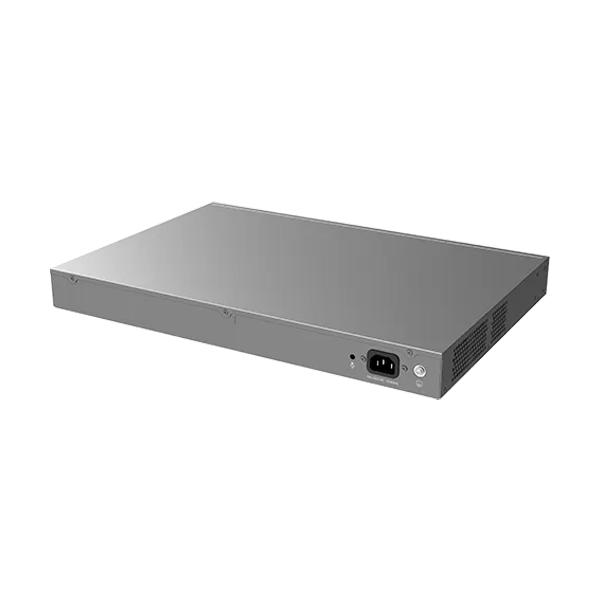

    Grandstream GWN7806 48-Port Managed Switch

    SKU:
    GWN7806
    Be first to review
    ₹ 58,729 ~ ₹ 34,499 41 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7806 48-Port Managed Switch


    FEATURES

    • The Grandstream GWN7806 is a professional Layer 2+ managed Gigabit network switch designed for businesses and organizations that need reliable, secure, and flexible wired network connectivity. It provides 48 Gigabit Ethernet ports, giving businesses plenty of connections for computers, printers, IP phones, Wi-Fi access points, security cameras, servers, and other network equipment. It also includes 6 high-speed SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage systems, or a high-speed network backbone. With its large number of ports and advanced management features, the GWN7806 is suitable for offices, schools, hotels, retail stores, warehouses, and other professional environments where many network devices need to communicate efficiently.
    • One of the main advantages of the GWN7806 is its high-speed Gigabit connectivity. All 48 Ethernet ports can provide fast wired connections for everyday business devices, allowing employees to access internet services, servers, shared storage, printers, and cloud applications efficiently. The 6 SFP+ ports provide high-speed uplink options for connecting important network infrastructure. These ports can be used to connect the switch to other compatible switches, servers, storage systems, or the network backbone. This helps reduce bottlenecks when large amounts of information need to move between different parts of the network.
    • The GWN7806 provides advanced VLAN support, which makes it easier for businesses to organize their network. VLANs allow one physical switch to support multiple logical networks. For example, employee computers can be placed on one VLAN, guest users on another, IP phones on a Voice VLAN, and security cameras on a separate network. This separation allows administrators to control communication between different groups and can improve network security. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN, giving IT teams flexibility when designing and managing the network.
    • Another important feature is Quality of Service (QoS). QoS allows administrators to prioritize important traffic when the network is busy. For example, voice calls and video conferences can be given higher priority than large downloads or background data transfers. This can help reduce delays and interruptions for real-time applications. Businesses that rely on VoIP phones, video conferencing, cloud applications, online meetings, and collaboration tools can benefit from traffic prioritization. The GWN7806 provides features such as priority mapping, queue scheduling, traffic shaping, and rate limiting, allowing administrators to control how network bandwidth is used.
    • Network security is another important feature of the GWN7806. It provides security functions such as 802.1X authentication, MAC authentication, RADIUS, TACACS+, access control lists, DHCP snooping, ARP inspection, IP Source Guard, port security, storm control, and DoS protection. In simple language, these features help administrators decide which devices can access the network and how traffic should be handled. This can help reduce unauthorized access and protect important business resources. Having these security controls built into the switch gives organizations more control over their wired network.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7806

    Color

    Black

    Product type

    Enterprise Layer 2+ Managed Network Switch

    Gigabit Ethernet ports

    48 × Gigabit Ethernet

    10G SFP+ ports

    6 × 10G SFP+

    Total ports

    54

    PoE ports

    None

    PoE output

    N/A

    Non-blocking throughput

    108 Gbps

    Switching capacity

    216 Gbps

    Forwarding rate

    160.704 Mpps

    MAC address table

    32K

    VLANs

    4K

    VLAN interfaces

    32, 9216-byte MTU

    ARP/NDP

    1K

    Link aggregation

    32 groups

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 64 instances

    IGMP Snooping

    Up to 256 groups

    MLD Snooping

    Up to 256 groups

    MVR

    Supported

    GVRP

    Pending

    ERPS

    Pending

    Jumbo frame

    Up to 9,216-byte MTU

    QoS

    Port priority, priority mapping, queue scheduling, traffic shaping, rate limiting

    ACL

    Supported

    802.1X

    Supported

    MAC authentication

    Supported

    RADIUS

    Supported

    TACACS+

    Supported

    ARP Inspection

    Supported

    IP/IPv6 Source Guard

    Supported

    DHCP/DHCPv6 Snooping

    Supported

    DoS protection

    Supported

    Port security

    Supported

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    Management

    Web UI, embedded controller, GDMS Networking, GWN Manager, GWN Series Routers

    SNMP

    v1/v2c/v3

    RMON

    Supported

    Syslog

    Supported

    LLDP/LLDP-MED

    Supported

    Stacking

    Up to 16 switches

    Power supply

    AC

    Mounting

    Rack/desktop

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
