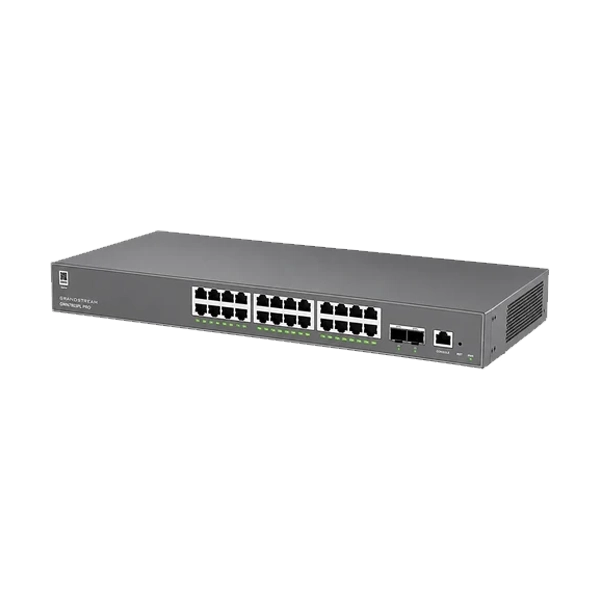

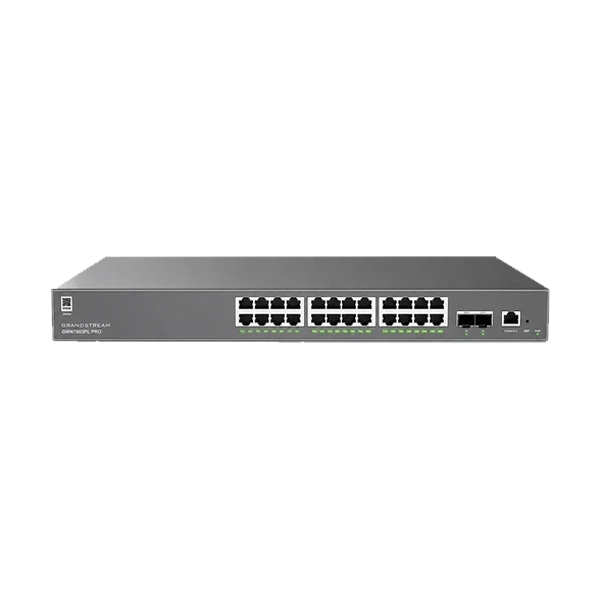

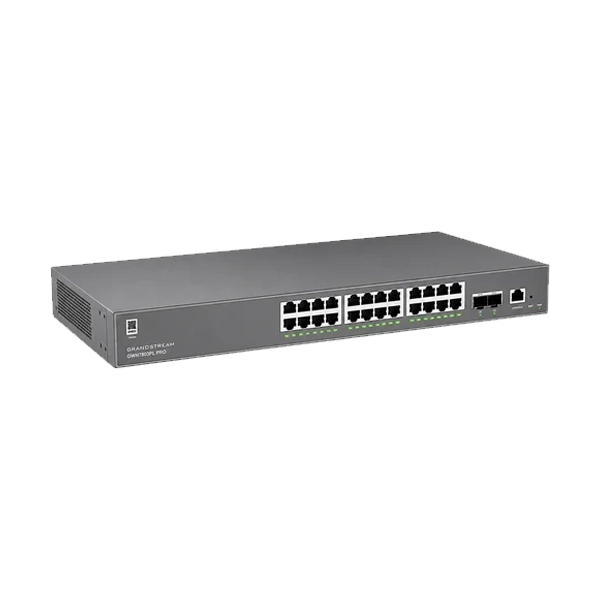

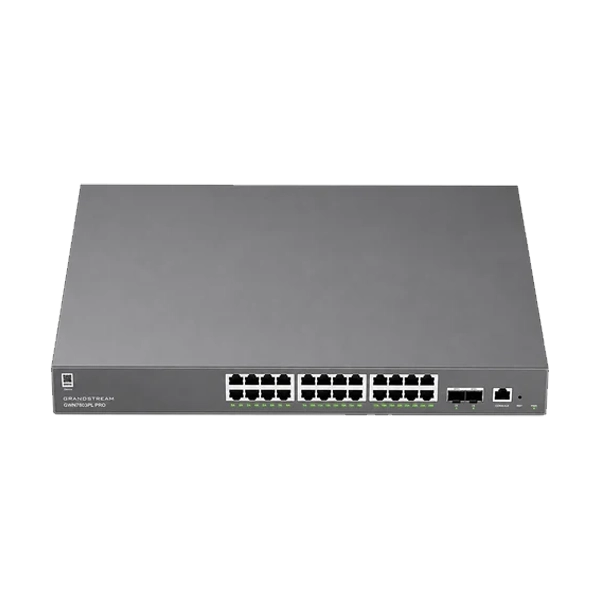

    Grandstream GWN7803PL Pro 24-Port PoE Switch

    SKU:
    GWN7803PL Pro
    Be first to review
    ₹ 40,887 ~ ₹ 25,999 36 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7803PL Pro 24-Port PoE Switch


    FEATURES

    • The Grandstream GWN7803PL Pro is a professional Layer 2++ managed PoE/PoE+ network switch designed for businesses that need reliable, secure, and flexible network connectivity. It provides 24 Gigabit Ethernet ports, giving organizations enough connections for computers, printers, IP phones, Wi-Fi access points, security cameras, servers, and other network devices. It also includes 2 high-speed SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage systems, or the main network backbone. This combination makes the GWN7803PL Pro suitable for offices, schools, hotels, retail stores, warehouses, and other business environments where multiple devices need dependable network access.
    • One of the most useful features of the GWN7803PL Pro is its PoE/PoE+ capability. Power over Ethernet allows compatible devices to receive both electrical power and network data through the same Ethernet cable. This is particularly helpful for IP phones, Wi-Fi access points, IP security cameras, and other PoE-enabled devices. Instead of requiring a separate power adapter and electrical connection for every device, users can connect compatible equipment directly to the switch with one Ethernet cable. This can make installation cleaner, reduce cable clutter, and provide greater flexibility when installing devices in locations where electrical outlets are not easily available. For businesses with several phones, access points, or cameras, PoE can make network installation considerably easier.
    • The switch provides 24 Gigabit Ethernet ports, offering fast and dependable wired connectivity for everyday business equipment. Employees can connect computers and workstations directly to the switch, while network administrators can use other ports for printers, phones, cameras, access points, and other devices. The SFP+ uplink ports provide faster connections to important network infrastructure. They can be used to connect the switch to another compatible switch, a server, storage equipment, or a high-speed network backbone. These uplinks help reduce bottlenecks when large amounts of information need to move between users and central network resources.
    • The GWN7803PL Pro provides advanced VLAN support, which helps businesses organize their network more effectively. VLANs allow one physical network to be divided into multiple logical networks. For example, employee computers can be placed on one VLAN, guest Wi-Fi users on another, IP phones on a Voice VLAN, and security cameras on a separate VLAN. This separation helps administrators control how different groups of devices communicate and can improve overall network security. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN, giving IT teams flexibility when designing the network.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7803PL Pro

    Color

    Black

    Product type

    Enterprise Layer 2++ Managed PoE Switch

    Gigabit Ethernet ports

    24 × Gigabit Ethernet

    SFP+ ports

    2 × SFP+

    PoE ports

    24

    PoE standard

    IEEE 802.3af/at

    Maximum PoE per port

    30 W

    Total PoE output

    250 W

    Non-blocking throughput

    44 Gbps

    Switching capacity

    88 Gbps

    Forwarding rate

    65.472 Mpps

    Network latency

    <4 µs

    MAC address table

    16K

    VLANs

    4K

    Jumbo frame

    Up to 12,288 bytes

    VLAN interfaces

    16

    IGMP Snooping

    Up to 384 groups

    MLD Snooping

    Up to 384 groups

    Link aggregation

    Up to 8 LAG groups, up to 8 members/LAG

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    ACL

    128 ACLs / 1.5K ACEs

    QoS

    SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    Security

    802.1X, MAC authentication, RADIUS, TACACS, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    Management

    Web GUI, GDMS Networking, GWN Manager, GWN App, GWN Series Routers, CLI

    Management protocols

    SNMP v1/v2c/v3, RMON, Syslog, LLDP/LLDP-MED

    Stacking

    Not supported

    Redundant power

    No external RPS

    Power supply

    100–240 V AC, 50/60 Hz

    Maximum power consumption

    299.2 W

    Dimensions

    440 × 200 × 44 mm

    Weight

    3.06 kg

    Mounting

    Desktop / rack-mount

    Operating temperature

    0°C to 45°C

    Operating humidity

    10%–90% RH, non-condensing

    Storage temperature

    -10°C to 60°C

    Storage humidity

    5%–95% RH, non-condensing

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
