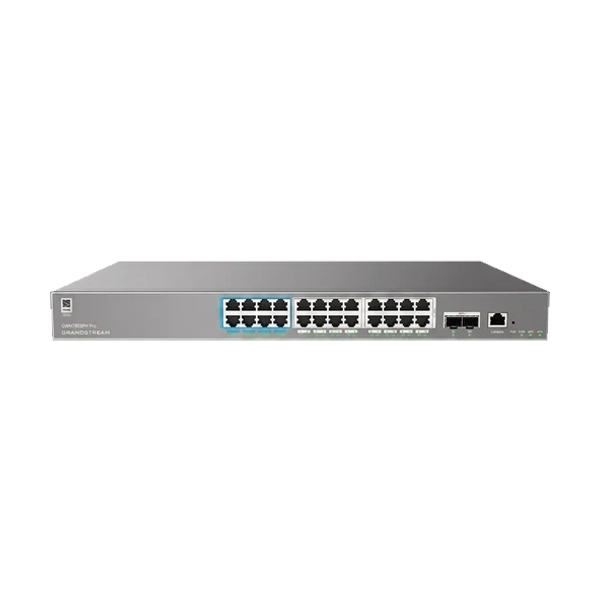

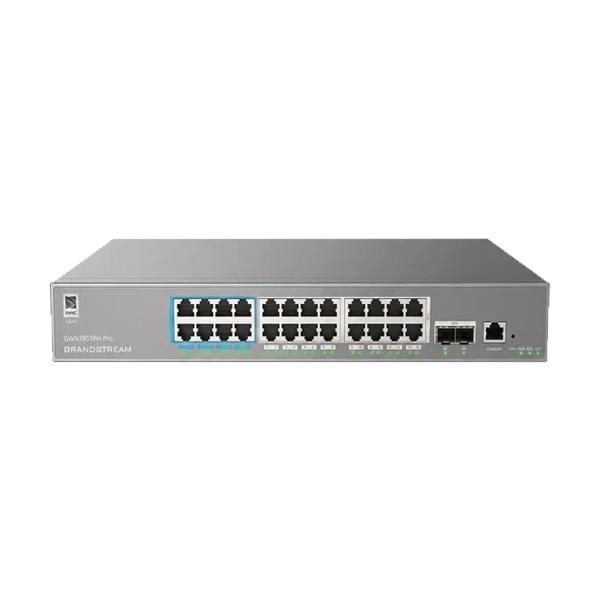

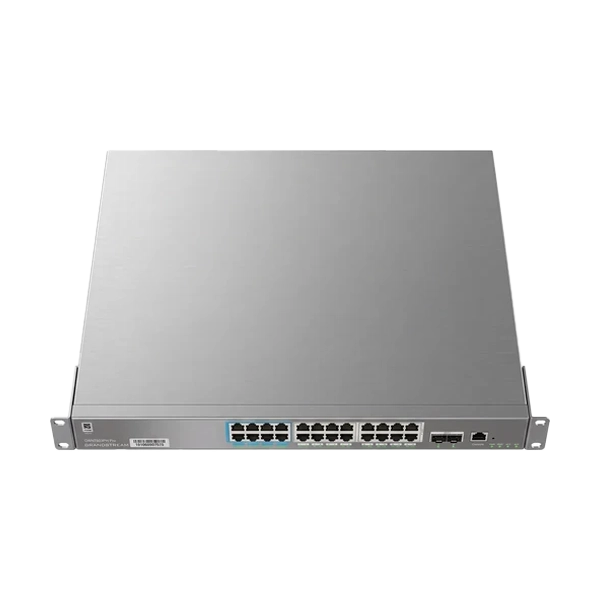

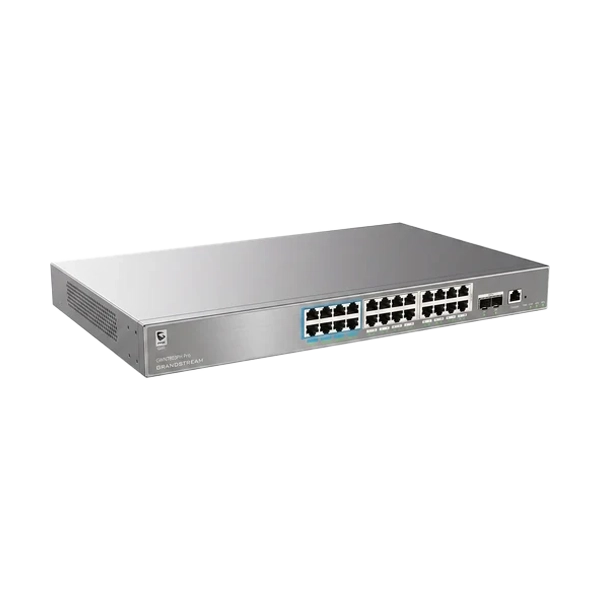

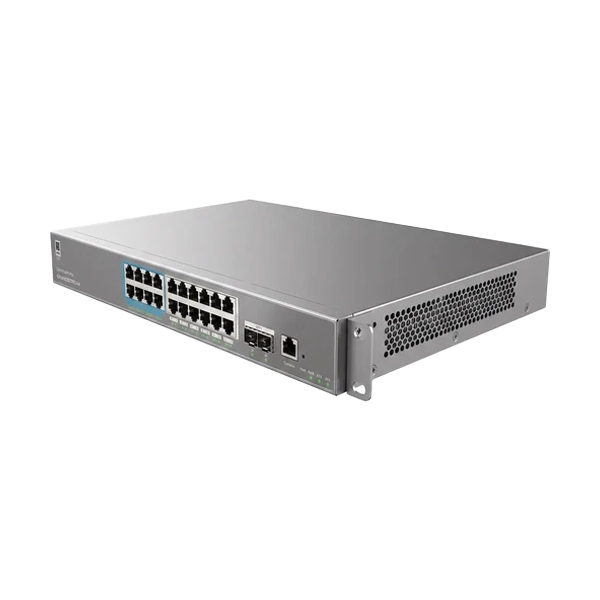

    Grandstream GWN7803PH Pro 24-Port PoE Switch

    SKU:
    GWN7803PH Pro
    Be first to review
    ₹ 49,808 ~ ₹ 31,099 38 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7803PH Pro 24-Port PoE Switch


    FEATURES

    • The Grandstream GWN7803PH Pro is an enterprise-focused Layer 2++ managed PoE/PoE+ network switch designed for businesses that need reliable, secure, and flexible network connectivity. It provides 24 Gigabit Ethernet ports, giving businesses plenty of wired connections for computers, printers, IP phones, Wi-Fi access points, security cameras, servers, and other network equipment. It also includes 2 high-speed SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage systems, or the main network backbone. This combination makes the GWN7803PH Pro suitable for offices, schools, hotels, retail stores, warehouses, and other business environments where multiple network devices need to work together efficiently.
    • One of the most useful features of the GWN7803PH Pro is its PoE/PoE+ capability. Power over Ethernet allows compatible devices to receive both electrical power and network data through the same Ethernet cable. This is particularly helpful for IP phones, Wi-Fi access points, IP security cameras, and other PoE-enabled equipment. Instead of needing a separate power adapter and electrical cable for every device, users can connect compatible equipment directly to the switch using an Ethernet cable. This can make installations cleaner and easier while giving businesses more flexibility when placing network devices. It is especially useful in areas where electrical outlets are not conveniently located.
    • The switch is designed to provide strong Gigabit network performance for everyday business applications. Its 24 Gigabit Ethernet ports provide fast wired connections for users and network devices, while the SFP+ uplink ports provide higher-speed connections to important network infrastructure. These uplinks can help reduce bottlenecks when large amounts of data are transferred between the access network and servers or other switches. This can be useful for businesses that use cloud applications, network storage, video systems, large file transfers, or other data-intensive services.
    • The GWN7803PH Pro also provides advanced VLAN functionality. VLANs allow a business to divide one physical network into multiple logical networks. In simple terms, different types of users and devices can be kept separate even though they are connected to the same physical switch. For example, employee computers can be placed on one VLAN, guest Wi-Fi users on another, IP phones on a Voice VLAN, and security cameras on a separate VLAN. This makes the network easier to organize and can improve security by controlling communication between different groups. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN.
    • Another important feature is Quality of Service (QoS). QoS helps administrators manage network traffic by giving priority to important applications. For example, voice calls and video meetings can be given higher priority than large downloads or background traffic. This can help reduce delays, interruptions, and poor-quality communication when the network is busy. The switch includes traffic-management features such as priority mapping, queue scheduling, traffic shaping, and rate limiting. These controls help businesses make better use of available bandwidth and maintain a smoother network experience for employees.
    • Network security is also an important part of the GWN7803PH Pro. The switch provides security features such as 802.1X authentication, MAC authentication, RADIUS, TACACS+, access control lists, DHCP snooping, ARP inspection, IP Source Guard, port security, storm control, and DoS protection. In everyday language, these features help IT administrators control which devices can connect to the network and how traffic is allowed to move between different parts of the network. This can help reduce unauthorized access and provide additional protection for business data and network resources.
    • The switch also includes features designed to improve network reliability. Link aggregation allows multiple physical network connections to work together as a single logical connection, which can provide additional bandwidth and redundancy. Network loop protection and Spanning Tree-related features help prevent network loops that could otherwise cause major disruptions. The switch also provides device protection and fault-management capabilities that can help administrators identify and respond to network problems. These features are valuable for businesses that depend on their network for daily operations and need a stable infrastructure.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7803PH Pro

    Color

    Black

    Gigabit Ethernet ports

    24 × Gigabit Ethernet

    SFP+ ports

    2 × SFP+

    10G SFP+ support

    Up to 2 × 10G modules

    PoE ports

    24

    PoE standard

    IEEE 802.3af/at/bt

    Maximum PoE per port

    60 W

    Total PoE output

    400 W

    Non-blocking throughput

    44 Gbps

    Switching capacity

    88 Gbps

    Forwarding rate

    65.472 Mpps

    Packet buffer

    8.4 MB

    Network latency

    <4 µs

    MAC addresses

    16K

    VLANs

    4K

    VLAN interfaces

    16, with 9216-byte MTU

    ARP/NDP

    64

    Static routes

    32 IPv4 / 32 IPv6

    IGMP Snooping

    384 groups

    MLD Snooping

    384 groups

    Link aggregation

    Up to 8 LAG groups, up to 8 members per LAG

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    ACL

    128 ACLs / 1.5K ACEs

    Jumbo frame

    Maximum 12,288 bytes

    QoS

    Port priority, priority mapping, SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    Security

    802.1X, MAC authentication, RADIUS, TACACS, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    Port loopback detection, BPDU protection, root protection and loopback protection

    Management

    Web GUI/embedded controller, GDMS Networking, GWN Manager, GWN App, GWN Series Routers, CLI

    Management protocols

    SNMP v1/v2c/v3, RMON, Syslog, LLDP/LLDP-MED

    Stacking

    No — stacking is for GWN7806 Pro models

    Power supply

    100–240 V AC, 50/60 Hz

    External RPS

    1+1 external RPS supported

    Dimensions

    440 × 200 × 44 mm

    Weight

    4.15 kg

    Mounting

    Desktop or rack-mount

    Operating temperature

    0°C to 45°C

    Storage temperature

    -10°C to 60°C

    Operating humidity

    10%–90% RH, non-condensing

    Storage humidity

    5%–95% RH, non-condensing

    MTBF

    70,000 hours

    Surge protection

    ±6 kV CM power; ±4 kV CM network ports

    ESD protection

    ±12 kV contact discharge

    Compliance

    FCC, CE, RCM, IC

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
