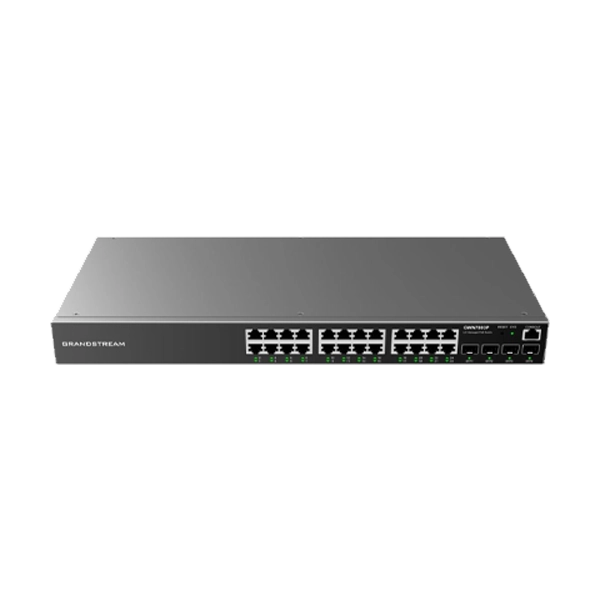

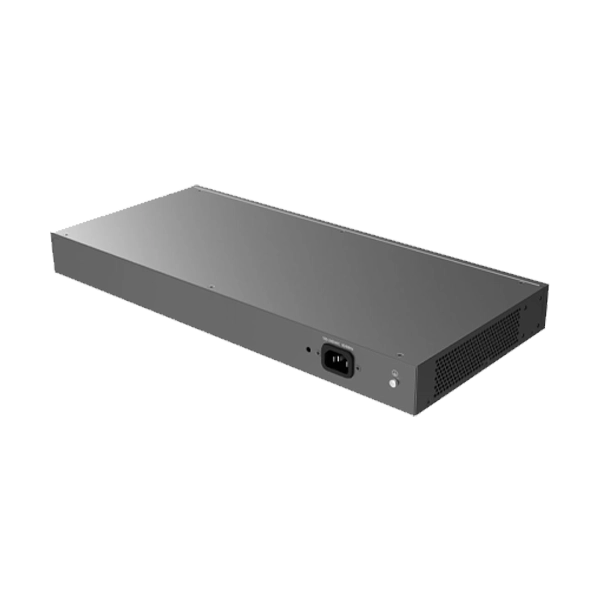

    Grandstream GWN7803P 24-Port PoE+ Switch

    SKU:
    GWN7803P
    Be first to review
    ₹ 51,889 ~ ₹ 26,999 48 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7803P 24-Port PoE+ Switch


    FEATURES

    • The Grandstream GWN7803P is a professional Layer 2+ managed Gigabit PoE/PoE+ network switch designed for businesses that need reliable wired connectivity, convenient power delivery, strong security, and flexible network management. It provides 24 Gigabit Ethernet ports with PoE support, making it suitable for connecting computers, printers, IP phones, Wi-Fi access points, security cameras, and other network devices. It also includes 4 Gigabit SFP uplink ports, which can be used to connect the switch to other switches, servers, or network infrastructure. With its combination of multiple Gigabit ports, PoE capability, high-speed uplinks, and advanced management functions, the GWN7803P is well suited for offices, schools, hotels, retail stores, warehouses, and other professional environments.
    • One of the most useful features of the GWN7803P is its Power over Ethernet (PoE/PoE+) capability. PoE allows compatible devices to receive both network data and electrical power through the same Ethernet cable. This is particularly useful for IP phones, Wi-Fi access points, IP cameras, and other PoE-enabled devices. Instead of needing a separate power adapter and electrical connection for every device, businesses can connect compatible equipment directly to the switch using an Ethernet cable. This can make installations cleaner, reduce cable clutter, and provide greater flexibility when installing equipment in locations where electrical outlets are not conveniently available.
    • The switch provides 24 Gigabit Ethernet ports, giving connected devices fast and dependable network access. These ports can be used for employee computers, printers, IP phones, access points, security cameras, and other business equipment. The 4 SFP uplink ports provide additional flexibility for connecting the GWN7803P to other network switches or higher-level network infrastructure. This can be useful when businesses need to connect different parts of their network together or create a more organized network backbone.
    • The GWN7803P also provides advanced VLAN support, which helps businesses organize their network into separate logical groups. For example, employee computers can be placed on one VLAN, guest users on another, IP phones on a Voice VLAN, and security cameras on a separate VLAN. This means different types of devices can share the same physical switch while remaining logically separated. VLANs can make a network easier to manage and can help improve security by controlling communication between different groups. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN.
    • Another important feature is Quality of Service (QoS). QoS helps network administrators prioritize important traffic when the network is busy. For example, voice calls and video conferences can be given higher priority than large downloads or background data transfers. This can help reduce delays and interruptions and provide a smoother experience for employees using VoIP phones, video conferencing, cloud applications, and other real-time services. The switch provides traffic-management features such as priority mapping, queue scheduling, traffic shaping, and rate limiting, allowing administrators to control how network bandwidth is used.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7803P

    Color

    Black

    Product type

    Enterprise Layer 2+ Managed PoE Network Switch

    Gigabit Ethernet ports

    24 × 10/100/1000 Mbps RJ45

    SFP ports

    4 × 1G SFP

    Total ports

    28

    PoE ports

    24

    PoE standard

    IEEE 802.3af/at

    Max PoE per port

    30 W

    Total PoE output

    370 W

    Integrated power supply

    400 W

    Non-blocking throughput

    28 Gbps

    Switching capacity

    56 Gbps

    Forwarding rate

    41.66 Mpps

    Forwarding mode

    Store-and-forward

    Packet buffer

    4.1 MB

    Network latency

    Average <4 µs

    MAC addresses

    8K

    VLANs

    4K

    VLAN interfaces

    16, 9216-byte MTU

    ARP/NDP

    256

    Static routing

    32 IPv4 / 32 IPv6

    Link aggregation

    8 groups

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    IGMP Snooping

    IGMPv2/v3, 256 groups

    MLD Snooping

    MLDv1/v2, 256 groups

    MVR

    Supported

    ACL

    128 ACLs / 1.5K ACEs

    Jumbo frame

    10,240 bytes

    QoS

    SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    802.1X

    Supported

    MAC authentication

    Supported

    RADIUS / TACACS+

    Supported

    ARP Inspection

    Supported

    IP/IPv6 Source Guard

    Supported

    DHCP/DHCPv6 Snooping

    Supported

    DoS protection

    Supported

    Storm control

    Supported

    Port isolation

    Supported

    Port security / Sticky MAC

    Supported

    Loop protection

    BPDU, root and loopback protection

    Management

    Web GUI, CLI, SNMP, GDMS Networking, GWN Manager, GWN Router

    SNMP

    v1/v2c/v3

    RMON

    Supported

    LLDP / LLDP-MED

    Supported

    Console

    1 × Console port

    Fans

    2

    Operating temperature

    0°C to 45°C

    Operating humidity

    10–90% RH, non-condensing

    Storage temperature

    -10°C to 60°C

    Storage humidity

    5–95% RH, non-condensing

    Dimensions

    440 × 200 × 44 mm

    Weight

    3.3 kg

    Mounting

    Desktop / wall / rack mount

    Compliance

    FCC, CE, RCM, IC, UKCA

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
