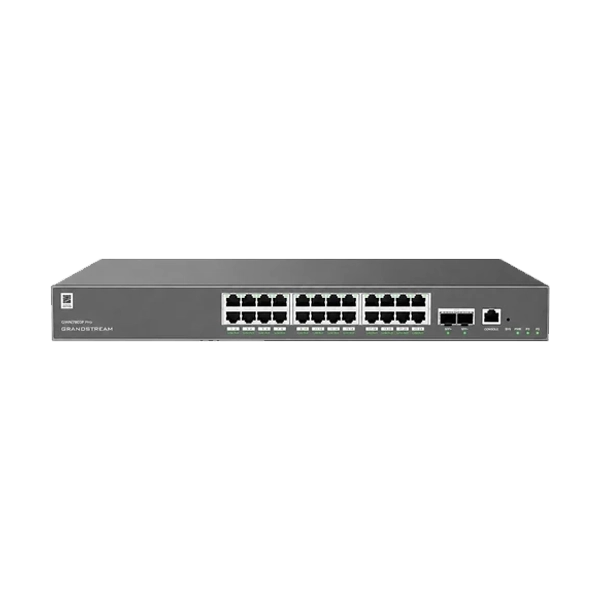

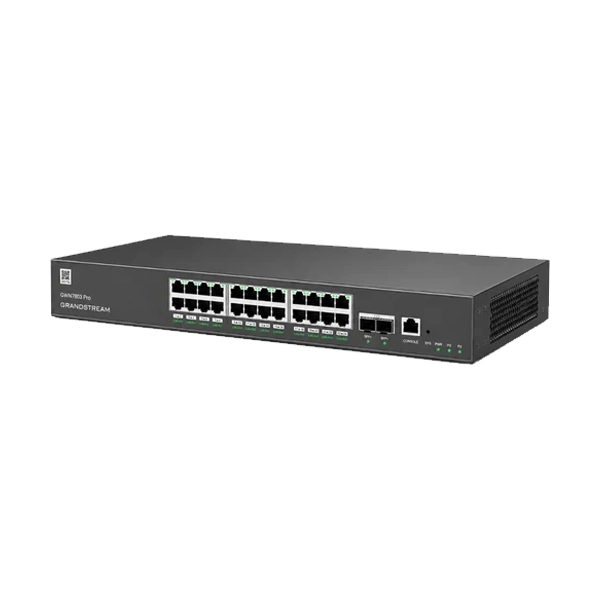

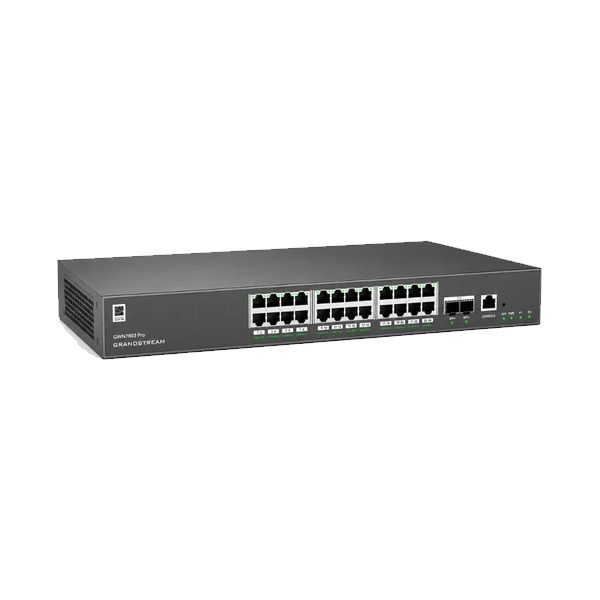

    Grandstream GWN7803 Pro 24-Port Managed Switch

    SKU:
    GWN7803 Pro
    Be first to review
    ₹ 27,506 ~ ₹ 17,999 35 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7803 Pro 24-Port Managed Switch


    FEATURES

    • The Grandstream GWN7803 Pro is a professional Layer 2++ managed Gigabit network switch designed for businesses and organizations that need reliable, secure, and flexible network connectivity. It provides 24 Gigabit Ethernet ports, making it suitable for connecting computers, printers, servers, IP phones, Wi-Fi access points, security cameras, and other network devices. It also includes 2 high-speed SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage systems, or the main network backbone. This combination makes the GWN7803 Pro a practical choice for offices, schools, hotels, retail stores, warehouses, and other business environments where many devices need to communicate reliably.
    • One of the main advantages of the GWN7803 Pro is its high-speed Gigabit connectivity. The 24 Ethernet ports provide fast wired network connections for everyday business devices, helping employees access servers, internet services, cloud applications, printers, and shared resources efficiently. The additional SFP+ uplink ports provide faster connections to important network infrastructure. These ports can be used to connect the switch to compatible high-speed network equipment, helping reduce bottlenecks when large amounts of data need to move between users, servers, and other parts of the network.
    • The GWN7803 Pro also provides advanced VLAN support, which helps businesses organize their network more effectively. VLANs allow a single physical switch to support multiple separate logical networks. For example, employee computers can be placed on one VLAN, guest users on another, IP phones on a Voice VLAN, and security cameras on a separate VLAN. This separation makes it easier for IT administrators to control communication between different groups of devices and can improve network security. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN, providing flexibility for different network designs.
    • Another useful feature is Quality of Service (QoS). QoS helps administrators prioritize important network traffic when the network becomes busy. For example, voice calls and video meetings can be given priority over large file downloads or background traffic. This can help reduce delays and interruptions and provide better performance for real-time applications. Businesses that use VoIP phones, video conferencing, cloud applications, online meetings, and collaboration tools can benefit from this type of traffic management. The switch also provides features such as priority mapping, queue scheduling, traffic shaping, and rate limiting to give administrators greater control over network bandwidth.

    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7803 Pro

    Color

    Black

    Product type

    Enterprise Layer 2++ Managed Network Switch

    Gigabit Ethernet ports

    24 × Gigabit Ethernet

    SFP/SFP+ ports

    2 × SFP+

    PoE ports

    None

    PoE standard

    N/A

    Total PoE output

    N/A

    Forwarding mode

    Store-and-forward

    Non-blocking throughput

    44 Gbps

    Switching capacity

    88 Gbps

    Forwarding rate

    65.472 Mpps

    Network latency

    <4 µs

    MAC address table

    16K

    VLANs

    4K

    VLAN interfaces

    16, 9216-byte MTU

    ARP/NDP

    64

    Static routes

    32 IPv4 / 32 IPv6

    IGMP Snooping

    IGMPv2/v3, 384 groups

    MLD Snooping

    MLDv1/v2, 384 groups

    Link aggregation

    Up to 8 LAG groups, up to 8 members/group

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    ACL

    128 ACLs / 1.5K ACEs

    Jumbo frame

    Up to 12,288 bytes

    Power supply

    100–240 V AC, 50/60 Hz

    Redundant power supply

    1+1 external RPS, one included by default

    External RPS rating

    30 W

    Maximum power consumption

    21.4 W

    CPU

    Single-core, MIPS interAptive™ 1 GHz

    RAM

    128 MB

    Flash

    32 MB NOR Flash

    Management port

    1 × Console port

    Reset

    1 × Reset pinhole

    System LED

    1 × tri-color LED

    Data LEDs

    26 × green LEDs

    Fan

    None

    Dimensions

    440 × 200 × 44 mm

    Weight

    2.5 kg

    Mounting

    Desktop or rack-mount

    Operating temperature

    0°C to 45°C

    Storage temperature

    -10°C to 60°C

    Operating humidity

    10%–90% RH, non-condensing

    Storage humidity

    5%–95% RH, non-condensing

    MTBF

    70,000 hours

    Surge protection

    ±6 kV CM power; ±4 kV CM network ports

    ESD

    ±12 kV contact discharge

    Compliance

    FCC, CE, RCM, IC

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
