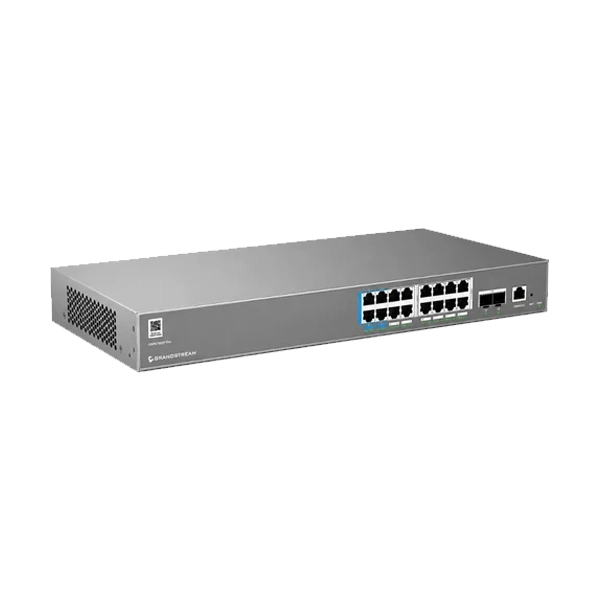

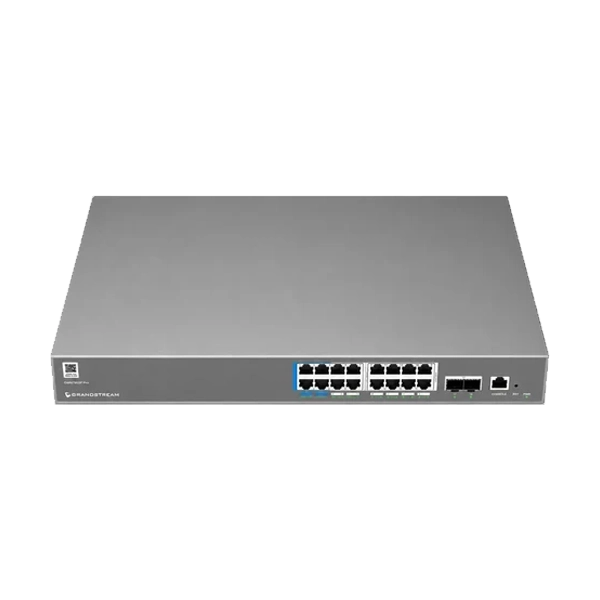

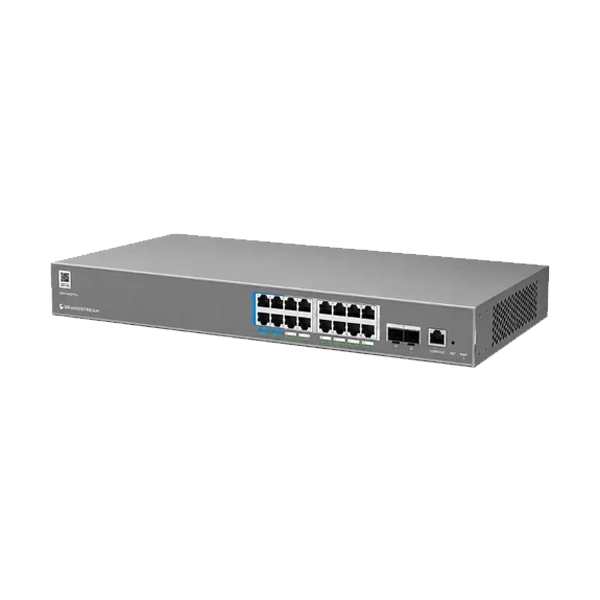

    Grandstream GWN7802P Pro 16-Port PoE++ Switch

    SKU:
    GWN7802P Pro
    Be first to review
    ₹ 36,427 ~ ₹ 23,799 35 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7802P Pro 16-Port PoE++ Switch


    FEATURES

    • The Grandstream GWN7802P Pro is a professional Layer 2++ managed Gigabit PoE++ network switch designed for businesses that need reliable connectivity, strong power delivery, advanced security, and easy network management. It provides 16 Gigabit Ethernet PoE++ ports, allowing businesses to connect computers, IP phones, Wi-Fi access points, security cameras, and other network devices. It also includes 2 SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage systems, or high-speed network infrastructure. With its combination of Gigabit ports, PoE++ power, high-speed uplinks, and advanced management features, the GWN7802P Pro is suitable for offices, schools, hotels, retail stores, warehouses, surveillance installations, and other professional network environments.
    • One of the biggest advantages of the GWN7802P Pro is its PoE++ capability. Power over Ethernet allows compatible devices to receive both electrical power and network data through the same Ethernet cable. This makes installation much easier for devices such as IP phones, Wi-Fi access points, IP cameras, and other PoE-enabled equipment. The GWN7802P Pro provides a substantial 250W total PoE budget and can deliver up to 60W per PoE port, allowing it to power a wide range of compatible devices. Instead of requiring separate power adapters and electrical cables for every device, businesses can use a single Ethernet cable for both power and data. This can reduce cable clutter and provide greater flexibility when installing equipment in locations where power outlets are not conveniently available.
    • The switch provides 16 Gigabit Ethernet ports, giving users fast and dependable wired network connections. These ports can be used for computers, printers, phones, access points, cameras, and other business equipment. The 2 SFP+ uplink ports provide high-speed connections to other network infrastructure. Businesses can use these uplinks to connect the switch to servers, storage systems, core switches, or other high-speed equipment. This can help reduce network bottlenecks and provide additional capacity for demanding applications such as large file transfers, cloud services, video systems, network storage, and data-intensive business applications.
    • The GWN7802P Pro also supports advanced VLAN features, allowing administrators to divide the physical network into separate logical networks. In simple terms, different types of devices can be kept in separate network groups while still using the same physical switch. For example, employee computers can use one VLAN, guest Wi-Fi another, IP phones a Voice VLAN, and security cameras a separate VLAN. This makes the network easier to organize and can improve security by controlling communication between different groups. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN, giving network administrators flexibility when designing the network.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7802P Pro

    Color

    Black

    Product type

    Enterprise Layer 2++ Managed PoE Switch

    Gigabit Ethernet ports

    16 × Gigabit Ethernet

    SFP+ ports

    2 × 10G SFP+

    Total ports

    18

    PoE ports

    16

    PoE standard

    IEEE 802.3af/at/bt

    Maximum PoE per port

    60 W

    Total PoE output

    250 W

    Non-blocking throughput

    36 Gbps

    Switching capacity

    72 Gbps

    Forwarding rate

    53.568 Mpps

    Forwarding mode

    Store-and-forward

    Packet buffer

    8.4 MB

    Network latency

    <4 µs

    MAC address table

    16K

    VLANs

    4K

    VLAN interfaces

    16, with 9216-byte MTU

    ARP/NDP

    64

    Static routes

    32 IPv4 / 32 IPv6

    IGMP Snooping

    IGMPv2/v3, 384 groups

    MLD Snooping

    MLDv1/v2, 384 groups

    Link aggregation

    Up to 8 LAG groups, up to 8 members/LAG

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    ACL

    128 ACLs / 1.5K ACEs

    Jumbo frame

    Up to 12,288 bytes

    QoS

    SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    Security

    802.1X, MAC authentication, RADIUS, TACACS, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    Port loopback detection, BPDU protection, root protection, loopback protection

    Management

    Web GUI, embedded controller, GDMS Networking, GWN Manager, GWN App, GWN Series Routers, CLI

    Management protocols

    SNMP v1/v2c/v3, RMON, Syslog, LLDP/LLDP-MED

    Stacking

    No

    Power supply

    100–240 V AC, 50/60 Hz

    Maximum power consumption

    294.4 W

    External RPS

    1+1 external RPS

    External RPS rating

    460 W

    CPU

    Single-core MIPS interAptive™ 1 GHz

    RAM

    256 MB

    Flash

    8 MB NOR + 128 MB NAND

    Operating temperature

    0°C to 45°C

    Operating humidity

    10%–90% RH, non-condensing

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
