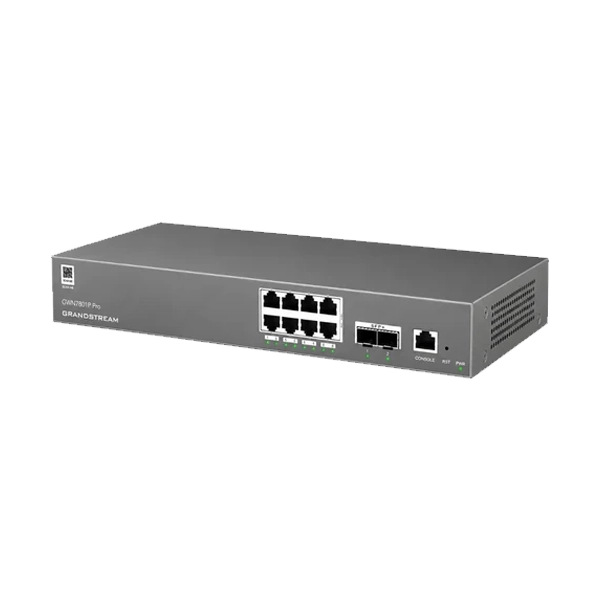

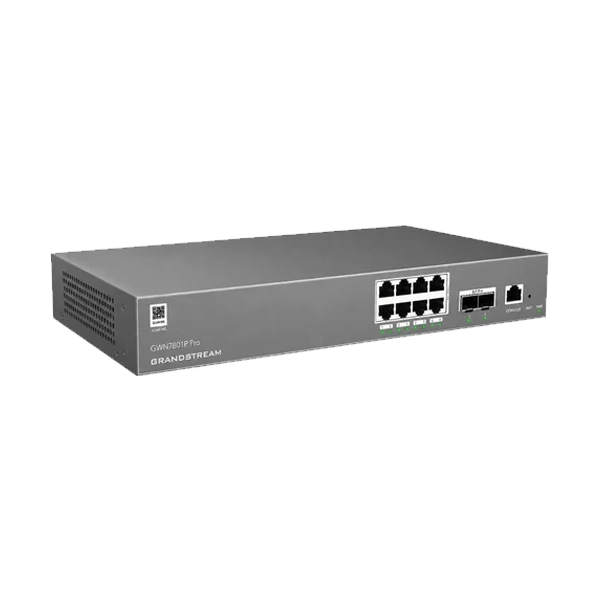

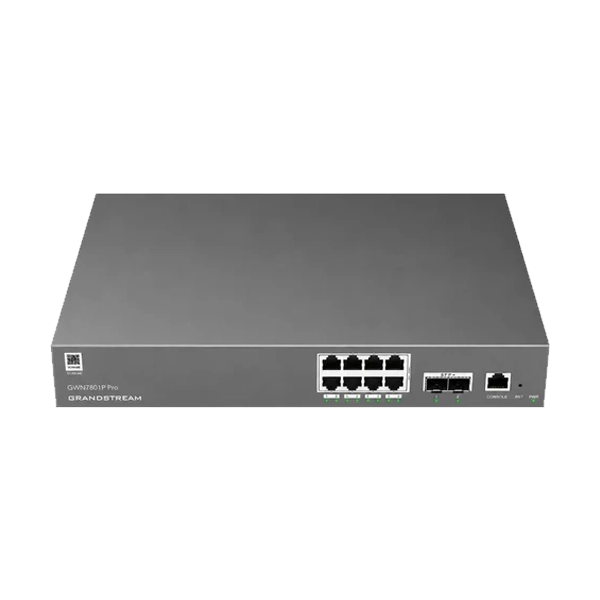

    Grandstream GWN7801P Pro 8-Port PoE Switch

    SKU:
    GWN7801P Pro
    Be first to review
    ₹ 21,559 ~ ₹ 14,599 32 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7801P Pro 8-Port PoE Switch


    FEATURES

    • The Grandstream GWN7801P Pro is a compact and professional Layer 2++ managed Gigabit PoE/PoE+ network switch designed for small and medium-sized businesses that need reliable network connectivity, power delivery, security, and easy management. It provides 8 Gigabit Ethernet ports, giving users enough connections for computers, printers, IP phones, Wi-Fi access points, security cameras, and other network devices. It also includes 2 SFP+ uplink ports, which can be used to connect the switch to other switches, servers, storage equipment, or high-speed network infrastructure. Its combination of Gigabit access ports, PoE capability, high-speed uplinks, and advanced management features makes it a useful solution for offices, retail stores, schools, hotels, small businesses, and professional network installations.
    • One of the most useful features of the GWN7801P Pro is its Power over Ethernet (PoE/PoE+) support. PoE allows compatible network devices to receive both power and network data through the same Ethernet cable. This is particularly useful for IP phones, Wi-Fi access points, IP cameras, and other PoE-enabled equipment. Instead of installing a separate power adapter for every device, businesses can connect compatible equipment directly to the switch using an Ethernet cable. This makes installations cleaner, reduces cable clutter, and provides greater flexibility when devices need to be installed away from convenient electrical outlets.
    • The switch provides 8 Gigabit Ethernet ports, giving connected devices fast and dependable wired network access. These ports can be used for desktop computers, printers, IP phones, wireless access points, cameras, and other business equipment. The 2 SFP+ uplink ports provide faster connections to network infrastructure and can be used to connect the switch to compatible high-speed switches, servers, or storage systems. This is useful when large amounts of data need to travel between connected devices and the main network. High-speed uplinks can also help reduce bottlenecks as the business network grows.
    • The GWN7801P Pro provides advanced VLAN support, which allows network administrators to divide the network into separate logical groups. In simple terms, different types of devices can be placed into separate network sections even though they are connected to the same physical switch. For example, employee computers can be placed on one VLAN, guest users on another, IP phones on a Voice VLAN, and security cameras on another VLAN. This makes the network easier to organize and gives administrators greater control over communication between different devices. The switch supports features such as 802.1Q VLAN tagging, port-based VLAN, MAC-based VLAN, protocol-based VLAN, QinQ, and Voice VLAN.


    SPECIFICATIONS


    Brand

    Grandstream

    Model

    GWN7801P Pro

    Color

    Black

    Product type

    Enterprise Layer 2++ Managed PoE Switch

    Gigabit Ethernet ports

    8 × Gigabit Ethernet

    SFP+ ports

    2 × 10G SFP+

    Total ports

    10

    PoE ports

    8

    PoE standard

    IEEE 802.3af/at/bt

    Maximum PoE per port

    60 W

    Total PoE output

    120 W

    Non-blocking throughput

    26 Gbps

    Switching capacity

    52 Gbps

    Forwarding rate

    38.688 Mpps

    MAC address table

    16K

    VLANs

    4K

    VLAN interfaces

    16, 9216-byte MTU

    ARP/NDP

    64

    Static routes

    32 IPv4 / 32 IPv6

    IGMP Snooping

    Up to 384 groups

    MLD Snooping

    Up to 384 groups

    Link aggregation

    Up to 8 LAG groups, up to 8 members/group

    Spanning Tree

    STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances

    ACL

    128 ACLs / 1.5K ACEs

    Jumbo frame

    Up to 12,288 bytes

    QoS

    SP, WRR, WFQ, SP-WRR, SP-WFQ, traffic shaping, rate limiting

    Security

    802.1X, MAC authentication, RADIUS, TACACS+, ARP Inspection, IP/IPv6 Source Guard, DoS protection, port security

    DHCP security

    DHCP/DHCPv6 Snooping

    Storm control

    Supported

    Port isolation

    Supported

    Loop protection

    BPDU protection, root protection, loopback protection

    Management

    Web GUI, embedded controller, GDMS Networking, GWN Manager, GWN App, GWN Series Routers, CLI

    Management protocols

    SNMP v1/v2c/v3, RMON, Syslog, LLDP/LLDP-MED

    Power supply

    100–240 V AC, 50/60 Hz

    Operating temperature

    0°C to 45°C

    Operating humidity

    10%–90% RH, non-condensing

    Warranty

    3 Year

    Note

    *Price, feature and specifications are subject to change without notice
