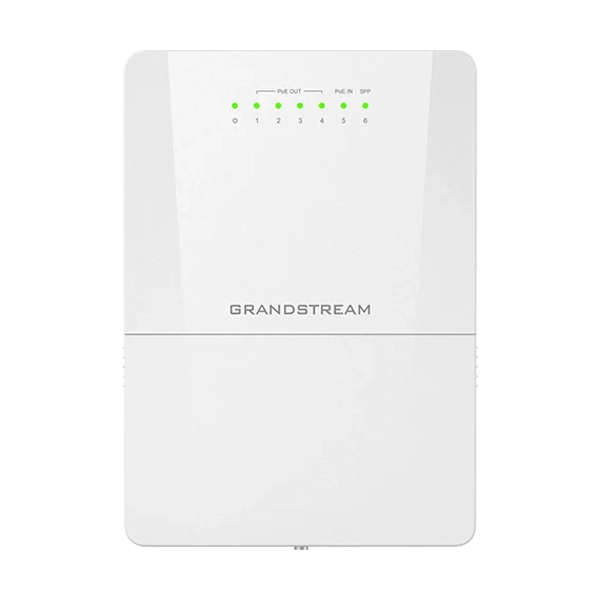

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed Network Switch

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed Network Switch

FEATURES

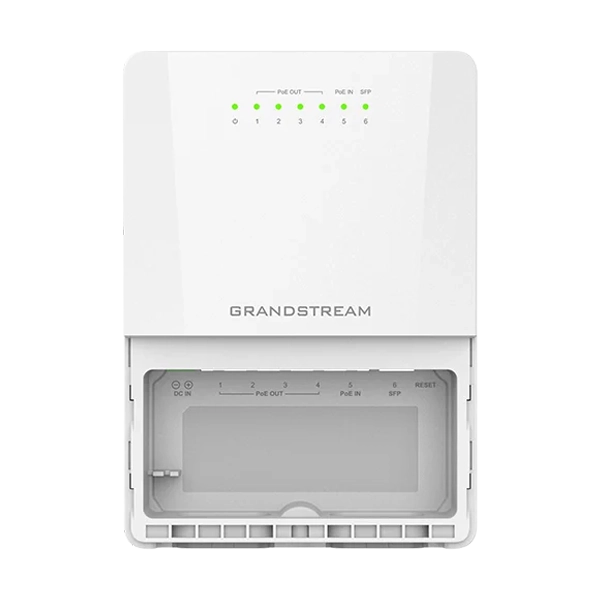

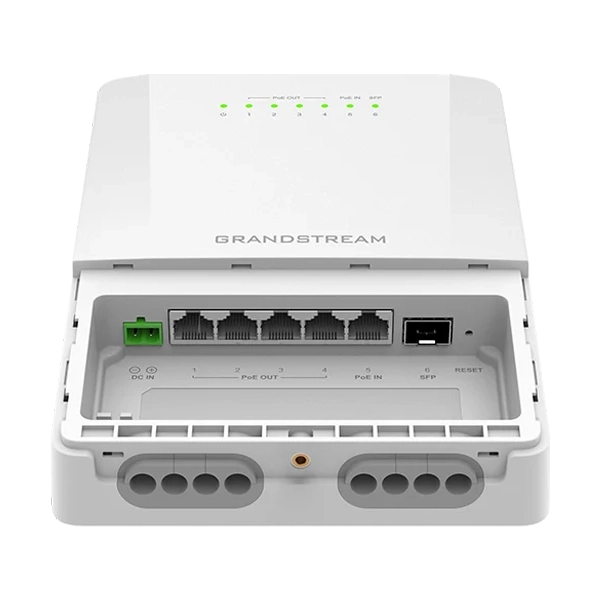

• The Grandstream GWN7710R is a rugged 6-port outdoor Layer 2 Lite managed PoE switch designed for reliable networking in both outdoor and demanding indoor environments. It provides five Gigabit Ethernet ports and one 1G/2.5G SFP port, giving you a flexible way to connect network devices such as IP cameras, Wi-Fi access points, computers, and other Ethernet equipment. Four of the Gigabit ports can provide PoE output, while one port supports PoE input, allowing compatible devices to receive both network connectivity and power through a single Ethernet cable. Depending on the configuration, the switch supports standard PoE/PoE+ and passive 24V or 48V DC PoE output, with up to 60W available on Port 1 and up to 30W on Ports 2–4. It also includes a PoE Watchdog function that can help detect and recover connected devices when a powered device becomes unresponsive.

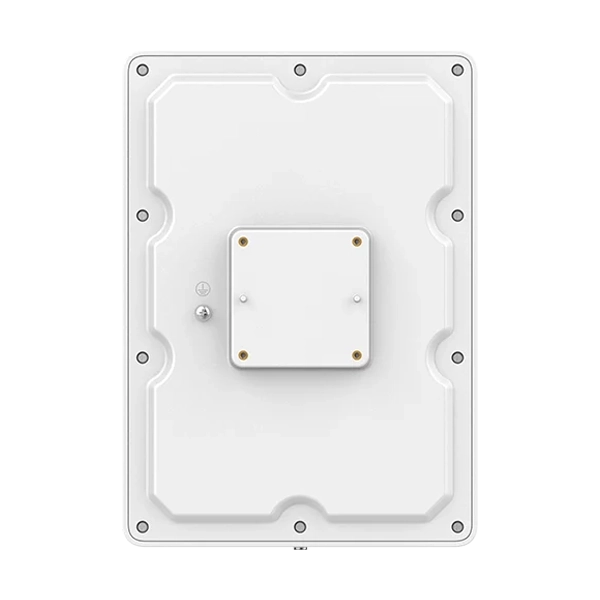

• One of the biggest advantages of the GWN7710R is its IP66-rated waterproof and dustproof enclosure, making it suitable for installations where the equipment may be exposed to rain, dust, snow, or high temperatures. It is designed to operate across a wide temperature range of approximately -40°C to 60°C, making it a practical choice for challenging outdoor locations. The switch can be installed on a wall, pole, or DIN rail, providing flexibility for security systems, campuses, hotels, restaurants, public areas, outdoor Wi-Fi deployments, and other network installations.
• For network management, the GWN7710R offers several convenient options. Administrators can configure and monitor the switch through its local web interface, use GWN Manager for on-premises management, or use GDMS Networking for cloud-based network management. Its Layer 2 Lite features include VLAN support, allowing network traffic to be separated into different logical groups for improved organization and security. It supports port-based VLAN and 802.1Q VLAN configurations, along with features such as DHCP Snooping, MAC address filtering, port VLAN isolation, and access restrictions. These tools can help administrators control network access and reduce unwanted traffic on the network.
• The switch also includes Quality of Service (QoS) features to help prioritize important network traffic. Support for DSCP and 802.1p priority management, bandwidth control, rate limiting, and storm control makes it easier to manage busy networks and give priority to services such as voice, video, and other time-sensitive applications. STP/RSTP support helps maintain network stability by providing faster recovery and redundancy when network paths change. The GWN7710R offers a 15Gbps switching capacity, an 8K MAC address capacity, and support for jumbo frames up to 15K, providing useful performance capabilities for modern business networks.
• The GWN7710R is therefore a strong choice for users who need a durable, manageable, and flexible outdoor network switch with PoE capabilities. Its combination of weather protection, multiple Gigabit ports, 2.5G SFP connectivity, PoE power options, VLAN support, network security features, traffic management, and flexible installation makes it well suited for connecting outdoor access points, surveillance cameras, VoIP equipment, and other network devices.

SPECIFICATIONS
