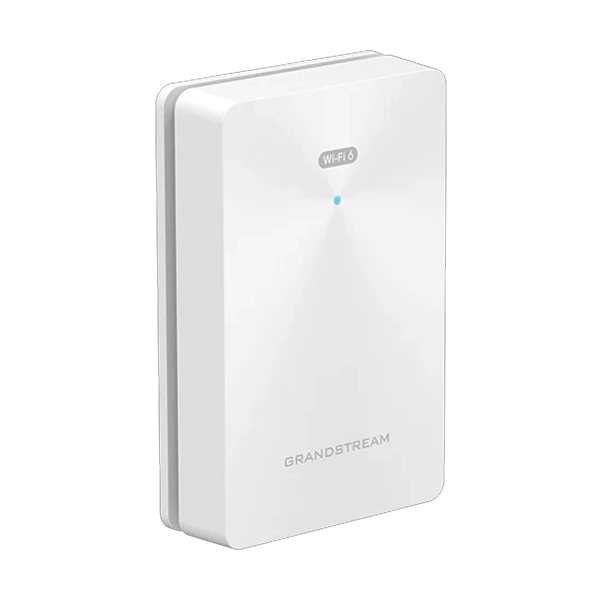

    Grandstream GWN7661E AX3000 WiFi 6 In‑Wall Access Point

    SKU:
    GWN7661E
    Be first to review
    ₹ 12,638 ~ ₹ 8,999 29 OFF
    Earn 89 Gear Coins with this purchase Coins are credited after delivery.
    Log in to view and apply your Gear Coins.
    Save GST upto18% on Business purchase
    Wishlist
    COD Available* | EMI Options Available

    Quantity:
    (2 available)
    Add to cart

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7661E AX3000 WiFi 6 In‑Wall Access Point


    FEATURE

    • The Grandstream GWN7661E AX3000 Wi-Fi 6 In-Wall Access Point is a modern wireless networking solution designed to provide fast, reliable, and secure Wi-Fi connectivity in offices, hotels, apartments, schools, guest rooms, retail spaces, and other indoor environments. Its in-wall design provides a clean and professional installation while helping deliver strong wireless coverage where users need it most.
    • The GWN7661E uses the latest Wi-Fi 6 (802.11ax) technology and offers AX3000 dual-band wireless performance. It operates across the 2.4 GHz and 5 GHz frequency bands, allowing users to connect a wide range of devices while making efficient use of available wireless bandwidth. The 2.4 GHz band is useful for wider coverage, while the 5 GHz band is ideal for compatible devices that require faster speeds.
    • One of the main advantages of this access point is its in-wall form factor. Instead of using a traditional ceiling- or wall-mounted access point, the GWN7661E can be installed directly into the wall, creating a neat and space-saving networking solution. This makes it particularly suitable for hotel rooms, apartments, offices, classrooms, meeting rooms, and other areas where a discreet installation is preferred.
    • The GWN7661E can support up to 256 connected client devices, making it suitable for environments with multiple users and wireless equipment. Smartphones, laptops, tablets, smart TVs, IoT devices, and other Wi-Fi-enabled products can connect to the network for web browsing, video conferencing, cloud applications, streaming, file sharing, and online communication.
    • With up to 3 Gbps of aggregate wireless throughput, the access point provides the performance needed for modern networking applications. Actual wireless speeds will depend on factors such as connected devices, network traffic, distance, interference, and the surrounding environment.
    • Security is also an important part of the GWN7661E. It supports modern wireless security technologies designed to protect network access and connected users. Administrators can configure separate networks for employees, guests, and other users, helping improve network organization and access control.
    • The GWN7661E can also be managed through Grandstream's networking management solutions, allowing administrators to configure, monitor, and maintain multiple compatible access points more efficiently. This is useful for businesses and organizations with larger wireless deployments.
    • Overall, the Grandstream GWN7661E AX3000 Wi-Fi 6 In-Wall Access Point combines fast Wi-Fi 6 performance, high client capacity, dual-band connectivity, a space-saving design, strong security, and convenient network management. It is a practical choice for businesses and property owners looking for reliable Wi-Fi in a clean, professional in-wall format.

    SPECIFICATION

    Brand

    Grandstream

    Model

    GWN7661E

    Color

    White

    Wi-Fi Standards

    IEEE 802.11 a/b/g/n/ac/ax

    Antennas

    2 × dual‑band internal antennas 1 × dedicated 5GHz internal antenna

    Antenna Gain

    Antenna 1: 2.4GHz: 3.0 dBi, 5GHz: 5.0 dBi Antenna 2: 2.4GHz: 2.5 dBi, 5GHz: 4.5 dBi Dedicated 5GHz antenna: 4.5 dBi

    Wi-Fi Data Rates

    5GHz 802.11ax: 7.3 – 2402 Mbps 802.11ac: 6.5 – 1732 Mbps 802.11n: 6.5 – 300 Mbps 802.11a: 6 – 54 Mbps2.4GHz 802.11ax: 7.3 – 573.5 Mbps 802.11n: 6.5 – 300 Mbps 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

    Frequency Bands

    2.4GHz: 2412 – 2483.5 MHz 5GHz: 5150 – 5895 MHz (availability may vary by region)

    Channel Bandwidth

    2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 / 160 MHz

    Wi-Fi & Security

    WEP, WPA/WPA2‑PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Anti‑hacking secure boot, digital signature lockdown, security certificate, random default password

    MIMO Technology

    2×2:2 (2.4GHz) 3×3:2 (5GHz MU-MIMO)

    Coverage Range

    Up to 100 meters (varies by environment)

    Maximum TX Power

    2.4GHz: 24 dBm 5GHz: 26 dBm (varies by country/frequency)

    Receiver Sensitivity (2.4GHz)

    802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ax 20MHz: -60 dBm @MCS11 802.11ax 40MHz: -58 dBm @MCS11

    Receiver Sensitivity (5GHz)

    802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ac 20MHz: -67 dBm @MCS8 802.11ac 40MHz: -63 dBm @MCS9 802.11ac 80MHz: -59 dBm @MCS9 802.11ax 20MHz: -60 dBm @MCS11 802.11ax 40MHz: -58 dBm @MCS11 802.11ax 80MHz: -56 dBm @MCS11 802.11ax 160MHz: -52 dBm @MCS11

    SSIDs

    32 total (16 per radio: 2.4GHz & 5GHz)

    Concurrent Clients

    256

    Network Interfaces

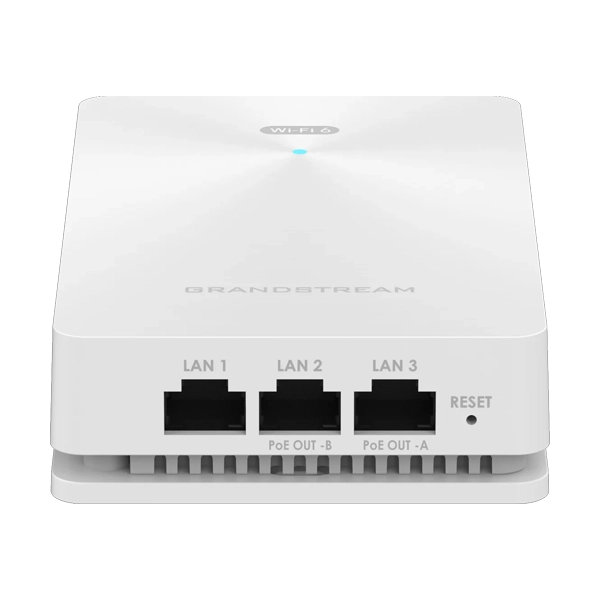

    1 × 10/100/1000M uplink port with PoE/PoE+ 2 × 10/100/1000M Ethernet ports with PSE 1 × 10/100/1000M auxiliary Ethernet port

    Auxiliary Ports

    1 × Reset pinhole 1 × Kensington lock

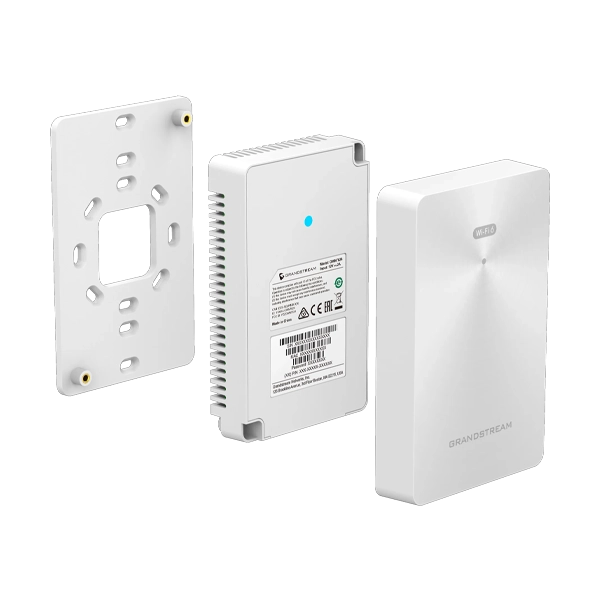

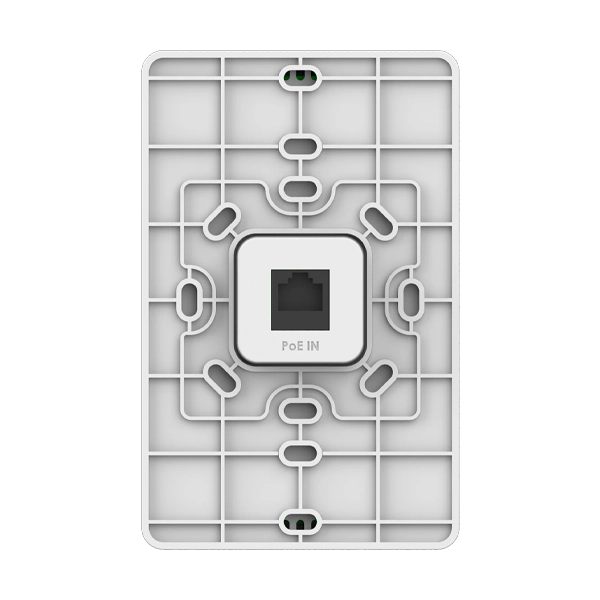

    Mounting Options

    In‑wall mountable

    LEDs

    1 × tri‑color LED (device tracking & status indication)

    Network Protocols

    IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

    QoS Features

    802.11e/WMM, VLAN, TOS

    Network Management

    Embedded Controller (manage up to 50 APs) GDMS Cloud (unlimited devices, free) GWN Manager (on‑premise, up to 3,000 APs)

    Power & Efficiency

    Supports 802.3az PoE 802.3af / 802.3at PSE power budget: up to 12W Max Power Consumption: 25W

    Environmental Conditions

    Operating: 0°C – 45°C Storage: -30°C – 60°C Humidity: 5% – 95% (non‑condensing)

    Physical Dimensions

    Unit: 135 × 86 × 38.5 mm, 241 g Package: 176 × 118.5 × 65 mm, 361 g

    Package Contents

    GWN7661E Wi‑Fi 6 In‑Wall AP, Mounting Kits, Quick Installation Guide

    Compliance

    FCC, CE, RCM, IC

    Warranty

    3 Year

    Note

    *Features, Price and Specifications are subject to change without notice.
