Grandstream GWN7660ELR WiFi 6 Long-Range Access Point

No reviews yet |Write a review
SKU: GWN7660ELR  |  Brand: Grandstream
₹ 11,899 ₹ 17,098 30% OFF ● Out of Stock
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Secure Payments
100% Genuine
Fast Delivery
Expert Support

Grandstream GWN7660ELR WiFi 6 Long-Range Access Point


FEATURE

  • The Grandstream GWN7660ELR Wi-Fi 6 Long-Range Access Point is a professional wireless networking solution designed to provide fast, reliable, and extended Wi-Fi coverage in demanding indoor and outdoor environments. It is a suitable choice for businesses, hotels, schools, warehouses, campuses, restaurants, resorts, and other locations where dependable wireless connectivity is required across larger areas.
  • The GWN7660ELR uses the latest Wi-Fi 6 (802.11ax) technology, helping deliver improved wireless efficiency, capacity, and performance compared with older Wi-Fi standards. Its dual-band design supports both 2.4 GHz and 5 GHz frequencies, giving network administrators greater flexibility when connecting different types of devices. The 2.4 GHz band is useful for wider coverage, while the 5 GHz band can provide faster speeds for compatible devices.
  • As a long-range access point, the GWN7660ELR is designed to extend wireless connectivity over larger areas. This makes it useful for locations where standard indoor access points may not provide sufficient coverage. It can help deliver Wi-Fi across outdoor seating areas, courtyards, parking spaces, warehouses, campuses, gardens, and other large commercial spaces.
  • The access point supports 2×2:2 MU-MIMO technology, allowing it to communicate efficiently with multiple compatible wireless devices. This is especially useful in environments where many users are connected at the same time. Employees, customers, students, and guests can connect smartphones, laptops, tablets, IoT devices, and other wireless equipment for browsing, cloud applications, video conferencing, streaming, and online communication.
  • The GWN7660ELR is built with weather-resistant protection, making it suitable for outdoor installations and environments where the access point may be exposed to dust, moisture, and changing weather conditions. This durable construction helps make it a dependable option for professional outdoor networking.
  • Security and network management are also important features. Administrators can configure wireless access, manage users, and apply network policies to help maintain a secure and organized network. Grandstream's management solutions also make it easier to configure and monitor multiple compatible access points from a centralized platform.
  • The GWN7660ELR can be integrated with existing wired network infrastructure and is designed for professional deployments where reliable wireless coverage is important. It is particularly useful for organizations that need to expand Wi-Fi beyond traditional indoor areas.
  • Overall, the Grandstream GWN7660ELR Wi-Fi 6 Long-Range Access Point offers a strong combination of modern Wi-Fi 6 technology, extended coverage, dual-band connectivity, MU-MIMO performance, outdoor-ready construction, and professional management capabilities. It is a practical choice for businesses and organizations looking for stable and scalable wireless connectivity across large areas.

SPECIFICATION

Brand

Grandstream

Model

GWN7660ELR

Color

White

Wi-Fi Standards

IEEE 802.11 b/g/n/ac/ax (Wi‑Fi 6)

Antennas

5 × individual internal antennas (2 × 2.4GHz, 2 × 5GHz, 1 × Bluetooth)

Antenna Gain

2.4GHz: 5.5 dBi (×2) 5GHz: 6.0 dBi (×2) Bluetooth: 4.5 dBi

Wi-Fi Data Rates

5GHz 802.11ax: 7.3 – 2403 Mbps 802.11ac: 6.5 – 1734 Mbps 802.11n: 6.5 – 300 Mbps 802.11a: 6 – 54 Mbps2.4GHz 802.11ax: 7.3 – 573.5 Mbps 802.11n: 6.5 – 300 Mbps 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

Frequency Bands

2.4GHz: 2400 – 2483.5 MHz 5GHz: 5150 – 5850 MHz (regional restrictions apply)

Channel Bandwidth

2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 / 160 MHz

System Security

WPA/WPA2‑PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Secure boot, digital signature lockdown, unique certificate, random default password

MIMO Technology

2×2:2 (2.4GHz) 2×2:2 (5GHz)

Coverage Range

Up to 300 meters (varies by environment)

Maximum TX Power

2.4GHz: 27 dBm 5GHz: 26 dBm (varies by country/frequency)

Receiver Sensitivity (2.4GHz)

802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ax 20MHz: -60 dBm @MCS11 802.11ax 40MHz: -58 dBm @MCS11

Receiver Sensitivity (5GHz)

802.11a: -90 dBm @6 Mbps, -72 dBm @54 Mbps 802.11n 20MHz: -71 dBm @MCS7 802.11n 40MHz: -68 dBm @MCS7 802.11ac 20MHz: -65 dBm @MCS8 802.11ac 40MHz: -61 dBm @MCS9 802.11ac 80MHz: -57 dBm @MCS9 802.11ac 160MHz: -55 dBm @MCS9 802.11ax 20MHz: -58 dBm @MCS11 802.11ax 40MHz: -56 dBm @MCS11 802.11ax 80MHz: -54 dBm @MCS11 802.11ax 160MHz: -51 dBm @MCS11

SSIDs

32 total (16 per radio: 2.4GHz & 5GHz)

Maximum Connected Devices

256

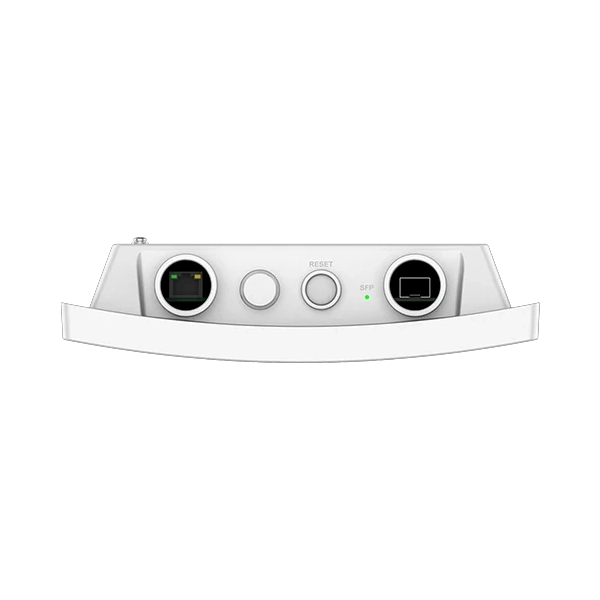

Network Interfaces

1 × 1G RJ45 port 1 × 2.5G SFP uplink port

Auxiliary Ports

1 × Reset button

Bluetooth®

BLE 5.2

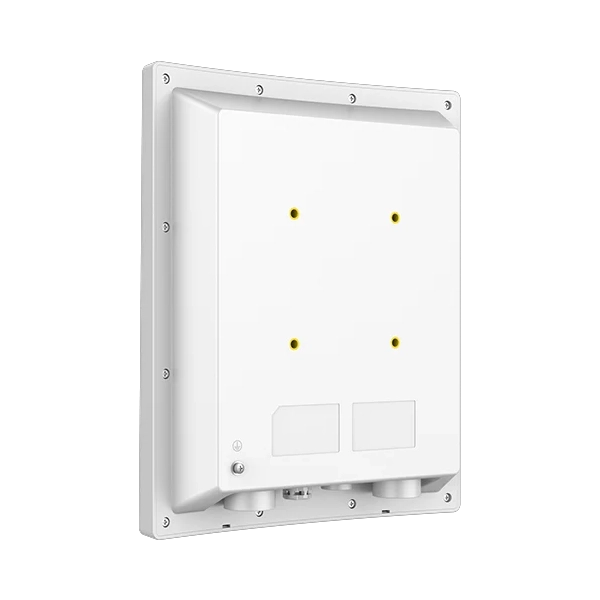

Mounting Options

Wall mount or pole mount (kits included, adjustable/rotatable up to 60°)

LEDs

1 × tri‑color LED (device tracking & status indication) 1 × single‑color LED (SFP status)

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS Features

802.11e/WMM, VLAN, TOS

Network Management

Embedded Controller (up to 50 APs) GWN.Cloud (free, unlimited APs) GWN Manager (on‑premise, up to 3,000 APs)

Power & Efficiency

PoE 802.3af/802.3at Max Power Consumption: 13W

Environmental Conditions

Operating: -30°C – 60°C Storage: -30°C – 70°C Humidity: 5% – 95% (non‑condensing)

Physical Dimensions

Unit: 270 × 230 × 57 mm Unit (with brackets): 1 kg Package: 439 × 329 × 137 mm, 2.4 kg

Package Contents

GWN7660ELR AP, Mounting Kits, Quick Installation Guide

Weatherproofing

IP67 weatherproof rating

Compliance

FCC, CE, RCM, IC

Warranty

3 Year

Note

*Features, Price and Specifications are subject to change without notice.
