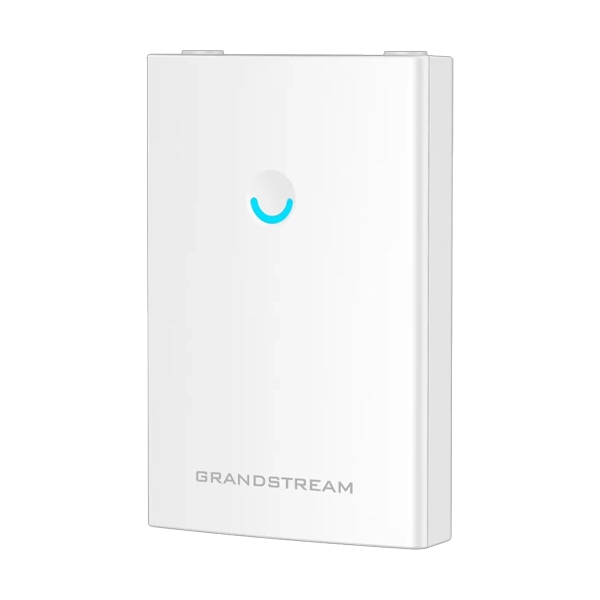

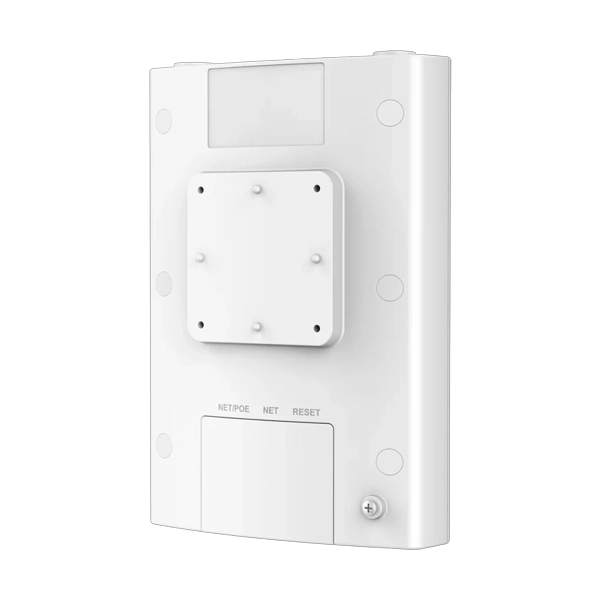

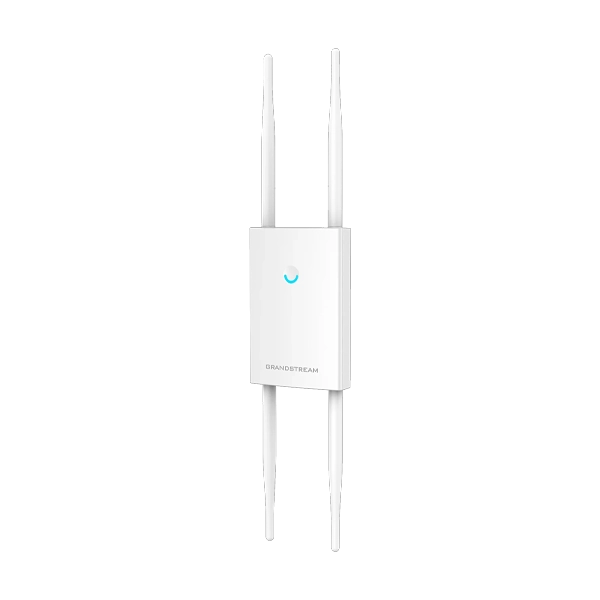

    Grandstream GWN7630LR Outdoor Long-Range WiFi Access Point

    SKU:
    GWN7630LR
    Be first to review
    ₹ 23,343 ~ ₹ 12,399 47 OFF
    Earn 100 Gear Coins with this purchase Coins are credited after delivery.
    Log in to view and apply your Gear Coins.
    Save GST upto18% on Business purchase
    Wishlist
    COD Available* | EMI Options Available

    Quantity:
    (2 available)
    Add to cart

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Grandstream GWN7630LR Outdoor Long-Range WiFi Access Point


    FEATURE

    • The Grandstream GWN7630LR Outdoor Long-Range Wi-Fi Access Point is a powerful wireless networking solution designed to provide reliable and extended Wi-Fi coverage in outdoor and challenging environments. It is well suited for businesses, hotels, schools, warehouses, campuses, resorts, restaurants, outdoor workspaces, and other locations where dependable wireless connectivity is required across larger areas.
    • The GWN7630LR uses 802.11ac Wave-2 Wi-Fi technology and supports dual-band wireless connectivity across the 2.4 GHz and 5 GHz frequency ranges. This allows users to connect a wide variety of wireless devices while making better use of available wireless bandwidth. The 2.4 GHz band is useful for wider coverage, while the 5 GHz band can provide faster performance for compatible devices.
    • One of the main advantages of this access point is its long-range wireless coverage. The GWN7630LR is designed to provide Wi-Fi coverage across large outdoor areas, helping businesses extend their network beyond indoor spaces. It can be useful for connecting users in courtyards, gardens, parking areas, outdoor seating spaces, campuses, warehouses, and large commercial properties.
    • The access point supports 4×4:4 MU-MIMO technology, allowing it to communicate with multiple compatible wireless devices more efficiently. This makes it particularly useful in busy environments where many users may be connected simultaneously. It can support everyday applications such as web browsing, cloud services, video conferencing, online communication, file sharing, and streaming.
    • The GWN7630LR is built for outdoor deployment and is designed to withstand environmental exposure. Its rugged construction makes it suitable for installations where equipment may encounter changing weather conditions. When correctly installed, it provides a dependable way to extend wireless connectivity into outdoor areas.
    • For network administrators, Grandstream offers centralized management options that simplify the configuration, monitoring, and maintenance of compatible access points. This can be especially helpful for organizations managing multiple wireless access points across a large property or several locations.
    • The GWN7630LR can also be integrated into existing wired network infrastructure, providing a flexible combination of wired backhaul and wireless access. Its professional features make it suitable for commercial and enterprise networking requirements.
    • Overall, the Grandstream GWN7630LR Outdoor Long-Range Wi-Fi Access Point provides a strong combination of extended coverage, dual-band Wi-Fi, MU-MIMO technology, outdoor-ready construction, and professional network management. It is a practical choice for organizations that need stable wireless connectivity across large outdoor areas while maintaining reliable network performance and centralized control.

    SPECIFICATION

    Brand

    Grandstream

    Model

    GWN7630LR

    Color

    White

    Wi-Fi Standards

    IEEE 802.11a/b/g/n/ac (Wave-2)

    Antennas

    4 × detachable/changeable dual-band omnidirectional antennas

    Antenna Gain

    2.4GHz: 3.5 dBi 5GHz: 3.5 dBi

    Wi-Fi Data Rates

    5GHz 802.11ac: 6.5 – 1733 Mbps 802.11n: 6.5 – 600 Mbps 802.11a: 6 – 54 Mbps2.4GHz 802.11n: 6.5 – 300 Mbps (up to 800 Mbps with 256-QAM) 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

    Frequency Bands

    2.4GHz: 2412 – 2484 MHz 5GHz: 5150 – 5250 MHz, 5250 – 5350 MHz, 5470 – 5725 MHz, 5725 – 5850 MHz (availability may vary by region)

    Channel Bandwidth

    2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 MHz

    System Security

    WEP, WPA/WPA2‑PSK, WPA/WPA2 Enterprise Anti‑hacking secure boot, digital signature lockdown, unique certificate, random default password

    MIMO Technology

    4×4:4 (2.4GHz MIMO) 4×4:4 (5GHz MU‑MIMO)

    Coverage Range

    Up to 300 meters (may vary by environment)

    Maximum TX Power

    2.4GHz: 27 dBm 5GHz: 25 dBm (varies by country/frequency)

    Receiver Sensitivity (2.4GHz)

    802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7

    Receiver Sensitivity (5GHz)

    802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps 802.11ac 20MHz: -67 dBm @MCS8 802.11ac 40MHz: -63 dBm @MCS9 802.11ac 80MHz: -59 dBm @MCS9

    SSIDs

    16 per radio

    Concurrent Clients

    250+

    Network Interfaces

    2 × auto‑sensing 10/100/1000 Base‑T Ethernet ports

    Auxiliary Ports

    1 × Reset pinhole

    Mounting Options

    Wall mount or pole mount (kits included)

    LEDs

    1 × tri‑color LED (device tracking & status indication)

    Network Protocols

    IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

    QoS Features

    802.11e/WMM, VLAN, TOS

    Network Management

    Embedded Controller (up to 50 local APs) GWN.Cloud (free, unlimited APs) GWN.Manager (on‑premise, up to 3,000 APs, coming soon)

    Power & Efficiency

    PoE 802.3at Max Consumption: 16.5W

    Environmental Conditions

    Operating: -30°C – 60°C Storage: -30°C – 70°C Humidity: 5% – 95% (non‑condensing)

    Physical Dimensions

    Unit: 533.1 × 115 × 40 mm, 564 g With Mount Kits: 533.1 × 115 × 62 mm, 706 g Package: 258 × 247 × 86 mm, 978 g

    Package Contents

    GWN7630LR Wireless AP, Mounting Kits, Quick Start Guide

    Weatherproofing

    IP66 weatherproof (when installed vertically)

    Compliance

    FCC, CE, RCM, IC

    Warranty

    3 Year

    Note

    *Features, Price and Specifications are subject to change without notice.
