Brand | Grandstream |
Model | GWN7302 |
Color | White |
Product Type | 5GHz Wi-Fi 6 Outdoor PtP/PtMP Fixed Wireless Bridge |
Antenna | 2 × Single Internal Antennas |
Antenna Frequency | 5GHz × 2 |
Antenna Gain | 13.5 dBi |
Beamwidth | 5GHz: H: 30°, V: 30° |
MIMO | 5GHz: 2×2:2 MIMO |
Frequency Band | 5GHz Radio: 5150–5850 MHz* |
Channel Bandwidth | 5GHz: 20, 40, 80 and 160 MHz (×2) |
Wi-Fi Standards | IEEE 802.11 a/n/ac/ax |
Wi-Fi 6 Data Rate | IEEE 802.11ax: 7.3 Mbps to 2402 Mbps |
802.11ac Data Rate | 6.5 Mbps to 1732 Mbps |
802.11n Data Rate | 6.5 Mbps to 300 Mbps |
802.11a Data Rate | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Maximum TX Power | 5GHz: 26 dBm* |
Receiver Sensitivity – 802.11a | -92 dBm @ 6 Mbps; -74 dBm @ 54 Mbps |
Coverage Range | Up to 5 km* |
Point-to-Multipoint | 1 to 4 |

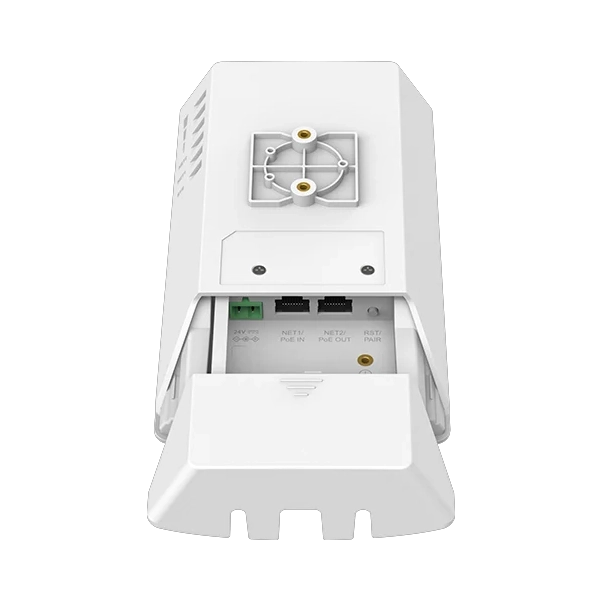

Network Ports | 1 × Auto-sensing 10/100/1000 Base-T Ethernet, RJ-45, PoE Input; 1 × Auto-sensing 10/100/1000 Base-T Ethernet, RJ-45, PoE Output |
LED Indicators | 1 × Tri-color LED for device tracking/status; 3 × LEDs for signal strength; 2 × LEDs for network port status |
Auxiliary Port | 1 × Reset and Pairing Button |
PoE Input | 802.3af/at, DC +24V; compatible with 16V–48V |
PoE Output | PSE output: Max. 13W with PoE+ input; Max. 25W with +24V DC/2A input |
Maximum Power Consumption | 13W |
Dimensions – Unit | 180 × 102 × 38 mm |
Dimensions – Unit (cm) | 18 × 10.2 × 3.8 cm |
Package Dimensions | 219 × 185.5 × 66 mm |
Package Dimensions (cm) | 21.9 × 18.55 × 6.6 cm |
Unit Weight | 412 g |
Package Weight | 753 g |
Mounting | Wall Mount or Pole Mount |
Mounting Accessories | Mounting Kits Included |
Package Contents | GWN7302 PtP/PtMP Fixed Wireless Bridge, Mounting Kits, Quick Start Guide |
Operating Temperature | -30°C to 60°C |
Storage Temperature | -30°C to 70°C |
Humidity | 5% to 95%, Non-condensing |
Weatherproof Rating | IP66-level Weatherproof Capability |
Compliance | FCC, CE, RCM, IC |
SSID | Single 5GHz SSID, Disabled |
Channel Selection | Automatic Channel Support |
Transmit Power | Transmit Power Selection Supported |
Management Wi-Fi | Supported |
TDMA | Supported |
Pairing | One-Key Pairing and Web Pairing |
Network Configuration | Static IP or DHCP IPv4 |
VLAN | Supported |
Security | WPA2-PSK, WPA3-PSK |
System Tools | Link Test, Antenna Alignment, Spectrum Analyzer |
QoS | 802.11e/WMM, 802.1p, 802.1q, ToS |
Local Management | Local Web Interface |
Cloud Management | GDMS Networking via SSH Tunneling |
Network Management | GWN Manager, GWN App |
Management Protocols | TR-069, SNMP |
Warranty | 1 Year |
Note | *Features, Price and Specifications are subject to change without notice. |
