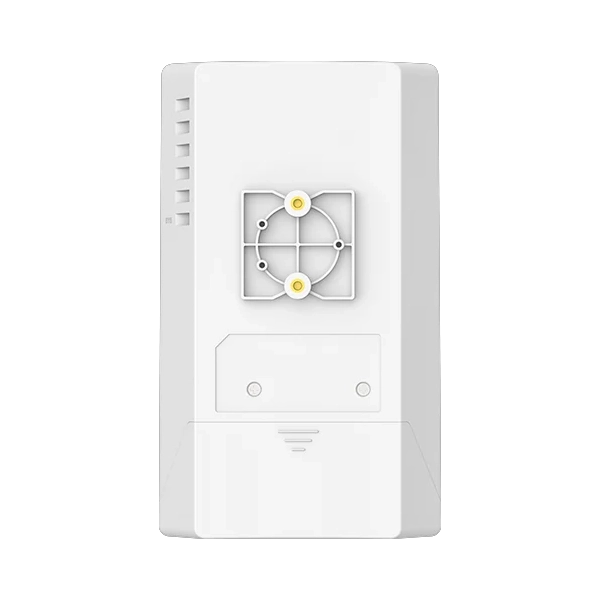

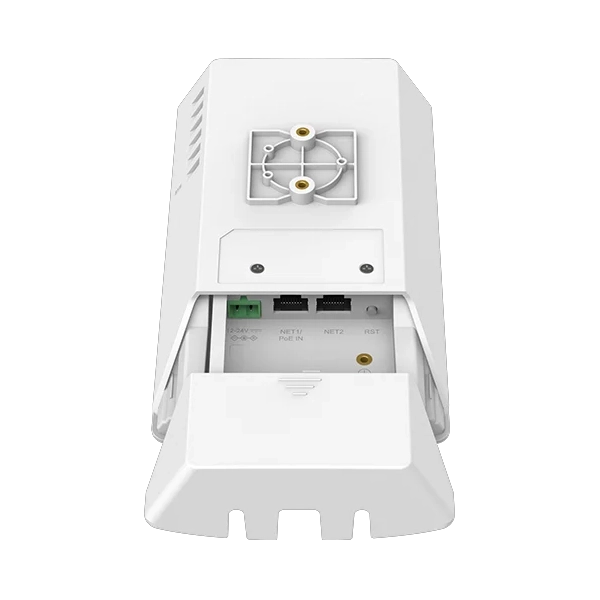

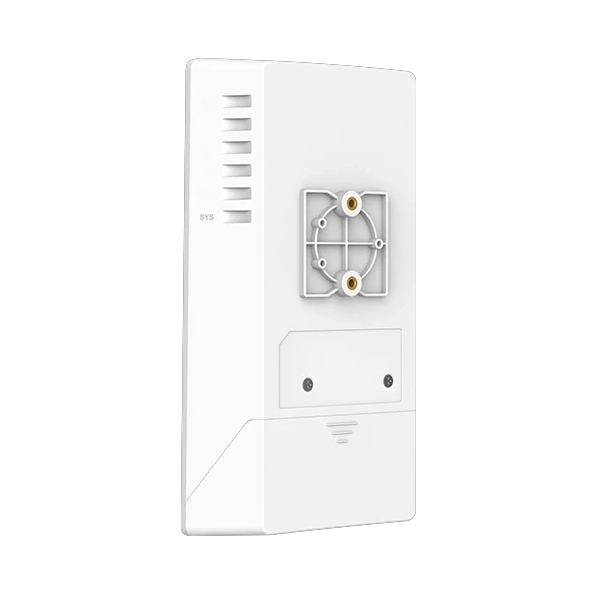

Grandstream GWN7605CLR Outdoor WiFi Access Point Dual Band

Brand

Grandstream

Model

GWN7605LR

Color

White

Product Type

Outdoor Dual-Band Wi-Fi Access Point

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac (Wave-2)

SSIDs

16 SSIDs total; 8 per radio (2.4GHz & 5GHz)

Concurrent Clients

100+

Beamforming

Supported

OFDM

Supported

256-QAM

Supported

Target Wake Time (TWT)

Supported

MRC

Maximal Ratio Combining

STBC

Space-Time Block Coding

LDPC

Low-Density Parity-Check

DFS

802.11 Dynamic Frequency Selection

BSS Coloring

Supported

SSID Hidden

Supported

Port Aggregation

Multiple uplink ports for increased uplink bandwidth

Multicast/Broadcast Suppression

Multicast/Broadcast optimization with ARP Proxy

Multicast Enhancement

Converts multicast data into unicast data for transmission

Bandwidth Limiting

SSID, Client, MAC and IP-based rate limiting

Band/Client Steering

Guides clients to the frequency band with more available spectrum

RRM

Dynamic radio power and channel assignment

VPN

L2TPv3

VLAN

Interface/SSID/MAC binding, VLAN-based management VLAN, Dynamic VLAN

Time Policy

Controls client Wi-Fi connection time and reconnection type after timeout

Schedule

SSID, LED and Reboot schedules

WLAN Extension Bridge

Supported

Mesh

2.4GHz, 5GHz, 2.4GHz & 5GHz

Hotspot 2.0

Supported

Wireless Roaming

802.11k, 802.11v, 802.11r, Layer 2 roaming

IPv4

Static or DHCP

IPv6

Static or DHCP

DHCP

Server, Client and Relay

NAT

NAT Pool

LLDP

Link Layer Discovery Protocol

User Authentication

802.1X authentication, MAC authentication

MAC Authentication

Client MAC address can be used as username/password through RADIUS

PPSK

PPSK with or without RADIUS

Captive Portal

RADIUS, Social Login, Vouchers, Password, SAML SSO, Active Directory

Security Encryption

Open System, OSEN, WPA2-PSK, WPA2-802.1X, WPA3-SAE, WPA3-802.1X, WPA/WPA2, WPA2/WPA3

Anti-Hacking Security

Secure boot, digital signatures, unique security certificate and random default password per device

Forwarding Security

MAC Filtering, Client Isolation, OS Filtering

WIDS

Supported

Traffic Rules

Inbound and outbound traffic rules

Rogue AP Protection

Rogue AP detection and containment

ARP Protection

ARP attack defence

ND Protection

ND attack defence

QoS

802.11e/WMM, 802.1p, 802.1q, ToS

Local Management

Local Web Interface

Embedded Controller

Manages up to 50 local GWN APs

GDMS Networking

Free cloud management platform for unlimited GWN APs

GWN Manager

Premise-based controller for up to 3,000 GWN APs

GWN App

Integrates GDMS Networking and GWN Manager for AP management

Management Protocols

TR-069, SNMP

Antennas

2 × Dual-Band Internal Antennas

Antenna Gain – 2.4GHz

4.0 dBi

Antenna Gain – 5GHz

4.0 dBi

MIMO – 2.4GHz

2×2:2

MIMO – 5GHz

2×2:2 MU-MIMO

2.4GHz Frequency

2400–2483.5 MHz

5GHz Frequency

5150–5850 MHz*

Channel Bandwidth – 2.4GHz

20 and 40 MHz

Channel Bandwidth – 5GHz

20, 40 and 80 MHz

802.11ac Data Rate

6.5 Mbps to 867 Mbps

802.11a Data Rate

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n Data Rate

6.5 Mbps to 300 Mbps; up to 400 Mbps with 256-QAM on 2.4GHz

802.11b Data Rate

1, 2, 5.5, 11 Mbps

802.11g Data Rate

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum TX Power – 2.4GHz

24 dBm*

Maximum TX Power – 5GHz

22 dBm*

Coverage Range

Up to 150 meters*

Network Port

1 × Auto-sensing 10/100/1000 Base-T Ethernet, RJ-45, PoE Input

LED

1 × Tri-color LED for device tracking and status indication

Auxiliary Port

1 × Reset Pinhole

PoE Input

802.3af/at

DC Power

Phoenix Connector, 12V–24V

Maximum Power Consumption

10W

Product Dimensions

180 × 107 × 45 mm

Product Dimensions in cm

18 × 10.7 × 4.5 cm

Package Dimensions

219 × 185.5 × 66 mm

Product Weight

368 g

Mounting

Outdoor metal bar mount or wall mount

Mounting Kits

Included

Operating Temperature

-30°C to 60°C

Storage Temperature

-30°C to 70°C

Humidity

5% to 95%, non-condensing

Weatherproof Rating

IP66-level weatherproof capability

Compliance

FCC, CE, RCM, IC

Warranty

3 Year

Note

*Features, Price and Specifications are subject to change without notice.
