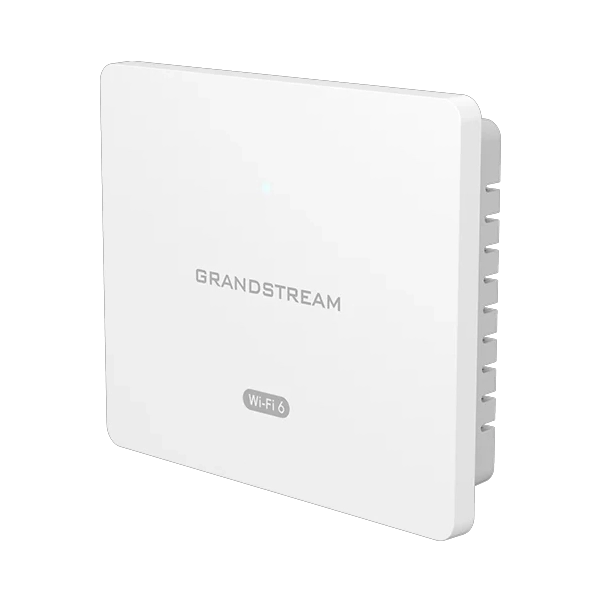

Grandstream GWN7604 WiFi 6 Indoor Access Point AX3000 Dual-Band Router

Name: Grandstream GWN7604 WiFi 6 Indoor Access Point AX3000 Dual-Band Router
Brand: Grandstream
SKU: GWN7604
Price: 7999.0 INR
Availability: InStock

SKU:

GWN7604

Be first to review

₹ 10,259 ~ ₹ 7,999 22 OFF

Earn 79 Gear Coins with this purchase Coins are credited after delivery.

Save GST upto18% on Business purchase

Wishlist

COD Available* | EMI Options Available

Enter Delivery Pincode:

Quantity:

(2 available)

Shop with confidence

🔒 Secure & Safe Payments

✅ 100% Genuine Products

🎧 Trusted Customer Support

🚚 Reliable Delivery

Grandstream GWN7604 WiFi 6 Indoor Access Point AX3000 Dual-Band Router

FEATURE

The Grandstream GWN7604 Wi-Fi 6 Indoor Access Point AX3000 Dual-Band Router is a modern wireless networking solution designed to provide fast, reliable, and secure Wi-Fi connectivity for homes, offices, small businesses, retail spaces, schools, and other indoor environments. With Wi-Fi 6 technology, dual-band wireless performance, and Gigabit networking, it is built to handle multiple connected devices while maintaining a smooth and dependable connection.
The GWN7604 supports the latest Wi-Fi 6 (802.11ax) standard, which is designed to improve wireless efficiency and performance in busy network environments. This makes the access point suitable for users who regularly connect laptops, smartphones, tablets, smart devices, IP phones, and other wireless equipment. It can support activities such as video conferencing, online meetings, cloud applications, web browsing, streaming, and file sharing.
With AX3000 dual-band wireless technology, the device operates on both the 2.4 GHz and 5 GHz frequency bands. The 2.4 GHz band is useful for devices that need wider coverage, while the 5 GHz band provides higher wireless performance for compatible devices. Using both bands allows users to connect different types of devices according to their speed and coverage requirements.
The GWN7604 also provides Gigabit Ethernet connectivity, allowing it to connect to a wired network and deliver fast data transfer to connected devices. Its networking capabilities make it suitable for professional installations where stable wired infrastructure and reliable wireless access are important.
Security is another important feature of this access point. It includes wireless security options and network management features designed to help administrators control access and protect connected users and devices. This makes it a practical choice for businesses that need to provide Wi-Fi access while maintaining better control over their network environment.
For organizations with multiple access points, Grandstream's management ecosystem can simplify configuration and monitoring. Administrators can manage compatible networking devices centrally, helping reduce the time and effort required to maintain a wireless network.
The GWN7604 is designed for indoor deployment and can be used in a variety of locations, including offices, meeting rooms, classrooms, reception areas, shops, and hospitality environments. Its modern design allows it to blend easily into professional indoor installations.
Overall, the Grandstream GWN7604 Wi-Fi 6 Indoor Access Point AX3000 Dual-Band Router offers a strong combination of modern wireless technology, fast connectivity, network security, and convenient management. It is a suitable solution for users looking to upgrade an existing wireless network or build a new Wi-Fi 6 network that can support multiple devices and demanding everyday applications.

SPECIFICATION

Brand

Grandstream

Model

GWN7604

Color

White

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac/ax

Antennas

2 × dual-band internal antennas, 1 × 5G internal antenna

Antenna Gain

Antenna 1: 2.4GHz: 3.0 dBi, 5GHz: 3.5 dBi Antenna 2: 2.4GHz: 3.5 dBi, 5GHz: 3.0 dBi 5G Antenna: 4.5 dBi

Wi-Fi Data Rates (5GHz)

802.11ax: 7.3 Mbps – 2402 Mbps 802.11ac: 6.5 Mbps – 1732 Mbps 802.11n: 6.5 Mbps – 300 Mbps 802.11a: 6 – 54 Mbps

Wi-Fi Data Rates (2.4GHz)

802.11ax: 7.3 Mbps – 573.5 Mbps 802.11n: 6.5 Mbps – 300 Mbps 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

Frequency Bands

2.4GHz: 2412 – 2483.5 MHz 5GHz: 5150 – 5895 MHz (5150 – 5350 MHz indoor only in EU)

Channel Bandwidth

2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 / 160 MHz

System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Secure Boot, Digital Signatures, Security Certificates, Unique Default Password

MU-MIMO

2×2:2 (2.4GHz) 3×3:2 (5GHz)

Coverage Range

Up to 100m (may vary by environment)

Maximum TX Power

2.4GHz: 24 dBm 5GHz: 26 dBm (varies by region)

Receiver Sensitivity (5GHz)

802.11a: -92 dBm @6Mbps, -74 dBm @54Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ac 20MHz: -67 dBm @MCS8, 40MHz: -63 dBm @MCS9, 80MHz: -59 dBm @MCS9 802.11ax 20MHz: -60 dBm @MCS11, 40MHz: -58 dBm @MCS11, 80MHz: -56 dBm @MCS11, 160MHz: -52 dBm @MCS11

Receiver Sensitivity (2.4GHz)

802.11b: -96 dBm @1Mbps, -88 dBm @11Mbps 802.11g: -93 dBm @6Mbps, -75 dBm @54Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ax 20MHz: -60 dBm @MCS11, 40MHz: -58 dBm @MCS11

SSIDs

32 total (16 per radio: 2.4GHz & 5GHz)

Concurrent Clients

Up to 256

Network Interfaces

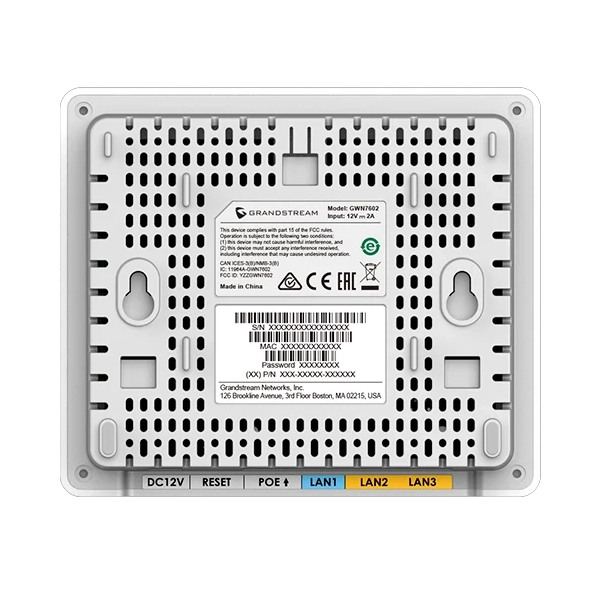

1 × 10/100/1000M uplink Ethernet port with PoE/PoE+ 2 × 10/100/1000M Ethernet ports with PSE 1 × 10/100/1000M Auxiliary Ethernet port

Auxiliary Ports

1 × Reset pinhole, 1 × Kensington lock

Mounting

Indoor wall mount (kits included)

LEDs

1 × Tri-color LED (tracking & status)

Network Protocols

IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller (manage up to 50 local APs) GDMS Cloud (unlimited APs) GWN.Manager (up to 3,000 APs)

Power & Efficiency

PoE 802.3af/802.3at PSE Max Output: 12W (LAN2/LAN3) Max Power Consumption: 7.5W (Excluding PoE output)

Environmental Conditions

Operating: 0°C – 45°C Storage: -10°C – 60°C Humidity: 10% – 90% (Non-condensing)

Physical Specs

Unit: 135 × 115 × 30 mm, 253 g Package: 171 × 140 × 33 mm, 358 g

Package Contents

GWN7604 AP, Mounting Kits, Quick Installation Guide

Compliance

FCC, CE, RCM, IC

Warranty

1 Year

Note

*Features, Price and Specifications are subject to change without notice.
