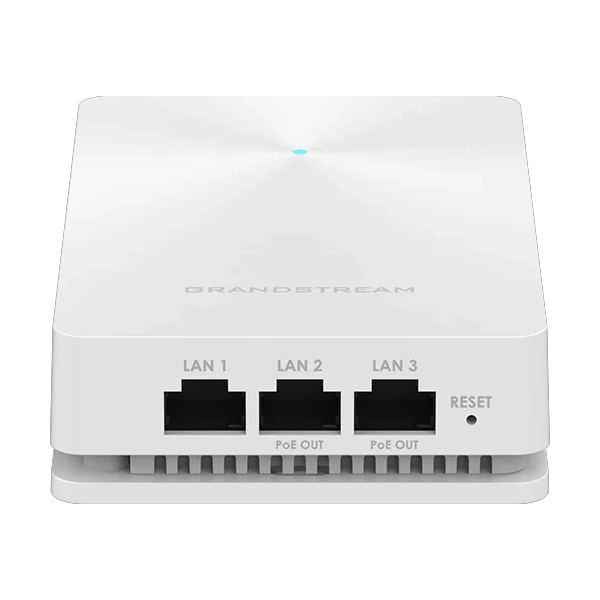

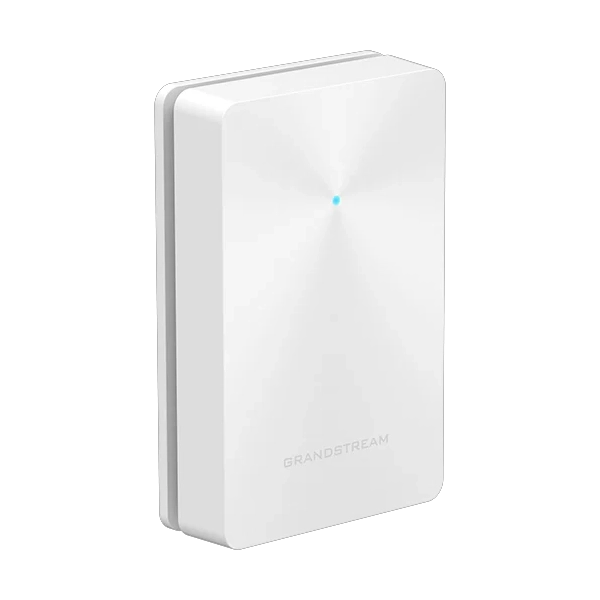

Grandstream GWN7624 AC1800 Hybrid 802.11ac In Wall Access Point


FEATURE

  • The Grandstream GWN7624 AC1800 Hybrid 802.11ac In-Wall Access Point is a practical wireless networking solution designed for hotels, offices, apartments, student accommodation, schools, and other indoor environments where reliable Wi-Fi and wired connectivity are important. Its in-wall design allows it to provide wireless access while fitting neatly into a room or workspace without taking up the space of a traditional standalone access point.
  • The GWN7624 uses 802.11ac Wave 2 Wi-Fi technology and delivers up to AC1800 wireless performance across dual-band 2.4 GHz and 5 GHz networks. The two wireless bands allow connected devices to use the most suitable frequency based on their speed and coverage requirements. This makes the access point suitable for everyday activities such as web browsing, video calls, cloud applications, streaming, online learning, and file sharing.
  • One of the key advantages of the GWN7624 is its in-wall form factor. Instead of requiring a separate ceiling or wall-mounted access point, the device can be installed directly into a wall, helping create a clean and professional appearance. This is particularly useful in guest rooms, offices, meeting rooms, classrooms, and other spaces where aesthetics and efficient use of space matter.
  • The access point also provides wired Ethernet connectivity, making it possible to connect devices such as computers, IP phones, smart TVs, network equipment, and other compatible devices. This hybrid approach combines wireless convenience with the reliability of wired networking, making the GWN7624 a flexible choice for modern network installations.
  • With support for multiple wireless clients and advanced Wi-Fi features, the GWN7624 can help provide a consistent connection in environments with several users. It is designed to handle common business and residential networking requirements while offering useful security and network management capabilities.
  • For businesses and network administrators, Grandstream provides centralized management options that can simplify the configuration and monitoring of compatible access points. This is especially useful when several GWN access points are deployed across a hotel, office building, campus, or other larger property.
  • The GWN7624 can be particularly useful in hospitality environments, where each room may require its own reliable Wi-Fi and wired network connection. It can also be used in offices and residential developments where a discreet, integrated access point is preferred.
  • Overall, the Grandstream GWN7624 AC1800 Hybrid 802.11ac In-Wall Access Point combines dual-band Wi-Fi, wired networking, a space-saving in-wall design, and professional management features. It is a suitable option for users who want dependable wireless connectivity without compromising the appearance or functionality of their indoor space.

SPECIFICATION

Brand

Grandstream

Model

GWN7624

Color

White

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac

Antennas

2 × 5GHz internal antennas 2 × dual-frequency internal antennas

Antenna Gain

2.4GHz: 3 dBi 5GHz: 5 dBi

Wi-Fi Data Rates

5GHz 802.11ac: 6.5 – 1733 Mbps 802.11n: 6.5 – 600 Mbps 802.11a: 6 – 54 Mbps2.4GHz 802.11n: 6.5 – 300 Mbps 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

Frequency Bands

2.4GHz: 2412 – 2484 MHz 5GHz: 5180 – 5825 MHz (availability may vary by region)

Channel Bandwidth

2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 MHz

Wi-Fi & Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Anti-hacking secure boot, digital signatures, unique security certificates, random default password

MIMO Technology

2×2:2 (2.4GHz MIMO) 4×4:4 (5GHz MU-MIMO)

Coverage Range

Up to 100 meters (varies by environment)

Maximum TX Power

2.4GHz: 23 dBm 5GHz: 25 dBm (varies by region/frequency)

Receiver Sensitivity (5GHz)

802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps 802.11n 20MHz: -74 dBm @MCS7 802.11n 40MHz: -71 dBm @MCS7 802.11ac 20MHz: -67 dBm @MCS8 802.11ac 40MHz: -63 dBm @MCS9 802.11ac 80MHz: -59 dBm @MCS9

Receiver Sensitivity (2.4GHz)

802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7

SSIDs

16 total (8 per radio: 2.4GHz & 5GHz)

Concurrent Clients

Up to 200

Network Interfaces

1 × 10/100/1000M uplink Ethernet port with PoE/PoE+ 2 × 10/100/1000M Ethernet ports with PSE 1 × 10/100/1000M auxiliary Ethernet port

Auxiliary Ports

1 × Reset pinhole

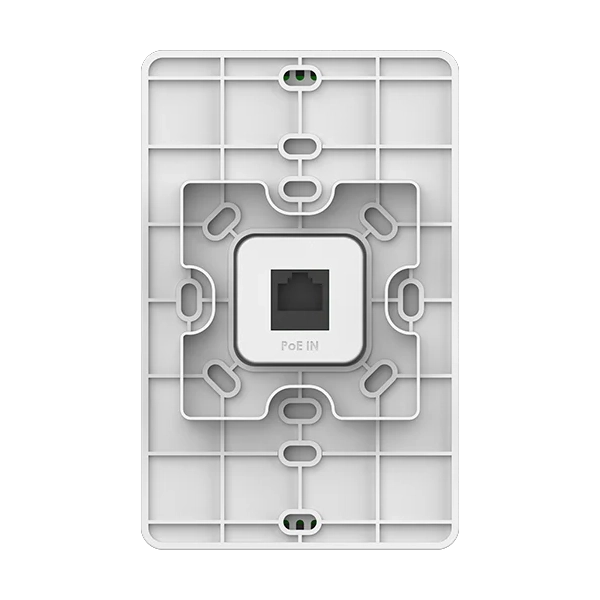

Mounting Options

In‑wall mountable

LEDs

1 × tri-color LED (device tracking & status indication)

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS Features

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller (manage up to 30 APs) GDMS Cloud Management (free, unlimited APs) GWN Manager (up to 3,000 APs)

Power & Efficiency

PoE 802.3af/802.3at Supports 802.3az Green Energy PSE Max Output per port: 6W Max Power Consumption: 25W

Environmental Conditions

Operating: -10°C – 50°C Storage: -30°C – 60°C Humidity: 5% – 95% (non-condensing)

Physical Dimensions

Unit: 135 × 86 × 38.5 mm Package: 176 × 118.5 × 65 mm

Weight

Unit: — (not specified individually) Package: — (based on dimension)

Package Contents

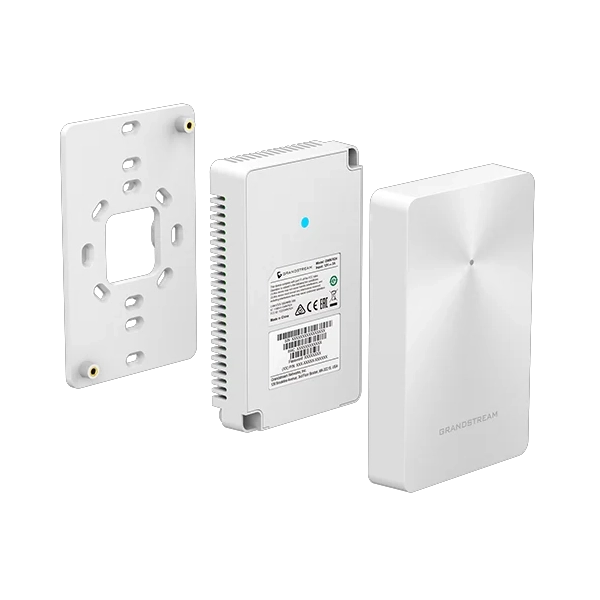

GWN7624 In‑Wall AP, 4 × Screws (KB 3.5×26), Quick Installation Guide

Compliance

FCC, CE, RCM, IC, UKCA

Warranty

3 Year

Note

*Features, Price and Specifications are subject to change without notice.
