Brand | Grandstream |

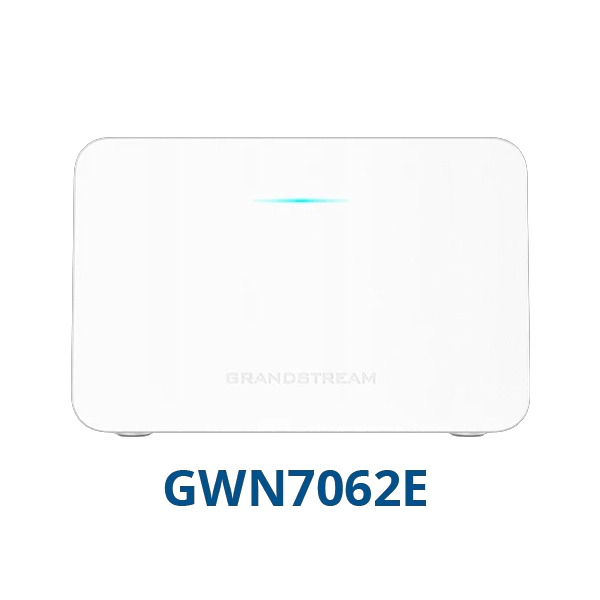

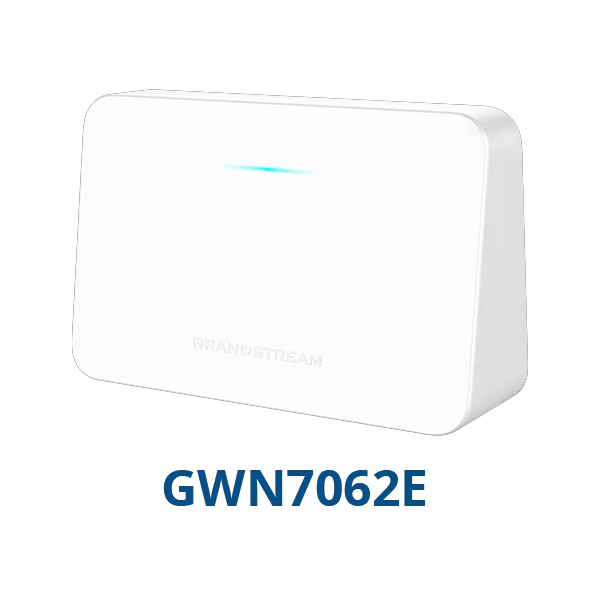

Model | GWN7062E |
Color | White |
Wi‑Fi standards | IEEE 802.11 a/b/g/n/ac/ax |
Antennas | 1 × 5 GHz (max gain 3.4 dBi); 2 × 2.4 GHz & 5 GHz (max gain 4.7 dBi for 2.4 GHz, 4.3 dBi for 5 GHz) |
5 GHz data rates | |
802.11ax (Wi‑Fi 6) | 7.3 Mbps to 2402 Mbps |
802.11ac (Wi‑Fi 5) | 6.5 Mbps to 1732 Mbps |
802.11n (Wi‑Fi 4) | 6.5 Mbps to 300 Mbps |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
2.4 GHz data rates | |
802.11ax (Wi‑Fi 6) | 7.3 Mbps to 573.5 Mbps |
802.11n (Wi‑Fi 4) | 6.5 Mbps to 300 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
Frequency bands | 2.4 GHz: 2400–2483.5 MHz; 5 GHz: 5150–5895 MHz (*not all bands available in all regions) |
Channel bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80/160 |
Security | WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti‑hack security boot; critical data/control lockdown via digital signatures; unique security certificate; random default password per device; security firewall (DoS, blocklist, URL content filtering); DPI with application monitoring and traffic statistics |
MU‑MIMO | 2×2:2 (2.4 GHz); 3×3:2 (5 GHz) |
Coverage range | Up to 150 m² (environment dependent) |
Max TX power | 2.4 GHz: 24 dBm; 5 GHz: 26 dBm (*varies by country, band, and MCS rate) |
Concurrent wireless clients | Up to 128 |

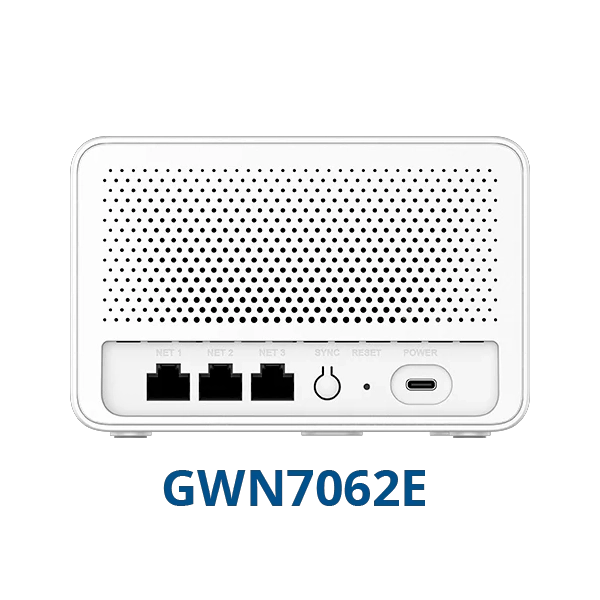

Ethernet ports | 3 × auto‑sensing 10/100/1000 Mbps |
Auxiliary ports | 1 × SYNC; 1 × POWER; 1 × RESET pinhole |
Network protocols | IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP |
QoS | 8 queues with multiple traffic priority and bandwidth; APP QoS; QoS rules |
NAT | DDNS, port forwarding, DMZ, UPnP |
VPN clients | L2TP, PPTP, IPSec (Site-to-Site & Client-to-Site) |
VPN servers | OpenVPN, WireGuard (Site-to-Site & Peer-to-Site) |
Max VPN tunnels | 1 |
WAN connection types | PPPoE, PPTP, L2TP, Dynamic IP, Static IP |
Dual‑WAN policy | Load balance, failover |
DHCP server | Yes |
LAN port IP settings | Configurable |
Client list | Supported |
Static address binding | Supported |

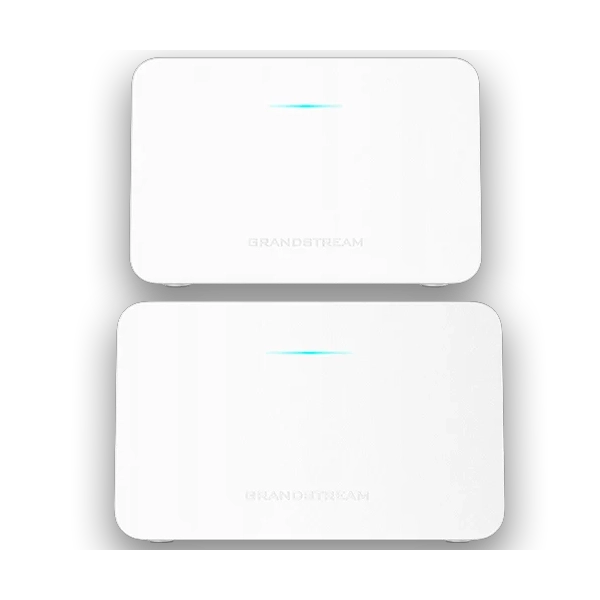

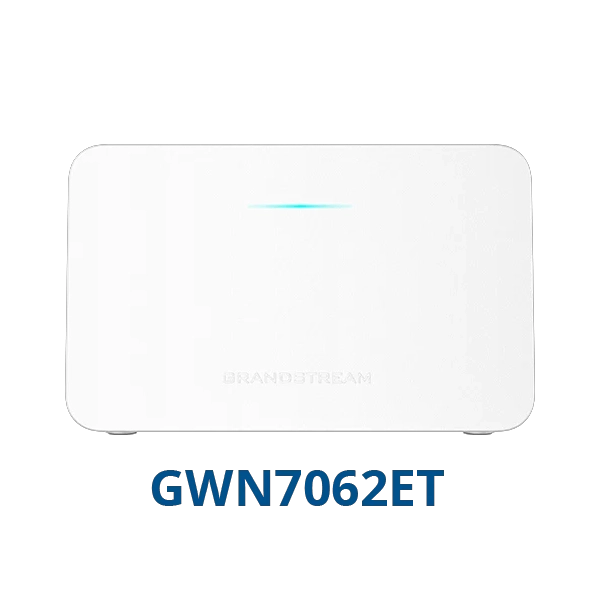

Mesh | One router with up to 3 GWN7062E/ET as mesh nodes |
Category | Specification |
Embedded controller | Local management of device |
GDMS (Networking) | Free cloud management platform for unlimited GWN routers |
GWN Manager | Premise‑based software controller |
TR‑069 | Supported |
Category | Specification |
Mounting | Desktop or wall‑mount |
LED | 1 × tri‑color LED (device tracking and status indication) |
Unit dimensions | 140 mm (L) × 46 mm (W) × 90 mm (H) |
Package dimensions | 176.5 mm (L) × 170 mm (W) × 72 mm (H) |
Unit weight | 185 g |
Package weight | 465 g |
Power supply | USB Type‑C adapter; Input: 100–240 V, 50/60 Hz; Output: 5 V / 3 A (15 W) |
Operating temperature | 0 °C to 40 °C; humidity 10–90% RH (non‑condensing) |
Storage temperature | −20 °C to 60 °C; humidity 10–90% RH (non‑condensing) |
Certifications | FCC, CE, RCM, IC |
Warranty | 1 Year |
Note | *Features, Price and Specifications are subject to change without notice. |
