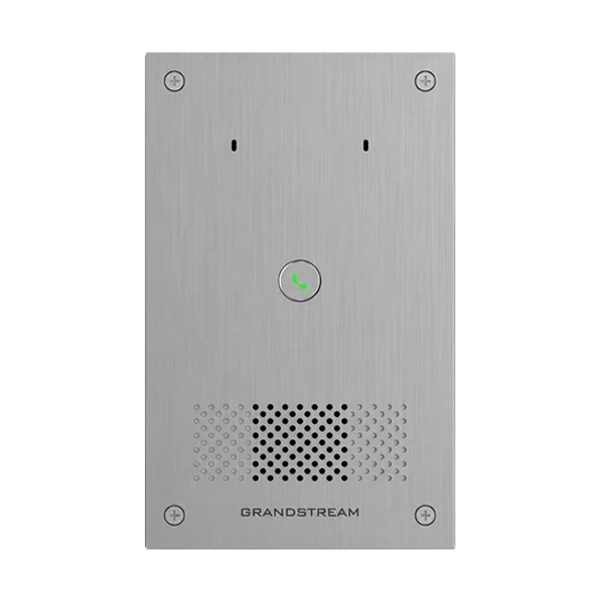

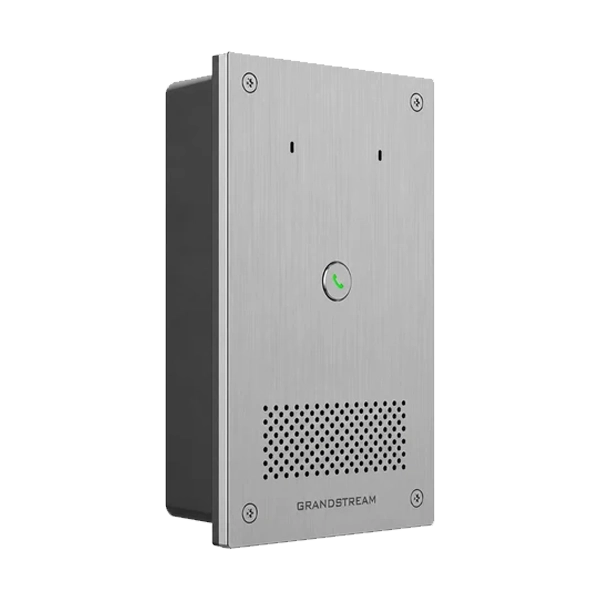

    Grandstream GSC3560 Smart Outdoor Intercom


    FEATURES

    • The Grandstream GSC3560 Smart Outdoor Intercom is designed to provide reliable two-way communication at entrances, gates, offices, apartment buildings, homes, warehouses, and other locations. It combines a durable outdoor design with practical communication and access-control features.
    • Clear Two-Way Audio:
    • The GSC3560 allows visitors and staff or residents to communicate clearly through two-way voice communication. Its built-in microphones and speaker make conversations convenient without requiring users to be physically present at the entrance.
    • Built for Outdoor Environments:
    • With a rugged construction and IP66 and IK10 protection, the intercom is designed to withstand dust, water exposure, and physical impact. This makes it suitable for demanding outdoor installation areas.
    • Network Connectivity:
    • The GSC3560 uses IP-based network connectivity, making it easy to integrate into modern communication systems. Its Ethernet connection also supports Power over Ethernet (PoE), helping reduce the need for a separate power cable where a compatible PoE network is available.
    • Access Control Support:
    • The intercom includes interfaces that can be used with compatible access-control equipment. This makes it useful for managing entry points and improving security at buildings and restricted areas.

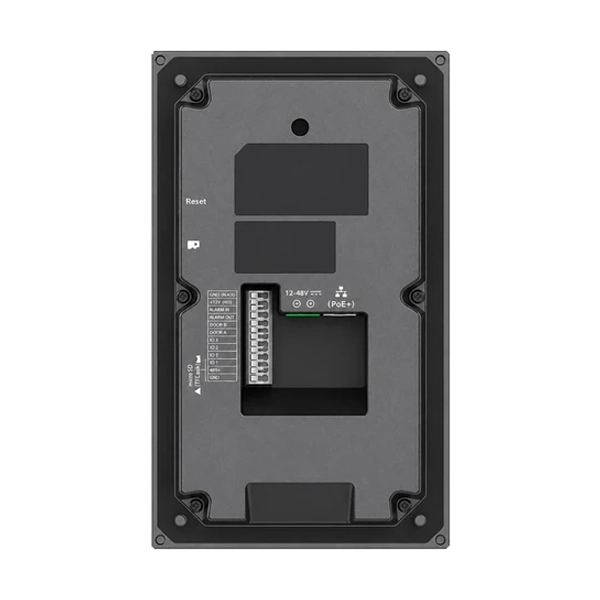

    • Multiple Connection Interfaces:
    • It provides useful connectivity options such as RS-485, alarm inputs, and relay outputs, allowing it to work with compatible external devices and security systems.
    • Suitable for Homes and Businesses:
    • Whether installed at a residential gate, office entrance, apartment complex, warehouse, or commercial building, the GSC3560 provides a professional way to handle visitor communication.
    • Simple and Practical Design:
    • Its compact outdoor-ready design allows it to fit neatly near entrances while providing a dedicated communication point for visitors.
    • Overall, the Grandstream GSC3560 is a durable and flexible IP intercom solution for reliable visitor communication and entrance management.


    SPECIFICATIONS

    Brand

    Grandstream

    Model

    GSC3560

    Color

    Grey

    Application

    Emergency response, device control, schools, residential communities, SMBs and other high-demand environments

    Casing

    Durable metal casing

    Dimensions

    200 × 120 × 40 mm (H × W × D)

    Unit Weight

    0.732 kg

    Package Dimensions

    246 × 161 × 65 mm

    Package Weight

    3 kg

    Installation

    Wall mount, pole mount, flush mount

    Network Port

    1 × 10/100 Mbps PoE Ethernet

    PoE

    IEEE 802.3at Class 4 (PoE+)

    Power Supply

    12–48 V DC / 2 A, 24 W

    Microphone

    Dual-microphone array

    Microphone Pickup

    Up to 6 m (19.68 ft)

    Speaker

    10 W high-power speaker

    Speaker Volume

    90 dB (Intercom), 100 dB (Broadcast)

    Audio Output

    1 × differential line-out channel

    RS-485

    1 port

    Alarm Inputs

    2 channels

    Relay Outputs

    2-channel outputs for lock control and alarm linkage

    Relay Output 1

    NO1 / COM1 / NC1 — auxiliary relay for alarm linkage and standard lock control

    Relay Output 2

    NO2 / COM2 / NC2 — anti-magnetic Solid State Relay (SSR) for alarm linkage and high-security lock control

    TF Card

    1 slot, up to 256 GB

    Buttons

    1 Call Button, 1 Tamper Switch, 1 Reset Button

    Video Camera

    Not available

    Video Compression

    N/A

    Unlock Methods

    SIP, HTTP API, Grandstream SecureAccess App

    SIP Features

    SIP Paging, Multicast Paging, Call-waiting with priority override

    Audio Codecs

    G.711µ/a, G.722, G.726-32, G.729

    DTMF

    In-band and out-of-band DTMF — audio, RFC2833, SIP INFO

    Noise Suppression

    AI noise suppression + classic noise suppression

    Audio Features

    VAD, CNG, AEC, PLC, AJB, AGC, ANS

    Network Protocols

    TCP/IP, UDP, RTP/RTCP, HTTP/HTTPS, TR-069, ARP/RARP, ICMP, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, SIMPLE, TLS, SRTP

    QoS

    Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS)

    Security

    User/admin passwords, 802.1x authentication, Ed25519/X25519 TLS, SRTP, HTTPS, 256-bit AES encrypted configuration

    Operating Temperature

    −40°C to +70°C

    Storage Temperature

    −40°C to +70°C

    Operating Humidity

    10–90%, non-condensing

    Storage Humidity

    10–90%, non-condensing

    Protection Rating

    IP66, IK10 for metal surface and buttons

    Compliance

    FCC, CE, RCM, IC

    Management

    Local Web GUI; GDMS UC; GDMS SecureAccess; Grandstream SecureAccess App

    Home Assistant

    Compatible

    Firmware Upgrade

    TFTP, HTTP or HTTPS

    Provisioning

    TR-069, local firmware upload, AES-encrypted XML configuration

    Alarm Events

    Tamper alarm, wrong-password alarm for remote door opening, exceeded access-time-limit alarm, high-temperature alarm, insufficient-power alarm, SD-card alarm

    Alarm Linkage

    Sync alarm information to App, cloud call alarm, Home Assistant

    Snapshot

    FTP / SD Card

    Primary Unit

    1 × Intercom

    Warranty

    1 Year

    Note

    *Price, feature and specifications are subject to change without notice
