Cooling Performance:

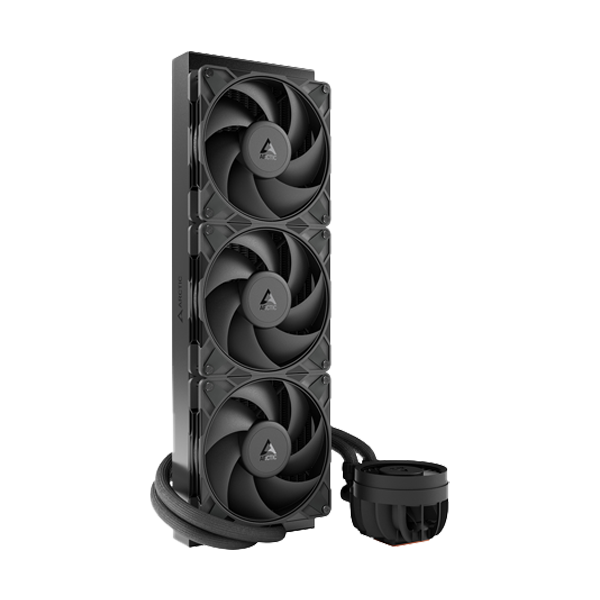

420mm Radiator: Features a large 420mm aluminum radiator (38mm thick) for enhanced heat dissipation, ideal for high-performance CPUs.
Three 140mm P14 Pro Fans: Equipped with new seven-blade P-series fans optimized for high airflow (up to 77 CFM) and static pressure, improving cooling efficiency compared to the standard Liquid Freezer III.
VRM Cooling: Includes a 60mm PWM-controlled VRM fan to cool motherboard voltage converters, enhancing stability during overclocking or in cases with poor airflow. This fan operates quietly and can be controlled independently via a splitter cable.
PWM Pump: In-house developed pump with a wide RPM range (200–2000 RPM) for efficient and customizable cooling performance.
Compatibility:
CPU Socket Support:
AMD: AM5, AM4
Intel: LGA1851, LGA1700
Includes a contact frame for Intel sockets to ensure optimal heat transfer.
Design and Build:
Pre-installed Fans: Fans come pre-installed in a push configuration, with integrated cable management routed through the hose jacket, reducing cable clutter and simplifying installation.
Sleek Black Design: Features a professional all-black aesthetic, suitable for various PC builds.
Compact Pump Block: Incorporates advanced VRM cooling technology while maintaining a clean, efficient design.
Ease of Installation:
Ready Out-of-the-Box: Pre-installed radiator fans and included MX-6 thermal compound simplify setup. Only one cable needs to be connected to the motherboard.
User-Friendly: Despite some reports of installation challenges (e.g., screw alignment in pull configurations), the design aims for straightforward mounting.
Durability and Warranty:
6-Year Manufacturer’s Warranty: Backed by Arctic’s rigorous long-term testing for quality and durability.
Fluid Dynamic Bearings: Fans use fluid dynamic bearings for quiet operation and extended lifespan.
Performance Highlights:
Effective at maintaining low CPU temperatures, with user reports indicating temperatures below 55°C for high-end CPUs like the AMD Ryzen 9800X3D under load.
Optimized for both high and low fan speeds, delivering excellent airflow per noise unit.
|
Brand |
Arctic |
|
Model |
ACFRE00181A |
|
Color |
Black |
|
General Specifications |
|
|
TIM |
MX-6 (0.8 g) |
|
Operating Ambient Temperature |
0—40 °C |
|
Pump Speed |
800–2800 rpm (PWM controlled) |
|
Current |
0.35 A | 12 V DC |
|
Cold Plate |
Copper, Micro Skived Fins |
|
Tube Length |
450 mm |
|
Tube Diameter |
Outer: 12.4 mm |
|
|
Inner: 6.0 mm |
|
Weight |
2370 g |
|
Compatibility |
|
|
Intel |
LGA1851, LGA1700 |
|
AMD |
AM5, AM4 |
|
Radiator |
|
|
Material |
Aluminium |
|
Dimensions |
458 (L) x 138 (W) x 38 (H) mm |
|
VRM Module |
|
|
VRM Fan Speed |
400–2500 rpm (PWM-controlled) |
|
VRM Current |
0.05 A | 12 V DC |
|
Radiator Fan |
|
|
General |
3x P14 Pro |
|
Speed |
400–2500 rpm |
|
Airflow |
110 cfm |
|
Static Pressure |
5.2 mmH2O |
|
Bearing |
Fluid Dynamic Bearing |
|
Current |
0.35 A | 12 V DC |
|
Packaging |
|
|
Width |
328 mm |
|
Height |
158 mm |
|
Length |
447 mm |
|
Weight |
2.994 kg |
|
Warranty |
6 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
