80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
NVIDIA SLI & AMD Crossfire Ready
5 Year Warranty and unparalleled EVGA Customer Support
Modular Design to reduce clutter and improve airflow
100% Japanese Capacitors ensure long-term reliability
Active Clamp +DC to DC design for efficient operation
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Whisper Silent with 135mm Fluid Dynamic Bearing Fan
Active Power Factor Correction.
|
Type |
Length |
|---|---|
|
ATX Cable |
1x 600mm |
|
EPS Cable |
2x 650mm |
|
PCIe Cable |
4x 650mm, 750mm, 2x 650mm |
|
SATA Cable |
3x 550mm, 650mm, 750mm, 850mm |
|
Four-Pin Peripheral Cable |
1x 550mm, 650mm, 750mm |
|
Floppy Adapter |
1x 100mm (m) |
|
AC Power |
1x 1530mm |
|
Modular Cable Type |
Semi-Modular |
|

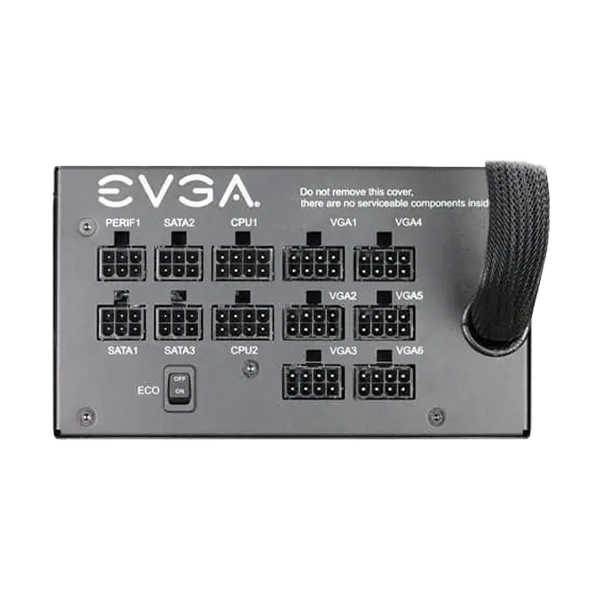

Connector |
Quantity |
|---|---|
|
24 Pin ATX |
1x |
|
EPS (CPU) |
2x 8pin (4+4) |
|
PCIe |
10x 8pin (6+2) |
|
SATA |
12x |
|
Four-Pin Peripheral |
3x |
|
Floppy |
2x |
|
AC Input |
100 – 240 VAC, 16A, 50 – 60 Hz |
|||||
|
Rail |
+3.3V |
+5V |
+12V |
+5Vsb |
-12V |
|
|
Max Output |
24A |
24A |
83.3A |
3A |
0.5A |
|
|
|
120W |
999.6W |
15W |
6W |
||
|
Total |
1000W @ +50°C |
|||||
|
Operating Temperature |
0° to 50°C |
|
Japanese Capacitors |
100% |
|
ECO Mode |
Yes |
|
MTBF |
100,000 Hours |
|
Net Weight |
7.00 lbs |
|
Size |
85mm (H) x 150mm (W) x 180mm (L) |
|
Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS |
|
Fan Size / Bearing |
135mm Fluid Dynamic Bearing |
