FEATURES
Advanced Power Delivery Features
-
Fully-modular cable design for clean and efficient builds
-
Variable Resistor module for enhanced voltage stability
-
Dual DC-to-DC modules for efficient power conversion
-
Single +12V rail delivering up to 108.3A
-
EVGA ECO Mode for silent operation under light loads
-
Comprehensive power supply protection suite
Technical Specifications
-
ATX12V/EPS12V compliance for broad compatibility
-
Input voltage support: 120V AC and 230V AC
-
Multiple DC outputs: 3.3V@24A, 5V@24A, 12V@108.3A
-
Compact dimensions: 3.4″ x 5.9″ x 7.9″
-
Premium internal layout for optimized airflow
-
Environmentally friendly design
Reliability and Support

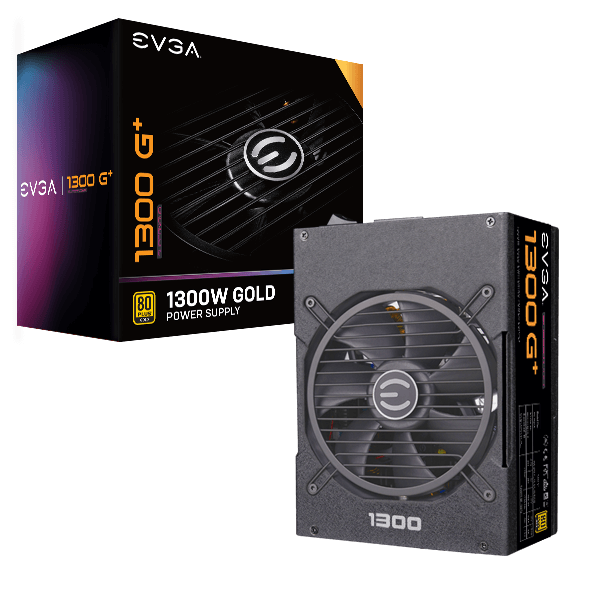

Built in Taiwan with premium components, the SuperNOVA 1300 G+ comes backed by EVGA’s industry-leading 10-year warranty, ensuring long-term peace of mind for your high-end system build. The power supply’s robust construction and efficient thermal design make it an ideal choice for enthusiast-grade gaming systems, professional workstations, and mining rigs requiring stable, high-wattage power delivery.
Power Efficiency and Performance
- With its 80+ Gold certification and 92% efficiency rating, the SuperNOVA 1300 G+ minimizes power waste and reduces electricity costs. The single +12V rail design delivering 108.3A ensures stable power for multiple GPUs and processors, while the fully-modular cable system allows for custom cable configurations and improved airflow management.
- Introducing the SuperNOVA 1300 G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance.
- Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all G+ power supplies. The EVGA SuperNOVA G+ power supplies sets the new Gold standard for performance and value.
SPECIFICATIONS
| Cable Lengths |
ATX Cable: 1x 600mm |
| |
EPS Cable: 2x 750mm |
| |
PCIe Cable: 4x 750mm, 2x 750mm, 900mm |
| |
SATA Cable: 4x 550mm, 650mm, 750mm |
| |
Four-Pin Peripheral Cable; 2x 550mm, 650mm, 750mm |
| |
Floppy Adapter: 1x 100mm |
| |
AC Power: 1x 1800mm |
| Modular Cable Type |
Full |
| Molex to FDD |
1x |

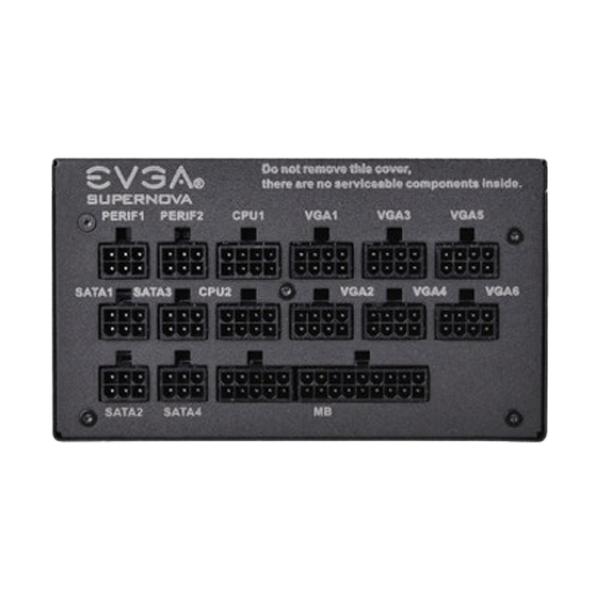

| Connector Quantity |
24 Pin ATX: 1x |
| |
EPS (CPU): 2x 8pin (4+4) |
| |
PCIe: 8x 8pin (6+2) |
| |
SATA: 12x |
| |
Four-Pin Peripheral: 6x |
| |
Floppy: 1x |
| Operating Temperature |
0° to 50° C |
| Japanese Capacitors |
1 |
| ECO Mode |
Yes |
| MTBF |
100,000 Hours |
| Net Weight |
8.20 lbs |
| Size |
86mm (H) x 150mm (W) x 200mm (L) |
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS |
| |
Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing |
135mm Fluid Dynamic Bearing |
| AC Input |
100-240V~, 15-8A, 60/50 Hz |
| Wattage |
1300W |
| WARRANTY |
10 Year limited warranty with registration. |
| Note* |
Price, feature and specifications are subject to change without notice. |
