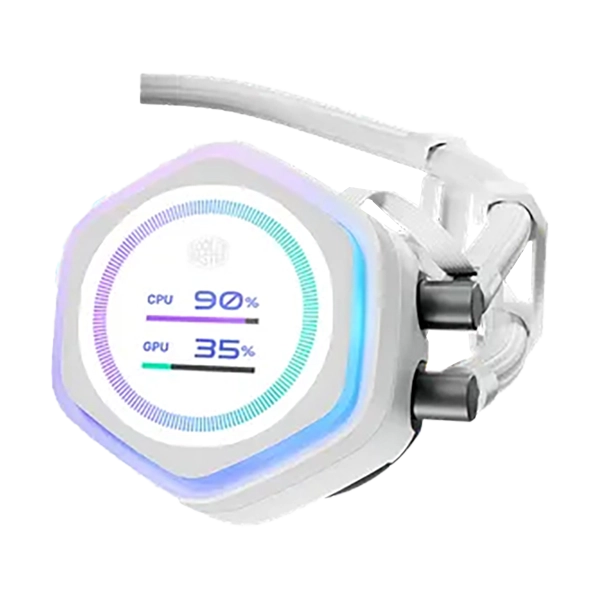

Vibrant Integrated LCD Display
Customizable 2.1″ circular LCD panel on the pump shows real-time stats such as CPU temperature, fan/Pump RPM, usage graphs or personalized graphics & animations via software.
Advanced Dual-Chamber Pump Design
Efficient pump architecture isolates coolant flow and enhances heat transfer for stable performance under heavy workloads.
Gen2 Addressable RGB Lighting
ARGB illumination on both the pump and fan delivers stunning lighting effects that sync with motherboard RGB software (ARGB 5V/3-pin).
High-Flow 120mm SickleFlow Edge ARGB Fan
Designed for optimized airflow and static pressure to push air through the radiator efficiently while maintaining dynamic lighting.
240mm Large Radiator
Extended surface area enables superior heat dissipation from high-TDP CPUs in gaming and productivity builds.
Broad Socket Compatibility
Supports current Intel sockets (LGA1851 / 1700 / 1200 / 115x) and AMD sockets (AM5 / AM4) for wide platform coverage
|
Brand |
Cooler Master |
|
Model |
MLX-D24M-A25SZ-LW |
|
Color |
White |
|
CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
|
CPU Socket |
AMD® AM5 / AM4 |
|
Radiator Material |
Aluminum |
|
Radiator Dimensions |
(240) – 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) |
|
Pump Dimensions |
92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
|
Pump Profiles |
Addressable Gen2 RGB |
|
Pump Speed |
3400 ± 300 RPM |
|
Pump MTTF |
>210,000 Hours |
|
Pump Noise Level |
25 dBA (Max) |
|
Pump Rated Voltage |
12 VDC |
|
Pump Power Consumption |
3.84W |
|
Pump Connector |
3-Pin ARGB + 4-Pin PWM |
|
Tube Length |
350 mm |
|
Fan Dimensions (LxWxH) |
241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch) |
|
Profile |
Addressable Gen 2 RGB |
|
Fan Quantity |
1 PC |
|
Fan Speed |
690 ~ 2500 RPM ± 15% |
|
Fan Airflow |
240.35 m³/h (141.4 CFM) |
|
Fan Air Pressure |
3.61 mmH2O |
|
Fan MTTF |
>160,000 Hours |
|
Fan Nouse Level |
36 dB(A) |
|
Fan Bearing Type |
Loop Dynamic Bearing |
|
Fan Connector |
7-Pin PWM + ARGB |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.5A |
|
Fan Safety Current |
0.8A |
|
Fan Power Consumption |
6 W |
|
Radiator Size |
240 |
|
Cooler Type |
Liquid Cooler |
|
Series |
MasterLiquid |
|
LCD Dimensions |
85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch) |
|
LCD Connector |
USB Type-C to Motherboard 9 pin |
|
LCD Screen Size |
2.1 inches / Diameter 53.3 mm |
|
LCD Screen Resolution |
480 x 480 Px |
|
LCD Screen Luminance |
300 cd/m² |
|
LCD Screen Refresh Rate |
60Hz |
|
LCD Screen Orientation |
Software-MasterCtrl adjustable |
|
LCD Rated Voltage |
5 VDC |
|
LCD Rated Current |
0.3 A |
|
LCD Safety Current |
0.5 A |
|
LCD Power Consumption |
1.5W |
|
Warranty |
6 Years |
|
Note** |
**Prices, Specifications & Features are subject to change without notice |
