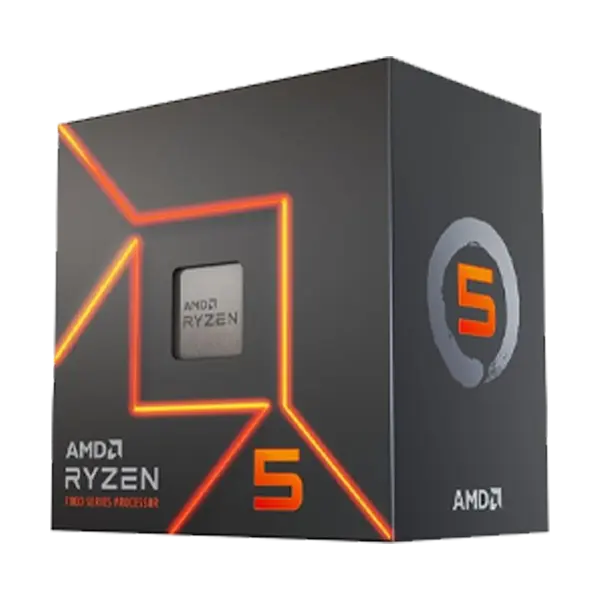

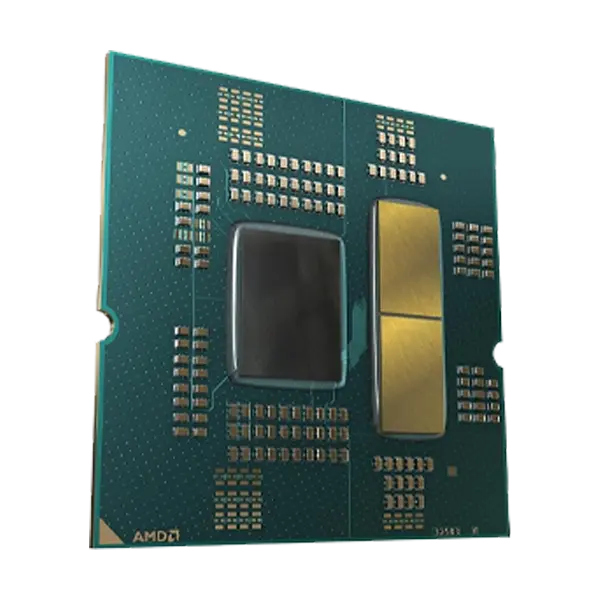

AMD Ryzen 5 7500F 6 Cores Upto 3.7 GHZ Upto 5 GHZ AM5 Processor

Brand

AMD

Product Name

AMD Ryzen 5 7500F

Product Type

Desktop Processor

Series

Ryzen 7000 Series

Sku

100-100000597BOX

Processor Family

Ryzen 5

Architecture

Zen 4

Codename

Raphael

Socket

AM5

CPU Cores

6

CPU Threads

12

Base Clock

3.7 GHz

Max Boost Clock

Up to 5.0 GHz

L1 Cache

384 KB

L2 Cache

6 MB

L3 Cache

32 MB

Total Cache

38 MB

Default TDP

65W

Manufacturing Process

TSMC 5nm FinFET CPU Cores / 6nm I/O Die

Unlocked

Yes

CPU Boost Technology

Precision Boost 2

Overclocking Support

Yes

AMD EXPO

Yes

Precision Boost Overdrive

Yes

Curve Optimizer

Yes

Integrated Graphics

No

Graphics Requirement

Dedicated Graphics Card Required

Memory Type

DDR5

Memory Channels

2

Maximum Memory

Up to 128 GB

Official Max Memory Speed

DDR5-5200

ECC Support

Yes, motherboard dependent

PCI Express Version

PCIe 5.0

Native PCIe Lanes

28 Total / 24 Usable

NVMe Support

Boot, RAID 0, RAID 1, RAID 10

Compatible Chipsets

A620, B650, B650E, X670, X670E, X870, X870E, B840, B850

Thermal Solution

AMD Wraith Stealth

Maximum Operating Temperature

95°C

Operating Systems

Windows 10/11 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit

Warranty

3 Year

Note**

**Prices, Specifications & Features are subject to change without notice
