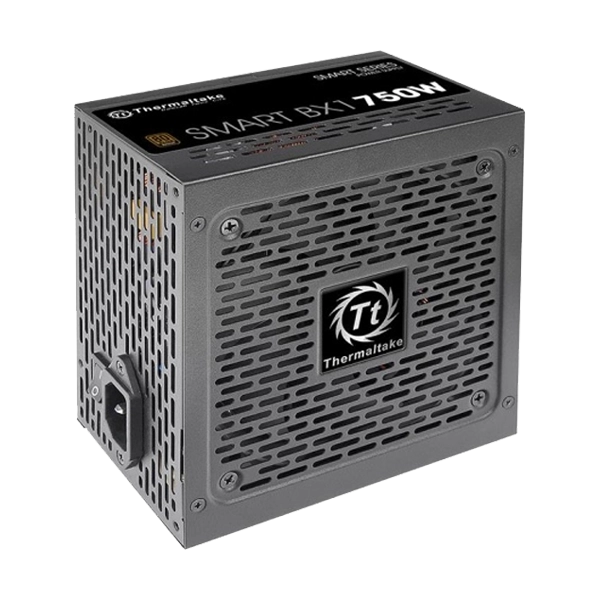

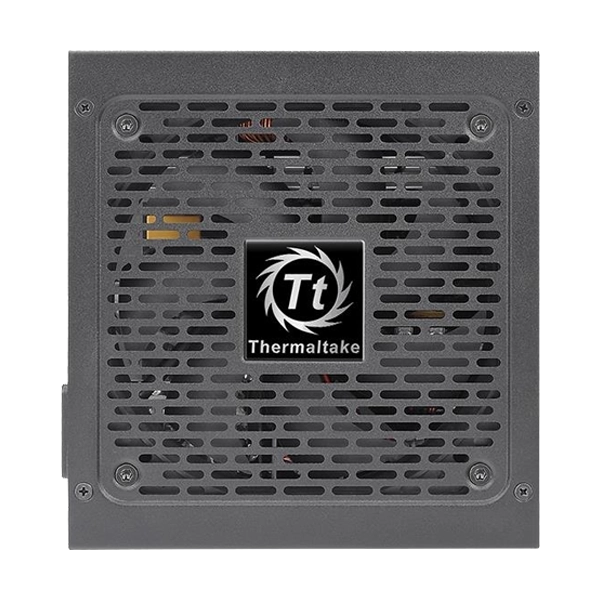

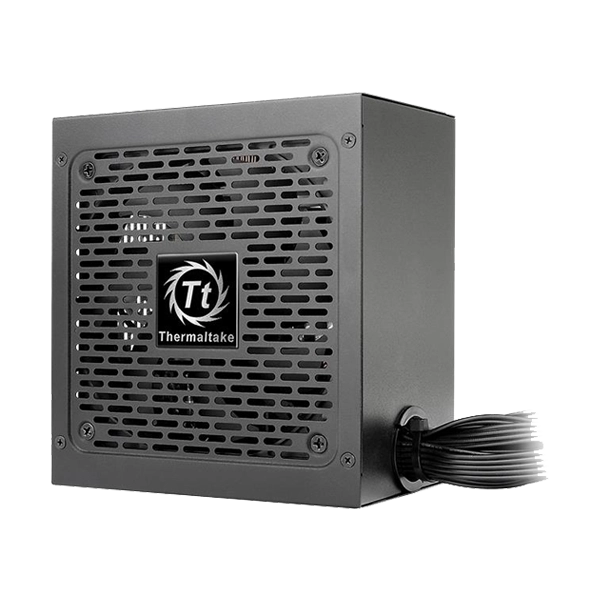

Thermaltake Smart BX1 750W 80 Plus Bronze Power Supply

SKU:
PS-SPD-0750NNFABD-7
₹ 11,490 ~ ₹ 6,669 42 OFF
Save GST upto18% on Business purchase
COD Available* | EMI Options Available

Quantity:
(2 available)

Shop with confidence

🔒 Secure & Safe Payments
100% Genuine Products
🎧 Trusted Customer Support
🚚 Reliable Delivery

Thermaltake Smart BX1 750W 80 Plus Bronze Power Supply


FEATURES


Smart BX1 750W

Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.


Ultra Quiet 120mm Hydraulic Bearing Fan

Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.


Low Ripple Noise

All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.


Premium Japanese Main Capacitor

Providing great durability as well as offering the highest stability, while remaining reliable.


High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.


Multiple Connectors
 Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages


SPECIFICATION


Brand

Thermaltake

Product Name

Smart BX1 750W

Model

PS-SPD-0750NNFABD-7

Color

Black

PSU Type

ATX 12V v2.3 / EPS v2.92

Wattage

750W

Peak Power

900W

Certification

80 PLUS Bronze

Efficiency

Up to 88%

Modular Type

Non-Modular

PFC

Active PFC

Cooling Fan

120mm Hydraulic Bearing Fan

Input Voltage

100V – 240V

Input Frequency

50Hz – 60Hz

Input Current

12A Max

+12V Rail

Single Rail

Combined +12V Output

672W

Main Capacitor

Premium Japanese Capacitor

Hold Up Time

>16ms at 70% Load

Ripple Noise

<80mV on +12V

MTBF

100,000 Hours

Operating Temperature

5°C to +40°C

Operating Humidity

20% to 85%

Storage Temperature

-40°C to +55°C

Protection

OCP, OVP, UVP, OPP, SCP

Motherboard Connector

24-Pin x1

CPU Connector

4+4 Pin x1

PCI-E Connector

6+2 Pin x4

SATA Connectors

8

Peripheral Connectors

4

Floppy Connector

1

Dimensions

150 x 86 x 140 mm

Intel C6/C7 Ready

Yes

Warranty

5 Years

Note

**Prices, Specificaions & Features are subject to change without notice
