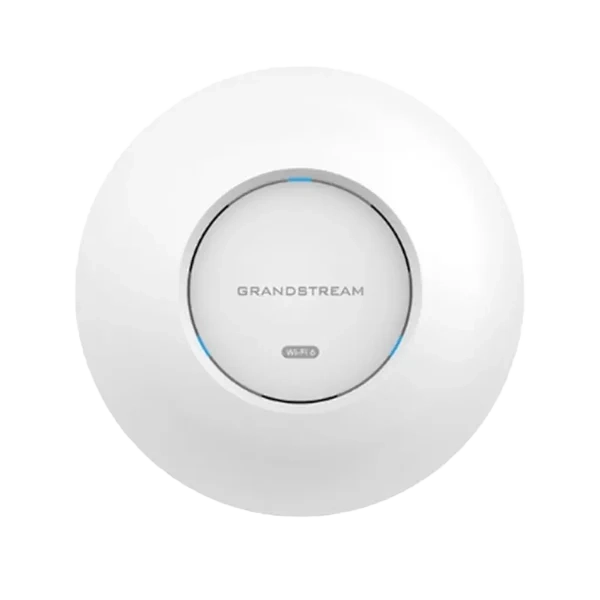

Grandstream GWN7660 Wi-Fi 6 Indoor Access Point

No reviews yet |Write a review
SKU: GWN7660  |  Brand: Grandstream
₹ 10,999 ₹ 15,611 30% OFF ● Out of Stock
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Secure Payments
100% Genuine
Fast Delivery
Expert Support

Grandstream GWN7660 Wi-Fi 6 Indoor Access Point


FEATURE

  • The Grandstream GWN7660 Wi-Fi 6 Indoor Access Point is a reliable and high-performance wireless networking solution designed for businesses, offices, schools, hotels, retail stores, and other professional indoor environments. It provides fast, stable Wi-Fi connectivity and is designed to handle multiple users and devices at the same time, making it a practical choice for modern networks.
  • The GWN7660 uses the latest Wi-Fi 6 (802.11ax) technology, which offers improved wireless efficiency and performance compared with previous Wi-Fi generations. It supports dual-band connectivity across the 2.4 GHz and 5 GHz frequency bands, allowing users to connect different devices according to their speed and coverage requirements. The 2.4 GHz band is suitable for wider coverage and everyday connections, while the 5 GHz band is ideal for devices that require higher wireless performance.
  • With 2×2:2 MU-MIMO, the GWN7660 is designed to communicate efficiently with multiple compatible wireless devices. This makes it suitable for busy environments where many users may be connected simultaneously. Employees, students, guests, and customers can use laptops, smartphones, tablets, smart devices, and other Wi-Fi equipment without placing unnecessary strain on the network.
  • The access point offers an aggregate wireless throughput of up to 1.77 Gbps, making it suitable for demanding applications such as video conferencing, cloud-based services, online meetings, file sharing, streaming, web browsing, and other business applications. Actual wireless performance will depend on network conditions, connected devices, distance, interference, and the surrounding environment.
  • Security is also an important part of the GWN7660. It provides modern wireless security features that help protect network access and connected devices. Businesses can create separate wireless networks for employees, guests, and other users, giving administrators greater control over network access.
  • For organizations with multiple access points, Grandstream provides centralized management options that simplify configuration, monitoring, and maintenance. This makes the GWN7660 suitable for larger deployments where several wireless access points need to be managed as part of one network.
  • The device is designed for indoor installation and can be deployed in offices, classrooms, conference rooms, hotel areas, retail spaces, and other commercial locations. Its professional design allows it to integrate neatly into modern indoor network environments.
  • Overall, the Grandstream GWN7660 Wi-Fi 6 Indoor Access Point combines modern Wi-Fi 6 technology, dual-band connectivity, MU-MIMO, strong wireless capacity, security features, and convenient network management. It is an excellent choice for businesses and organizations looking to upgrade their wireless infrastructure and provide fast, dependable Wi-Fi for multiple users.

SPECIFICATION

Brand

Grandstream

Model

GWN7660

Color

White

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax

Antennas

2 × dual‑band internal antennas

Antenna Gain

2.4GHz: 3 dBi 5GHz: 4 dBi

Wi-Fi Data Rates

5GHz 802.11ax: 7.3 – 1201 Mbps 802.11ac: 6.5 – 867 Mbps 802.11n: 6.5 – 300 Mbps 802.11a: 6 – 54 Mbps2.4GHz 802.11ax: 7.3 – 573.5 Mbps 802.11n: 6.5 – 300 Mbps 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps

Frequency Bands

2.4GHz: 2400 – 2483.5 MHz 5GHz: 5150 – 5850 MHz

Channel Bandwidth

2.4GHz: 20 / 40 MHz 5GHz: 20 / 40 / 80 MHz

Wi-Fi & Security

WEP, WPA/WPA2‑PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Anti‑hacking secure boot, digital signature lockdown, unique device certificates, random default password

MIMO Technology

2×2:2 (2.4GHz) 2×2:2 (5GHz)

Coverage Range

Up to 175 meters (varies by environment)

Maximum TX Power

2.4GHz: 24 dBm 5GHz: 22 dBm (varies by region/frequency)

Receiver Sensitivity (2.4GHz)

802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ax 20MHz: -60 dBm @MCS11 802.11ax 40MHz: -58 dBm @MCS11

Receiver Sensitivity (5GHz)

802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps 802.11n 20MHz: -73 dBm @MCS7 802.11n 40MHz: -70 dBm @MCS7 802.11ac 20MHz: -67 dBm @MCS8 802.11ac 40MHz: -63 dBm @MCS9 802.11ac 80MHz: -59 dBm @MCS9 802.11ax 20MHz: -60 dBm @MCS11 802.11ax 40MHz: -58 dBm @MCS11 802.11ax 80MHz: -56 dBm @MCS11

SSIDs

32 total (16 per radio: 2.4GHz & 5GHz)

Concurrent Clients

500+

Network Interfaces

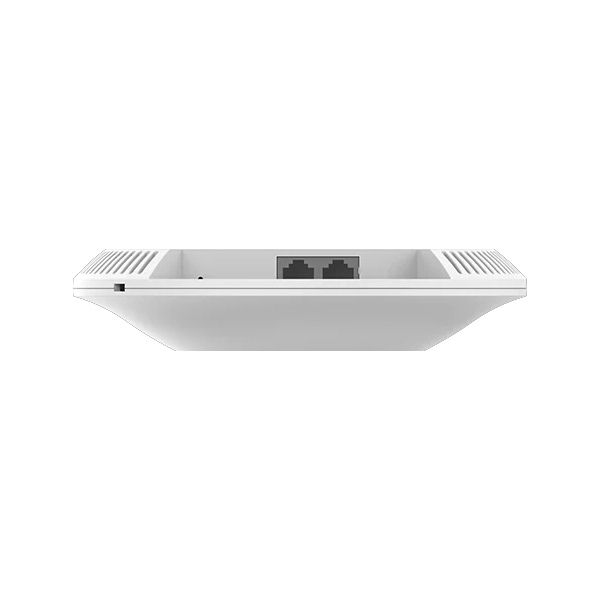

2 × auto‑sensing 10/100/1000 Base‑T Ethernet ports

Auxiliary Ports

1 × Reset pinhole 1 × Kensington lock

Mounting Options

Indoor wall mount or ceiling mount (kits included)

LEDs

3 × tri‑color LEDs (device tracking & status)

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS Features

802.11e/WMM, VLAN, TOS

Network Management

Embedded Controller (manage up to 50 APs) GWN.Cloud (free, unlimited APs) GWN Manager (up to 3,000 APs)

Power & Efficiency

PoE 802.3af/802.3at Max Power Consumption: 9W

Environmental Conditions

Operating: 0°C – 45°C Storage: -10°C – 60°C Humidity: 10% – 90% (non‑condensing)

Physical Dimensions

Unit: 180.4 × 180.4 × 40.8 mm, 443 g Package: 228.5 × 220 × 79 mm, 774 g

Package Contents

GWN7660 Wireless AP, Mounting Kits, Quick Start Guide

Compliance

FCC, CE, RCM, IC

Warranty

3 Year

Note

*Features, Price and Specifications are subject to change without notice.
