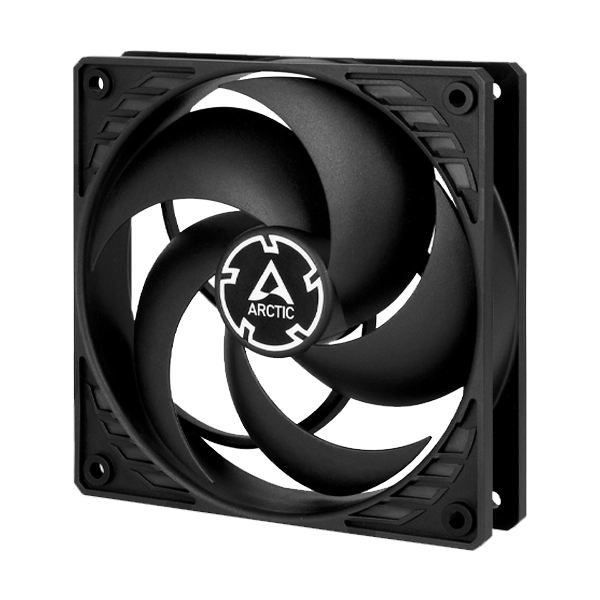

OPTIMISED FOR STATIC PRESSURE: The fan guarantees extremely efficient cooling, even with increased air resistance, therefore, the P14 is particularly suitable for use on heatsinks and radiators
HIGH QUALITY BEARING: Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved
INNOVATIVE DESIGN: The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation, the impeller was designed with a focus on minimzing the noise level
LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage, thus this bearing is as quiet as a sleeve bearing but comes with a higher service life
TECHNICAL DATA: Fan speed: 1700 RPM, Airflow: 72.8 CFM/123.76 m³/h (@ 1700 RPM), Noise Level: 0.3 Sone (@ 1700 RPM), Pin: 3-pin
| Brand | Arctic |
| Modle | ACFAN00136A |
| Colour | Black |
| Fan Size | 140 × 140 × 27 mm |
| Fan Type | Cabinet / Case Fan |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Speed | 200 – 1700 RPM (PWM controlled) |
| Airflow | Up to 72.8 CFM |
| Static Pressure | Up to 2.4 mmH₂O |
| Noise Level | Up to 0.3 sone |
| Connector | 4-Pin PWM with PST (PWM Sharing Technology) |
| Rated Voltage | 12V DC |
| Current | 0.12 A |
| Power Consumption | 1.44 W |
| Mounting | Standard 140mm case mounting |
| Compatibility | PC cases, CPU coolers, radiators |
| Package Contents | 5 × 140mm cabinet fans, mounting screws |
| Warranty | 6 Years |
| Note | Price, feature and specifications are subject to change without notice. |
