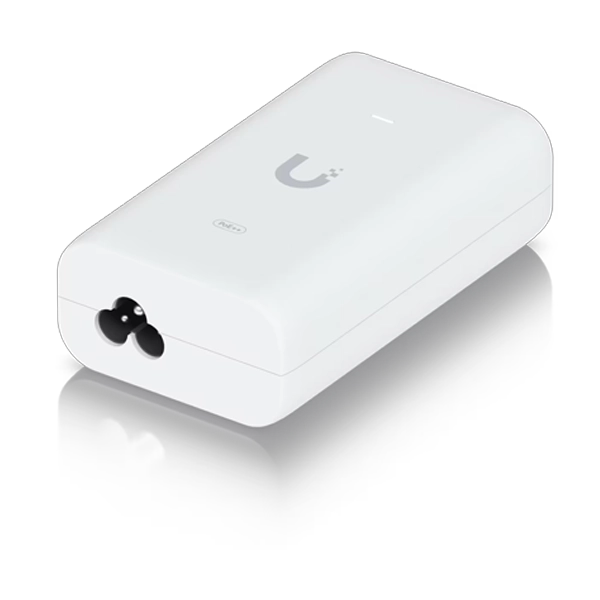

Ubiquiti U-PoE+ UniFi 30W PoE+ Adapter

FEATURES

The Ubiquiti U-PoE+ 30W UniFi PoE+ Adapter is a compact and reliable power solution designed to provide both power and network connectivity through a single Ethernet cable. It is an ideal choice for compatible UniFi devices that require more power than a standard 15W PoE adapter can provide.
The U-PoE+ can deliver up to 30W of PoE+ power, making it suitable for compatible UniFi access points, security cameras, VoIP devices, and other network equipment that supports PoE+. It provides 48V DC at 0.65A, giving compatible devices a dependable power supply while maintaining network connectivity.
One of its main advantages is the Gigabit Ethernet connection, which supports fast data transfer between the powered device and the network. This makes the adapter suitable for modern networking environments where both reliable power delivery and high-speed data communication are important.
The adapter uses 2-pair PoE powering, delivering power through the Ethernet cable while allowing the same cable to carry network data. This helps simplify installations and reduces cable clutter, especially when powering devices mounted on ceilings, walls, poles, or other remote locations.
The U-PoE+ features a compact and lightweight design, making it easy to install near a router, switch, network cabinet, or other suitable location. An integrated LED status indicator provides a quick visual way to check the adapter's operating condition.
For additional protection, the adapter includes surge, peak-pulse, and overcurrent protection. These features help protect the power adapter and connected networking equipment from common electrical issues.
Overall, the Ubiquiti U-PoE+ is a practical and dependable solution for powering compatible PoE+ devices. With its 30W power capacity, Gigabit Ethernet, 48V output, compact design, LED indicator, and built-in protection features, it is well suited for home, office, commercial, and professional UniFi network installations.

SPECIFICATIONS

Brand

Ubiquiti

Model

U-PoE+

Color

White

Dimensions

93 x 62 x 35 mm (3.66 x 2.44 x 1.38")

Weight

156 g (5.5 oz)

Output voltage

48V DC @ 0.65A

LAN activity indicator

Gigabit LAN port

Yes

Remote reset capability

Reset button

Rated voltage

100—240V AC @ 50/60Hz

Input current

0.75A Max.

Inrush current

<100A peak at 26_

Efficiency

87%

Output ripple

1% max.

Switching frequency

70 kHz max.

Line regulation

≤ 3%

Load regulation

≤ 5%

2-pair powering

Pins 4, 5 (+) and 7, 8 (-)

4-pair powering

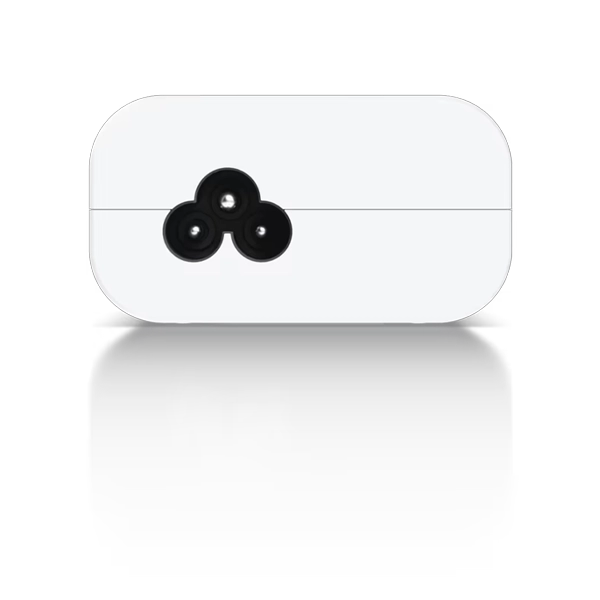

AC connector

IEC-320 C6

Data In / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Ambient operating temperature

0 to 40° C (32 to 104° F)

Storage temperature

-30 to 70°C (-22 to 158° F)

Ambient operating humidity

10 to 95% noncondensing

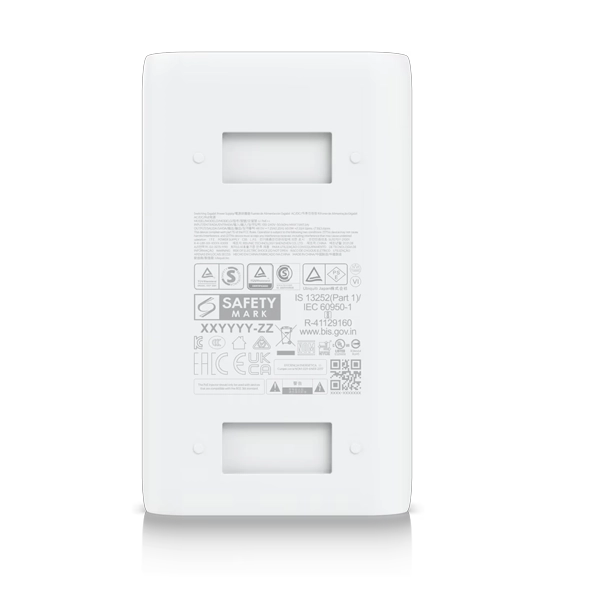

Certifications

CE, FCC, IC, UL

Warranty

1 Year

Note
