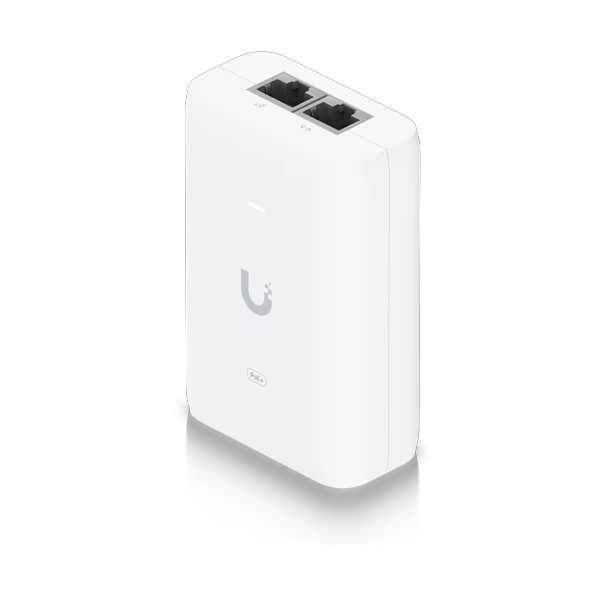

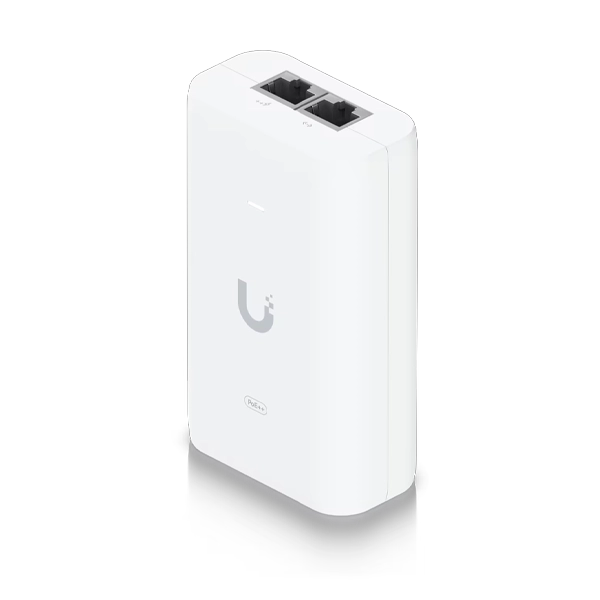

Ubiquiti U-PoE++ 60W PoE Adapter

FEATURES

The Ubiquiti U-PoE++ 60W PoE++ Adapter is a powerful and reliable networking accessory designed to provide power and network connectivity through a single Ethernet cable. It is an ideal solution for compatible UniFi devices that require more power than standard PoE or PoE+ adapters can provide.
The U-PoE++ delivers up to 60W of PoE power with a 48V DC output at 1.25A, making it suitable for high-power networking equipment such as compatible access points, security cameras, and other demanding PoE devices. This higher power capacity allows compatible devices to operate without requiring a separate power connection.
The adapter supports Gigabit Ethernet, providing fast network communication between the connected device and the network. This makes it suitable for modern installations where high-speed data transfer is important, while the same Ethernet cable carries power to the remote device.
Unlike basic PoE adapters, the U-PoE++ supports 4-pair PoE, allowing power to be delivered across all four pairs of the Ethernet cable. This helps provide the higher power output required by compatible high-performance network devices.
Its compact and practical design makes installation convenient in homes, offices, network cabinets, commercial spaces, and professional IT environments. The adapter can be placed near a router or network switch while a single Ethernet cable connects it to the powered device.
An integrated LED status indicator provides a quick visual indication of the adapter's operating condition. The U-PoE++ also includes protection features designed to help safeguard the adapter and connected equipment against electrical issues such as surges and overcurrent conditions.
Overall, the Ubiquiti U-PoE++ 60W is a dependable high-power PoE solution for compatible UniFi and other supported networking equipment. With its 60W power capacity, 48V output, 1.25A current, Gigabit Ethernet, 4-pair PoE support, compact design, LED indicator, and built-in protection, it is well suited for demanding home, office, commercial, and professional network installations.

SPECIFICATIONS

Brand

Ubiquiti

Model

U-PoE++

Color

White

Dimensions

106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight

210 g (7.4 oz)

Output voltage

48V DC @ 1.25A

LAN activity indicator

Gigabit LAN port

Yes

Remote reset capability

Reset button

Rated voltage

100—240V AC @ 50/60Hz

Input current

1.3A @ 120V AC 0.75A @ 230V AC

Inrush current

<100A peak @ 120V AC <200A peak @ 230V AC

Efficiency

85+%

Output ripple

1% max.

Switching frequency

65 kHz

Line regulation

≤ 1%

Load regulation

≤ 3%

2-pair powering

4-pair powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

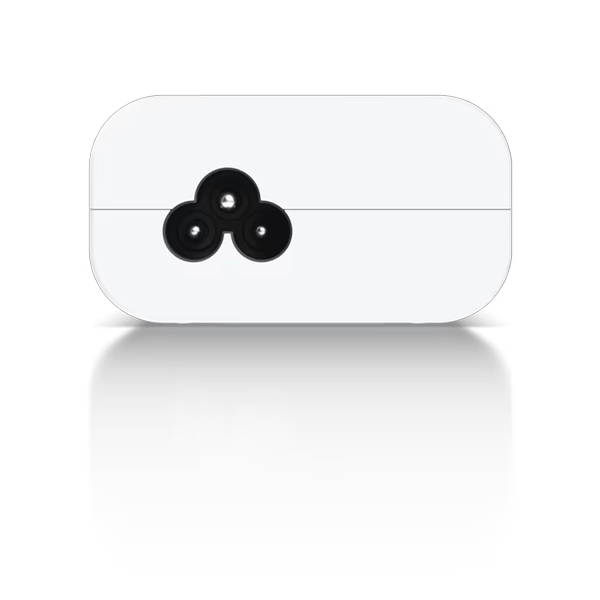

AC connector

IEC-320 C6

Data In / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Power method

Universal AC input, 100—240V AC, 50/60 Hz

Power supply

AC/DC

Supported voltage range

100—240V AC

Max. PoE+ wattage per port by PSE

60W

Ambient operating temperature

0 to 40° C (32 to 104° F)

Storage temperature

-30 to 70°C (-22 to 158° F)

Ambient operating humidity

10 to 95% noncondensing

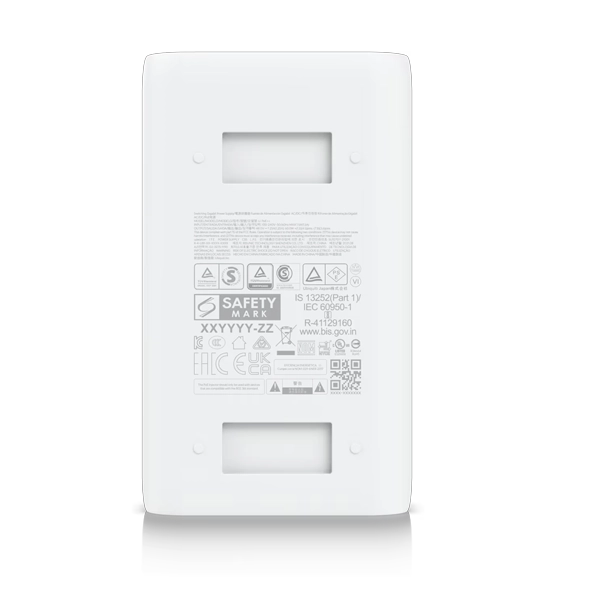

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

Warranty

1 Year

Note

*Price, feature and specifications are subject to change without notice
