Ubiquiti U-PoE 15W UniFi PoE Adapter

No reviews yet |Write a review
SKU: U-PoE  |  Brand: Ubiquiti
₹ 1,499 ₹ 1,999 25% OFF ● Out of Stock
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Secure Payments
100% Genuine
Fast Delivery
Expert Support

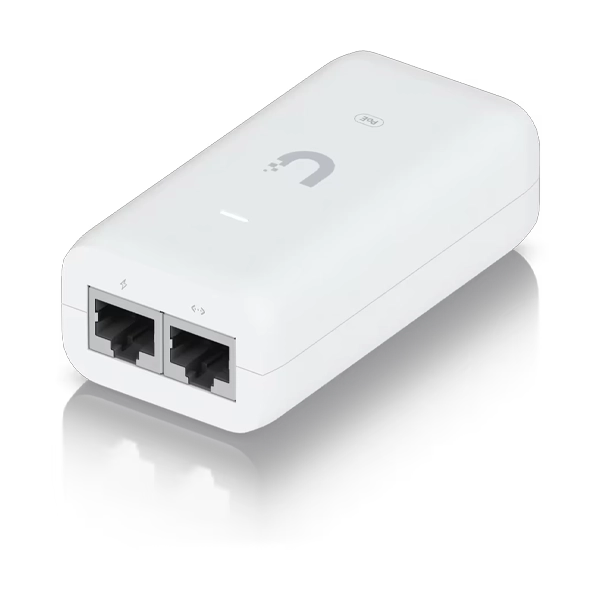

Ubiquiti U-PoE 15W UniFi PoE Adapter


FEATURES

  • The Ubiquiti U-PoE 15W UniFi PoE Adapter (U-POE-AF) is a compact and convenient power solution designed to provide both power and network connectivity through a single Ethernet cable. It is ideal for compatible UniFi networking devices and other 802.3af-compatible equipment that needs Power over Ethernet without using a separate power cable at the device location.
  • The adapter can provide up to 15W of PoE power, making it suitable for powering compatible access points, network devices, cameras, and other low-power Ethernet equipment. By combining power and data into one network cable, it helps keep installations neat and reduces the need for additional electrical wiring.
  • The U-PoE adapter features a Gigabit Ethernet connection, allowing fast network communication while delivering power to the connected device. This makes it suitable for modern networking environments where reliable data transfer and simple installation are important.
  • It supports 802.3af Active PoE, which helps ensure that compatible devices receive the appropriate power through the Ethernet connection. This makes the adapter a practical choice for home networks, offices, small businesses, surveillance installations, and other professional networking applications.
  • The compact design makes the U-PoE easy to place near a router, switch, network cabinet, or other suitable location. It can be used when a PoE switch is not available but a compatible network device still needs to be powered through Ethernet.
  • For additional protection, the adapter is designed with surge, peak-pulse, and overcurrent protection, helping provide an added level of safety for the connected network equipment.
  • Overall, the Ubiquiti U-PoE 15W is a simple, reliable, and space-saving solution for powering compatible PoE devices. Its 15W power output, Gigabit Ethernet, 802.3af compatibility, compact design, and built-in protection features make it a useful accessory for both home and professional network installations.


SPECIFICATIONS


Brand

Ubiquiti

Model

U-PoE

Color

White

Dimensions

86 x 46 x 33 mm (3.39 x 1.81 x 1.30")

Weight

100 g (3.53 oz)

Output voltage

48V DC @ 0.32A

LAN activity indicator

No

Gigabit LAN port

Yes

Remote reset capability

No

Reset Button

No

Rated voltage

100—240V AC @ 50/60Hz

Input current

500mA Max.

Inrush current

<100A Peak at 25°C

Efficiency

84.25+%

Output ripple

200mV p-p

Switching frequency

65 kHz

Line regulation

≤ 3%

Load regulation

≤ 5%

2-pair powering

Pins 4, 5 (+) and 7, 8 (-)

4-pair powering

No

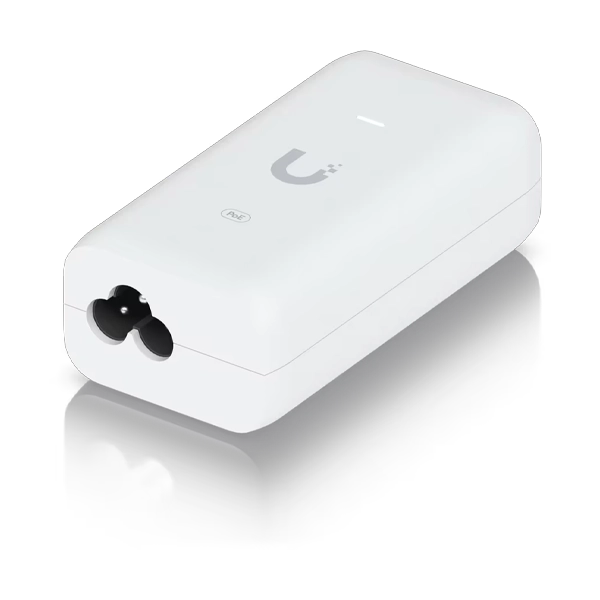

AC connector

IEC-320 C6

Data In / PoE

RJ45 shielded socket

Surge protection

Difference and common mode

Clamping protection

11V data, 60V power

Max. surge discharge

1500A (8/20 μs) power

Peak pulse current

36A (10/1000 μs) data

Shunt capacitance

<5 pF data

Response time

<1 ns

Ambient operating temperature

0 to 40° C (32 to 104° F)

Storage temperature

-30 to 70°C (-22 to 158° F)

Ambient operating humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC, UL

Warranty

1 Year

Note

*Price, feature and specifications are subject to change without notice
