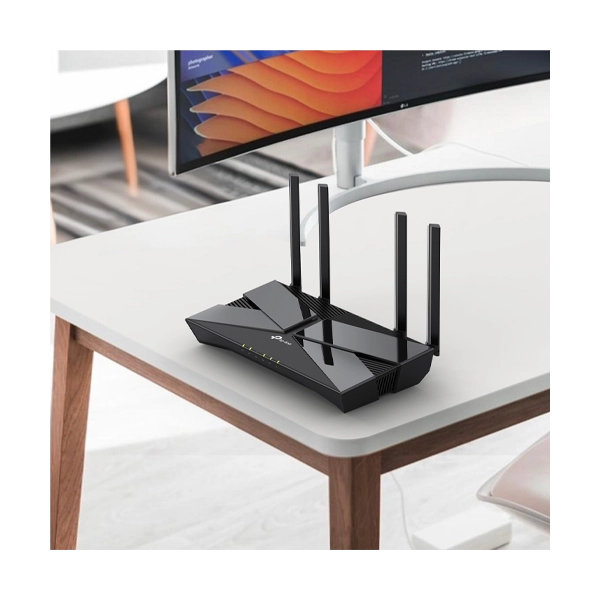

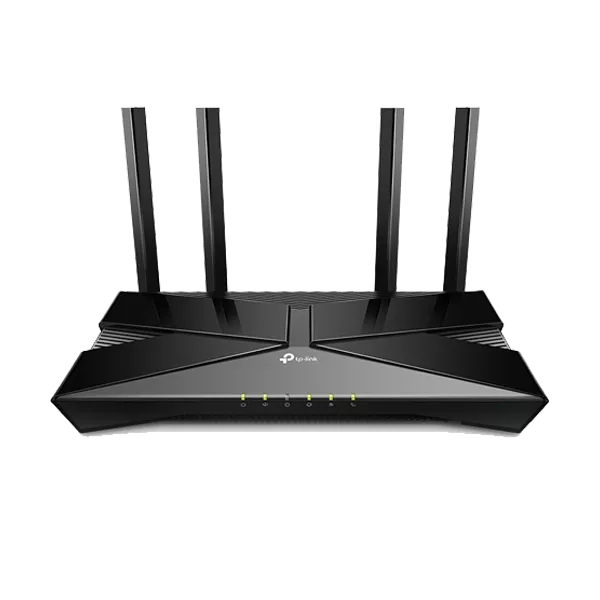

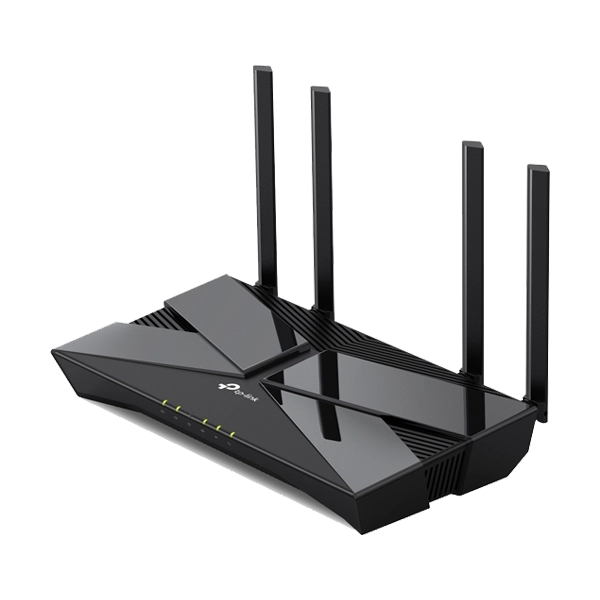

TP-Link XX530v AX3000 Wi-Fi 6 XPON Wireless Router

Brand

TP-Link

Model

XX530v

Color

Black

HARDWARE FEATURES

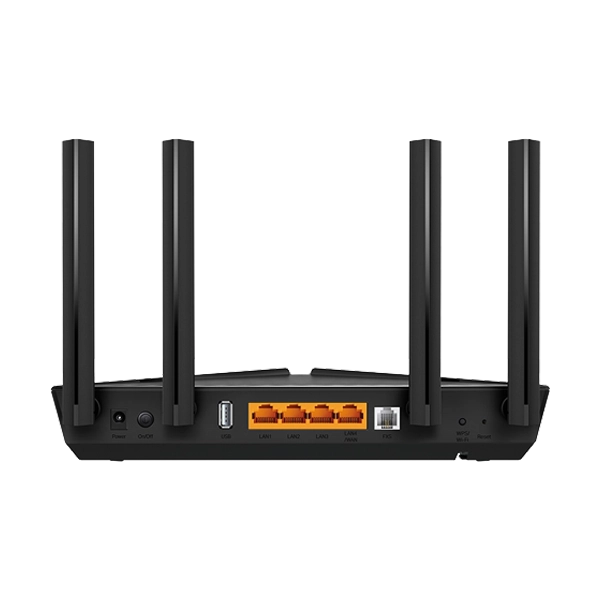

Interface

1× PON Port

1× 10/100/1000 Mbps WAN/LAN Port

3× 10/100/1000 Mbps LAN Ports

1× Phone Port

1× USB 2.0 Port

Button

WPS/Wi-Fi Button

RESET Button

Power On/Off Button

External Power Supply

12V/1.5A

Data Rates

Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)‡

Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)‡

Antenna

4 External Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5 GHz

IEEE 802.11b/g/n/ax 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

AX3000

5 GHz: Up to 2402 Mbps (HE160)

2.4 GHz: Up to 574 Mbps (HE40)*

Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security

WPA/WPA2/WPA3 Encryptions

Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

Multi-SSID

2× 5 GHz Multi-SSID

2× 2.4 GHz Multi-SSID

Wireless Schedule

Support 2.4 GHz and 5 GHz Wireless Schedule

Mesh Technology

EasyMesh Compatible, and support 802.11k/v/r

SOFTWARE FEATURES

Quality of Service

Hardware QoS, Flow Classification

Advanced Features

Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3

Security

NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death"

Management Features

Local management: WebGUI, Aginet app (for end users)

Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111,TR-143 for service providers

Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Pass-through

Protocols

IPv4, IPv6

VPN Server

PPTP VPN, IPSec VPN , OpenVPN

OTHERS

Package Content

WiFi 6 PON Router XX530v

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉)

Storage Temperature: -40℃–60℃ (-40℉–140℉)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing

Warranty

3 year

Note

*Price, feature and specifications are subject to change without notice
