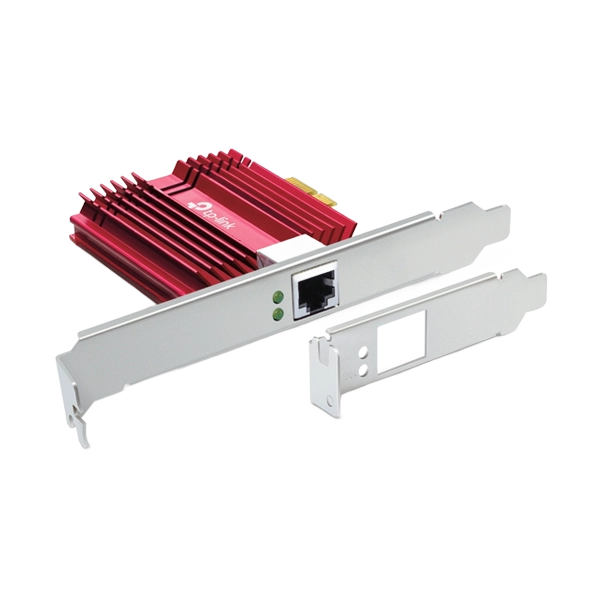

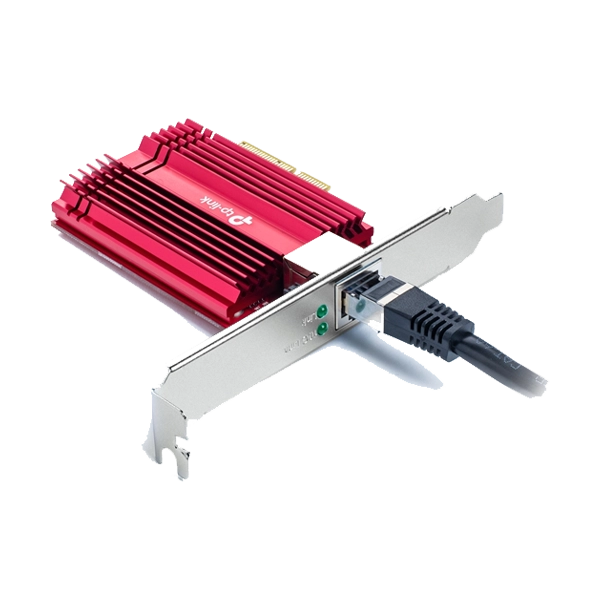

Brand | TP-Link |
Model | TX401 |
Color | Red |
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, |
IEEE802.3az, IEEE 802.3x | |
Interface | 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port |
Network Media | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX |
LED | 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act |
Data Rates | 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, |
200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode | |
Dimensions ( W x D x H ) | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
Flow Control | 802.3x |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Content | 10 Gigabit PCIe Network Adapter (TX401) |
Standard/Low-Profile Brackets | |
Quick Installation Guide | |
Resource CD | |
1.5 m CAT6A Ethernet Cable | |
System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2019/2016/ |
2012 R2, Linux | |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing | |
Warranty | 3 year |
Note | *Price, feature and specifications are subject to change without notice |
