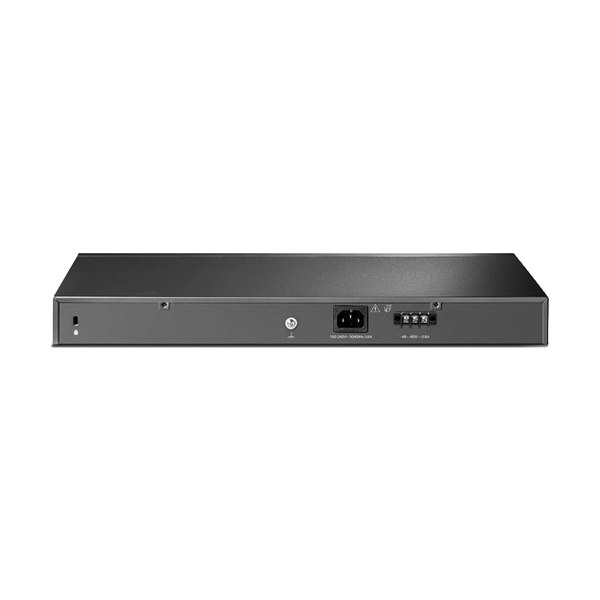

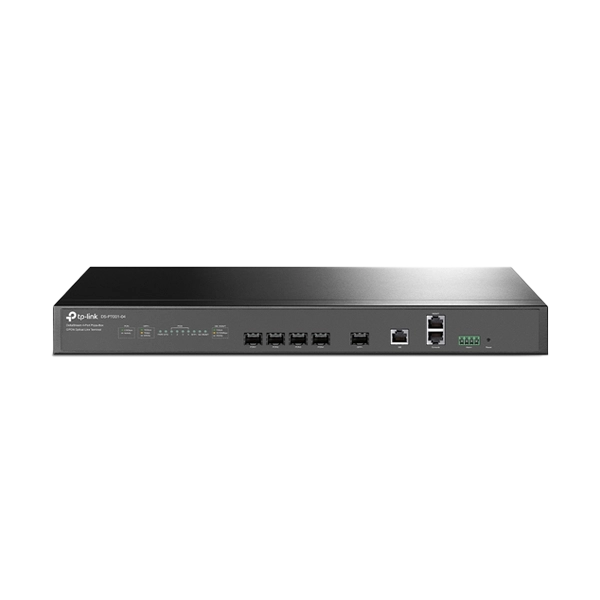

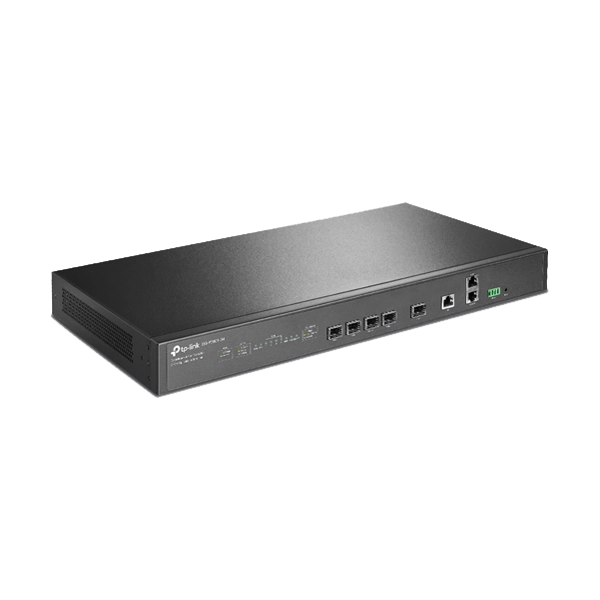

    TP-Link DeltaStream DS-P7001-04 4-Port GPON Optical Line Terminal

    SKU:
    DS-P7001-04
    Be first to review
    ₹ 98,999 ~ ₹ 64,599 35 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    TP-Link DeltaStream DS-P7001-04 4-Port GPON Optical Line Terminal


    FEATURES

    • The TP-Link DeltaStream DS-P7001-04 is a professional 4-port GPON Optical Line Terminal (OLT) designed for Internet Service Providers (ISPs), telecom operators, and organizations building high-speed fiber networks. It serves as the central device in a GPON fiber infrastructure, helping deliver reliable broadband internet, voice, and other network services to multiple users through a single fiber access platform.
    • The DS-P7001-04 features four GPON ports, allowing service providers to connect and manage a large number of customer Optical Network Terminals (ONTs). This makes it an efficient solution for deploying Fiber-to-the-Home (FTTH), Fiber-to-the-Business (FTTB), and other fiber broadband services while reducing infrastructure costs.
    • The device includes high-speed uplink ports, including 10 Gigabit SFP+ and Gigabit Ethernet interfaces, providing fast and reliable connections to the core network. These high-bandwidth uplinks help ensure smooth data transmission, even when many subscribers are using the network simultaneously.
    • Designed for carrier-grade performance, the DS-P7001-04 delivers stable operation, high reliability, and consistent service quality. It supports advanced traffic management features that help prioritize important network traffic, improving the overall user experience for internet, voice, and business applications.
    • The OLT supports centralized network management, making it easier for network administrators to configure, monitor, and maintain the entire GPON network from a single management platform. This simplifies daily operations, speeds up troubleshooting, and reduces maintenance time.
    • Built for scalable fiber deployments, the DS-P7001-04 allows service providers to expand their networks as customer demand grows. Its rack-mount design fits easily into standard data center and telecom cabinets, making installation straightforward in professional networking environments.
    • Security and reliability are also key strengths of the device, helping protect network services while maintaining continuous operation for connected subscribers.
    • With TP-Link's trusted networking technology, the DeltaStream DS-P7001-04 provides a powerful combination of high performance, scalability, efficient management, and dependable operation. It is an excellent choice for ISPs and enterprises looking to build or expand a modern, high-speed GPON fiber broadband network.


    SPECIFICATIONS


    Brand

    TP-Link

    Model

    DS-P7001-04

    Color

    Black

    Interface

    4× 2.5G PON Ports

    1× 10 Gbps SFP+ Uplink Port

    1× 10/100/1000 Mbps RJ45 Uplink Port

    1× RJ45 Console Port

    1× RJ45 MGMT Port

    1× Alarm Port (Reserved)

    Button

    Reset Button

    Power Supply

    Dual Power Supplies

    AC: 100V~240V, 50/60Hz

    DC: -38.4V~-72V

    Max. Power Consumption

    Max. 58W

    Security

    ACL

    802.1x Authentication

    ARP Inspection

    IP Source Guard

    DHCP

    DHCP Server

    DHCP Relay

    OMCI

    Standard OMCI Management Supported

    ONU Authentication

    ONU Auto Authentication

    ONU Security

    Rouge ONU Detection and Isolation

    Uplink and Downlink Data Encryption

    Multi-Service

    Multi-Service Traffic Identify and Rate Limit

    QoS

    IEEE 802.1p/DSCP QoS

    Voice VLAN

    Auto VoIP

    Routing

    Static Routing

    Mulitcast

    IGMP Snooping

    MLD Snooping

    Centralized Management

    Large-Scale Devices Management

    OLT Batch Configure, Upgrade, Reboot

    Multi-Site Management

    Intelligent Network Monitoring

    Real-time Network Overview

    Transmission distance

    20km

    Data rate

    Downstream: 2.5 Gbps

    Upstream: 1.25 Gbps

    Wave Length

    Tx: 1490 nm

    Rx: 1310 nm

    Interface type

    SC/UPC

    Fiber type

    9/125μm SMF (Single Mode Fiber)

    Tx power

    Class C+

    Certification

    CE,FCC

    Package Content

    OLT Device

    Power Cord and Console Cable

    Installation Guide

    Mouting Brackets, Screws and Rubber Feet

    Environment

    Operating Temperature: 0°C~50°C (32°F~122°F)

    Dimensions ( W x D x H )

    17.3 × 7.1 × 1.7 in (440 × 180× 44 mm)

    Warranty

    2 Year
