Brand | TP-Link | ||
Model | Archer TX20U Plus | ||
Color | Black | ||
HARDWARE FEATURES | |||
LED | Status | ||
Dimensions ( W x D x H ) | 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) | ||

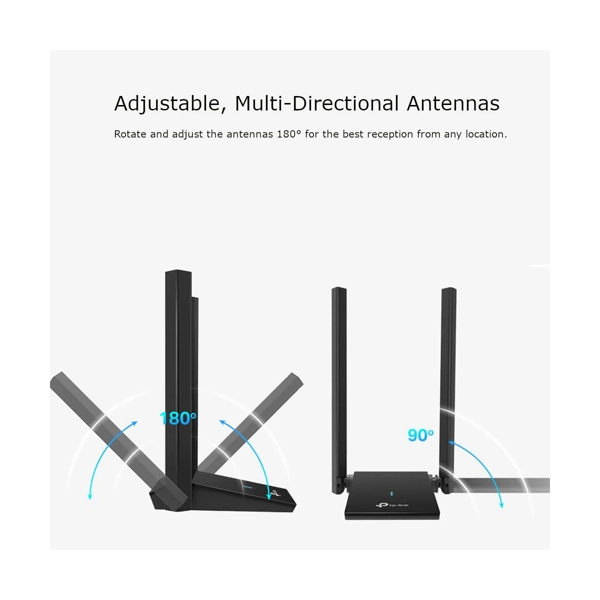

Antenna | 2× High-Gain Dual-Band Antennas | ||
WIRELESS FEATURES | |||
Wireless Standards | IEEE 802.11a/b/g/n/ac/ax | ||
Signal Rate | 5 GHz: | ||
11ax: Up to 1201 Mbps(dynamic) | |||
11ac: Up to 867 Mbps(dynamic) | |||
11n: Up to 300 Mbps(dynamic) | |||
11a: Up to 54 Mbps(dynamic) | |||
2.4 GHz: | |||
11ax: Up to 574 Mbps(dynamic) | |||
11n: Up to 400 Mbps(dynamic) | |||
11g: Up to 54 Mbps(dynamic) | |||
11b: Up to 11 Mbps(dynamic) | |||
Reception Sensitivity | 5 GHz: | ||
11ax HE80 MCS0: -90 dBm | |||
11ax HE80 MCS11: -59 dBm | |||
11a 54Mbps: -77 dBm | |||
11ac VHT80 MCS0: -92dBm | |||
11ac VHT80 MCS9: -64dBm | |||
2.4 GHz: | |||
11ax HE40 MCS0: -94 dBm | |||
11ax HE40 MCS11: -66 dBm | |||
11g 54Mbps: -79 dBm | |||
11n HT40 MCS9: -74dBm | |||
Wireless Modes | Infrastructure mode | ||
Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK | ||
Transmission Power | 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) | ||
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) | |||
OTHERS | |||
Certification | FCC, CE, RoHS | ||

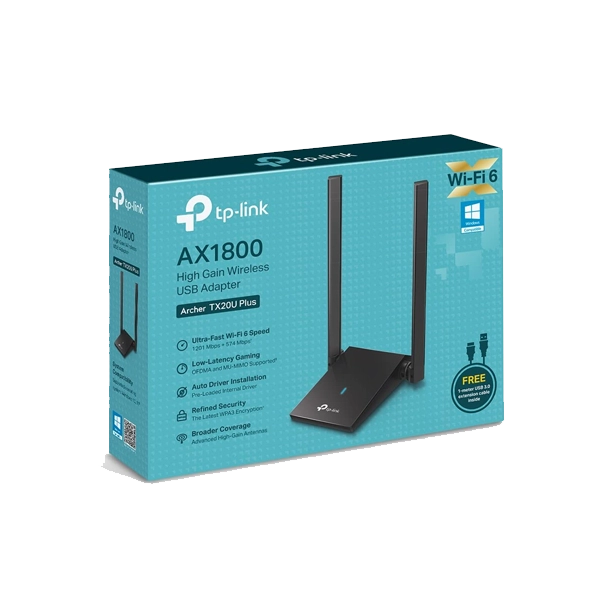

Package Content | AX1800 Dual Antennas High Gain Wireless USB Adapter | ||
Archer TX20U Plus | |||
Quick Installation Guide | |||
1-meter USB 3.0 Cable | |||
System Requirements | Supported operating systems include Windows 10, 11 | ||
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) | ||
Operating Humidity: 10%~90% non-condensing | |||
Storage Humidity: 5%~90% non-condensing | |||
Warranty | 1 Year | ||
Note | *Prices, Specifications & Features are subject to change without notice | ||
