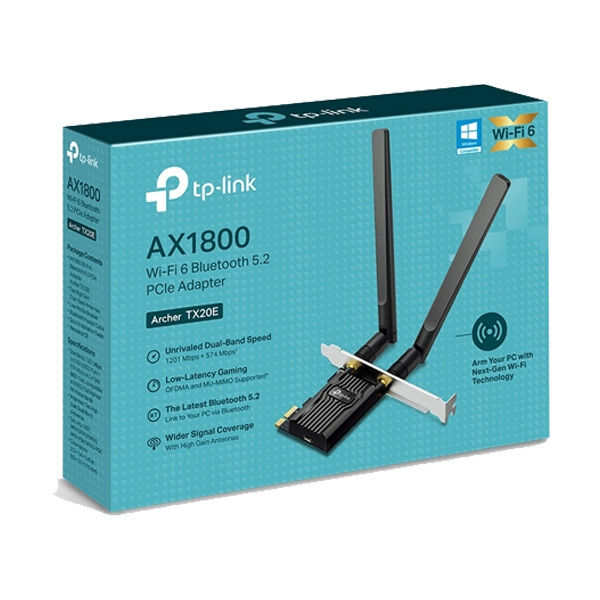

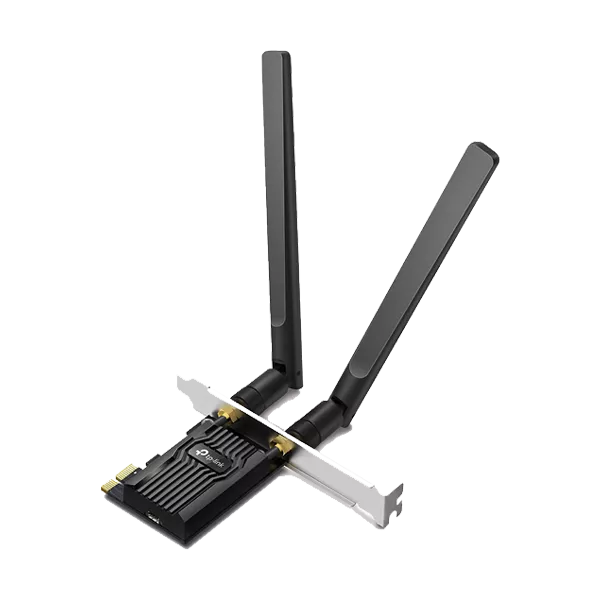

TP-Link Archer TX20E AX1800 Wi-Fi 6 High Gain Antennas Bluetooth 5.2 PCIe Adapter

No reviews yet |Write a review
SKU: Archer TX20E  |  Brand: TP-Link
₹ 3,599 ₹ 5,599 36% OFF ● In StockShips in 1–2 days
Earn 35 Gear Coins with this purchase Coins are credited after delivery.
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Quantity:
(1 available)
Add to Cart
Secure Payments
100% Genuine
Fast Delivery
Expert Support

TP-Link AX1800 Wi-Fi 6 High Gain Antennas Bluetooth 5.2 PCIe Adapter


FEATURES

  • The TP-Link Archer TX20E is an advanced AX1800 Wi-Fi 6 PCI Express adapter designed to bring fast, reliable, and efficient wireless connectivity to desktop computers. It is an ideal upgrade for users who want to add modern Wi-Fi 6 technology and Bluetooth capability to their PC for smoother online experiences and improved network performance.

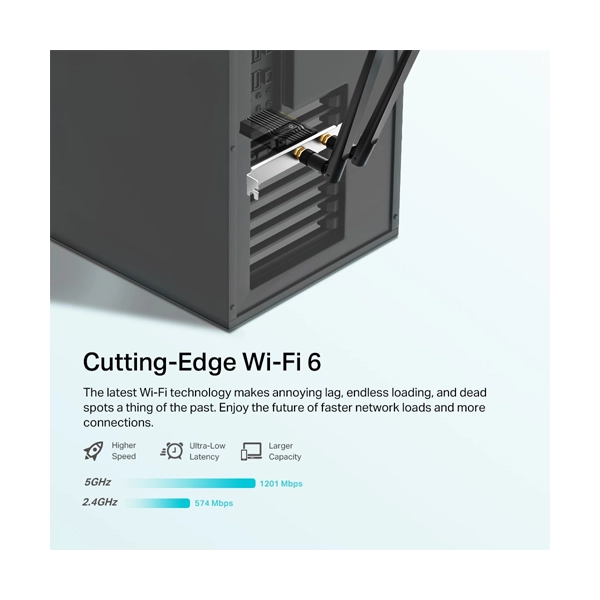

  • The adapter supports the latest Wi-Fi 6 (802.11ax) standard and delivers combined wireless speeds of up to 1800 Mbps. It provides speeds of up to 1201 Mbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band. The 5 GHz band is perfect for high-bandwidth activities such as online gaming, 4K video streaming, video conferencing, and large file downloads, while the 2.4 GHz band offers wider coverage for everyday browsing and connected devices.
  • The Archer TX20E features advanced Wi-Fi 6 technologies such as OFDMA and MU-MIMO, which improve network efficiency by allowing multiple devices to communicate more effectively at the same time. These technologies help reduce latency, increase capacity, and provide a smoother connection in environments with many wireless devices.

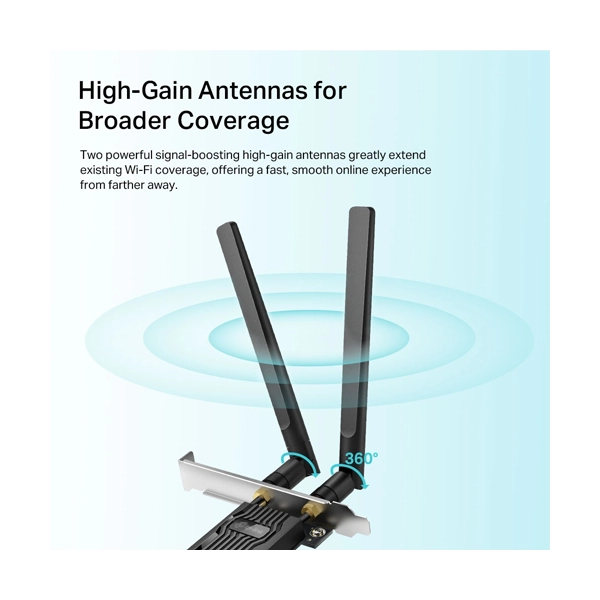

  • The adapter includes two high-performance external antennas that improve wireless signal strength, range, and stability. The antennas can be adjusted to achieve better reception depending on the computer’s location and network environment.

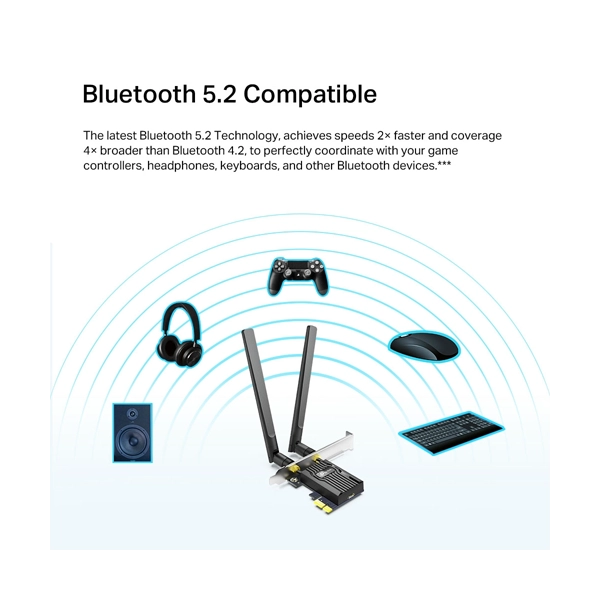

  • In addition to Wi-Fi connectivity, the Archer TX20E includes Bluetooth 5.2 technology, allowing users to connect wireless devices such as keyboards, mice, headphones, game controllers, and other Bluetooth-enabled accessories. Bluetooth 5.2 provides improved speed, range, and energy efficiency compared to older Bluetooth versions.
  • The adapter supports WPA3 wireless security, helping protect your network from unauthorized access and providing enhanced security for modern Wi-Fi connections. Its PCI Express interface ensures a reliable connection with desktop motherboards and allows easy installation in compatible PCs.
  • With Wi-Fi 6 performance, dual-band connectivity, Bluetooth 5.2 support, advanced security, and improved wireless coverage, the TP-Link Archer TX20E is a powerful and practical solution for upgrading desktop computers with fast, secure, and dependable wireless networking.


SPECIFICATIONS


Brand

TP-Link

Model

Archer TX20E

Color

Black

HARDWARE FEATURES


Dimensions ( W x D x H )

4.76 × 3.09 × 0.82 in


(120.8 × 78.5 × 20.9 mm)

Antenna

Two High-Gain Dual Band Antennas

Chipset

Realtek Wi-Fi 6 Chipset

WIRELESS FEATURES


Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz


IEEE 802.11ax/n/g/b 2.4 GHz


Bluetooth 5.2

WLAN Signal Rate

5 GHz


11ax: Up to 1201 Mbps(dynamic)


11ac: Up to 867 Mbps(dynamic)


11n: Up to 300 Mbps(dynamic)


11a: Up to 54 Mbps(dynamic)




2.4 GHz


11ax: Up to 574 Mbps(dynamic)


11n: Up to 300 Mbps(dynamic)


11g: Up to 54 Mbps(dynamic)


11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :


11ax HE80: -57.0dBm


11ax HE40: -60.0dBm


11ax HE20: -63.0dBm


11ac VHT80: -59.5dBm


11ac VHT40: -62.5dBm


11ac VHT20: -67.5dBm


11n HT40: -69.5dBm


11n HT20: -72.5dBm


11a 54Mbps: -74.0dBm


11a 6Mbps: -94.5dBm




2.4GHz :


11ax HE40: -60.0dBm


11ax HE20: -63.0dBm


11n HT40: -69.5dBm


11n HT20: -72.5dBm


11g 54Mbps: -74.0dBm


11b 11Mbps: -88.0dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)


2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS


Certification

CE, FCC, RoHS

Package Content

Archer TX20E


Two High-Gain Dual Band Antennas


Low-Profile Bracket


Bluetooth Header Cable


Quick Installation Guide


Resource CD

System Requirements

Windows 11/10(64-bit) only

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)


Storage Temperature: -40℃~70℃ (-40℉~158℉)


Operating Humidity: 10%~90% non-condensing


Storage Humidity: 5%~90% non-condensing

Warranty

3 year

Note

*Price, feature and specifications are subject to change without notice
