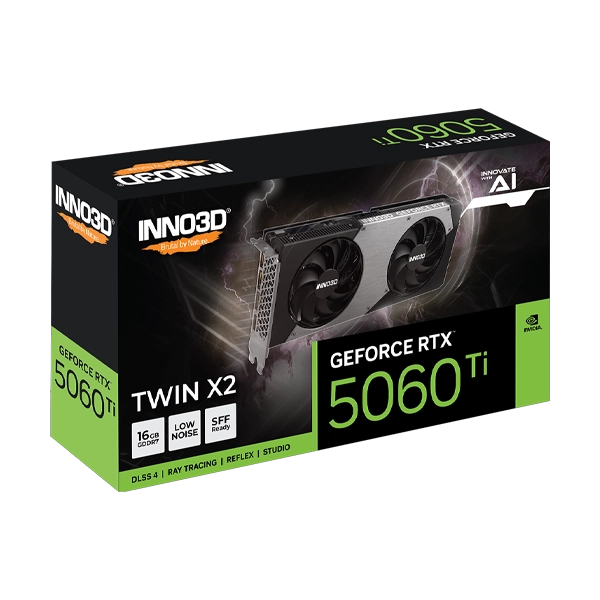

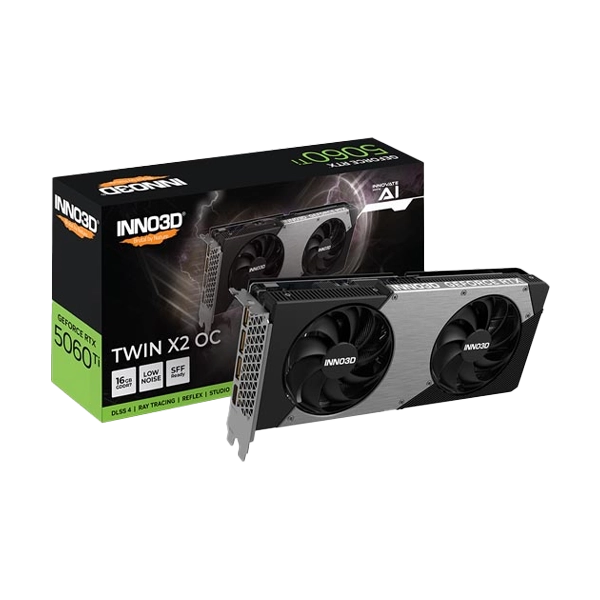

Inno3d Geforce RTX 5060 Ti 16GB Twin X2 Graphics Card
FEATURES
-
16GB GDDR6 Memory
Equipped with high-speed 16GB GDDR6 VRAM, ideal for modern AAA gaming, content creation, and AI-based workloads. -
Powered by NVIDIA Blackwell Architecture
Delivers next-generation performance and efficiency with improved ray tracing, AI processing, and power optimization. -

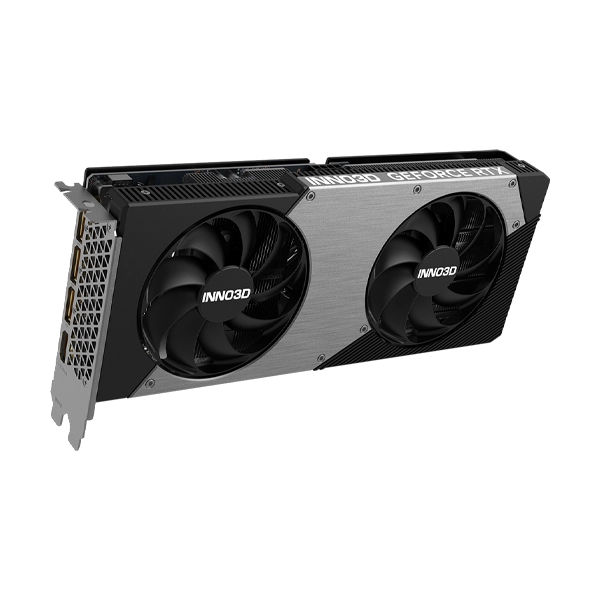

Dual-Fan Twin X2 Cooling System
Features two large scythe-blade fans and optimized heatsink for better airflow, thermal efficiency, and quieter operation. -
Real-Time Ray Tracing (4th Gen Cores)
Experience ultra-realistic lighting, shadows, and reflections in supported games and applications. -
DLSS 4 Support
Utilizes AI to boost frame rates and image quality using NVIDIA’s advanced Deep Learning Super Sampling technology. -
Factory Overclocked (OC Model)
Offers higher performance out-of-the-box with increased clock speeds for better gaming results. -
PCIe Gen 5.0 Support
Ensures faster data bandwidth for improved GPU-to-CPU communication and reduced bottlenecks. -
High-Resolution & Multi-Monitor Support
Supports up to 4 displays with 8K resolution compatibility via HDMI 2.1b and DisplayPort 2.1 outputs. -
VR Ready
Optimized for smooth virtual reality experiences with compatible VR headsets. - DirectX 12 Ultimate, Vulkan & OpenGL Support
Full support for the latest APIs to enhance graphics rendering and game compatibility.
SPECIFICATION
| Brand | Inno 3D |
| Modal | N506T2-16D7-191073N |
| Color | Black |
| GPU Engine | CUDA Cores: 4,608 |
| Base Clock: ~2235 MHz | |
| Boost Clock: up to 2,602 MHz (OC variant) MD ComputersModxComputers | |
| Memory | Capacity: 16 GB GDDR7 |
| Speed: 28 Gbps (effective) | |
| Interface: 128‑bit | |
| Bandwidth: ~448 GB/s Ezpz SolutionsModxComputers | |
| Architecture & AI Features | NVIDIA Blackwell architecture |
| 4th‑gen Ray Tracing Cores (72 TFLOPS) & 5th‑gen Tensor Cores (759 AI TOPS) | |
| Supports DLSS 4 and NVIDIA Studio/Broadcast tools Ezpz SolutionsComputech StoreModxComputers | |
| Interface & APIs | PCIe Gen 5.0 x16 |
| DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 Ezpz SolutionsModxComputers | |
| Cooling & Design | Dual 88 mm scythe-blade fans with FREEZE fan-stop, 4× nickel-plated heatpipes, copper GPU base, aluminum memory base, optimized heatsink, metal multifunctional backplate Ezpz SolutionsMD ComputersComputech Store |
| Dimensions | 250 mm (L) × 116 mm (H) × 41 mm (W), Dual-slot friendly for SFF builds Computech StoreModxComputers |
| Display Outputs | 3× DisplayPort 2.1b |
| 1× HDMI 2.1b | |
| Supports up to 4 monitors, max digital resolution up to 4K @ 480 Hz or 8K @ 165 Hz with DSC, HDCP 2.3 Computech StoreModxComputers | |
| Power Requirements | Typical Power: ~180 W |
| Recommended PSU: 650 W | |
| Power Connector: 1× 8‑pin PCIe Ezpz SolutionsModxComputers | |
| Software & Extras | Features include NVIDIA Ansel, FreeStyle, ShadowPlay, Highlights, Game Ready & Studio Drivers, GPU Boost, G‑SYNC ready, 9th-gen NVENC & 6th-gen NVDEC encoders Ezpz SolutionsComputech Store |
| Compatibility & Warranty | Compatible with Windows 10/11, Linux, FreeBSD x86 platforms |
| Includes 3-year warranty | |
| Warranty | 3 Years |
| Note | Price, Feature and Specifications Are Subject To Change Without Notice. |
