be quiet! Pure Wings 3 120mm PWM Case Fan

be quiet! Pure Wings 3 120mm PWM Case Fan

FETAURES

• The be quiet! Pure Wings 3 120mm PWM High-Speed BL106 is a performance-focused PC cooling fan designed for gaming PCs, workstations, custom desktop computers and demanding cooling configurations. Combining high airflow, strong static pressure, PWM speed control and a reliable rifle bearing, this 120mm fan is suitable for both general case ventilation and more demanding radiator and heatsink applications.
• With a maximum speed of 2100 RPM, the Pure Wings 3 120mm PWM High-Speed delivers airflow of up to 59.6 CFM / 101.2 m³/h and air pressure of up to 2.41 mmH₂O. Its nine airflow-optimized fan blades are designed to generate strong air pressure, making the BL106 suitable for cooling systems where airflow needs to pass through restrictive components such as radiators, heatsinks and fan grills.
• One of the major features of the BL106 is its closed-loop motor technology. The motor continuously monitors the current fan speed and can compensate for air resistance. When resistance causes the fan to slow down, the closed-loop system increases the speed to help maintain the desired RPM. This is particularly useful when the fan is installed against a radiator or other airflow-restricting component.
• The fan frame has also been optimized to minimize air leakage around the outlet. Together with the specially designed fan blades and optimized blade angle, this construction is intended to improve air pressure and cooling performance.
• The BL106 uses a standard 4-pin PWM connector, allowing compatible motherboards and fan controllers to adjust fan speed according to system temperature and workload. This provides flexibility between higher cooling performance during demanding gaming or computing workloads and quieter operation during lighter usage.
• For long-term reliability, the Pure Wings 3 High-Speed uses Rifle Bearing technology and has a rated operating lifespan of up to 80,000 hours at 25°C. Its maximum rated noise level is 30.9 dB(A).

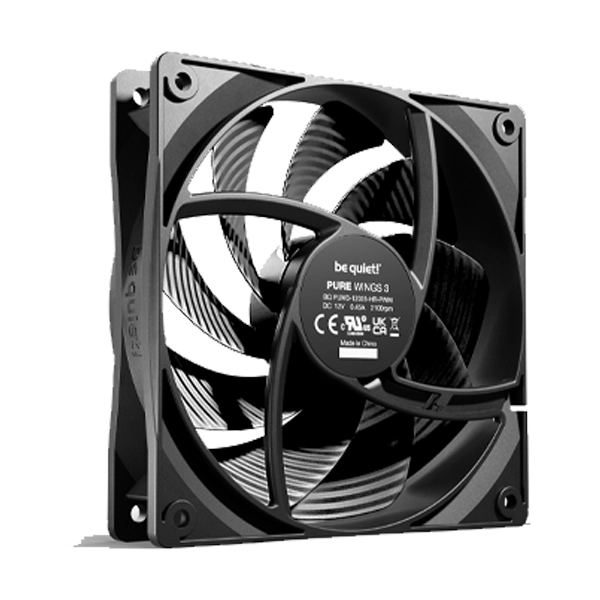

• The fan features a clean black design and standard 120 × 120 × 25 mm dimensions, making it compatible with standard 120mm fan mounting positions. Its versatile design allows it to be used as a case fan or for compatible heatsink and radiator installations.
• Overall, the be quiet! Pure Wings 3 120mm PWM High-Speed BL106 offers a practical combination of strong airflow, high static pressure, intelligent closed-loop motor control, PWM speed regulation and long-term reliability. It is a suitable cooling upgrade for gaming PCs, performance desktops, workstations and custom PC builds where dependable airflow and efficient heat management are important.

SPECIFICATIONS
