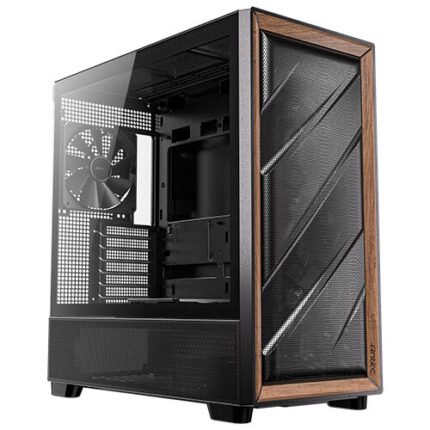

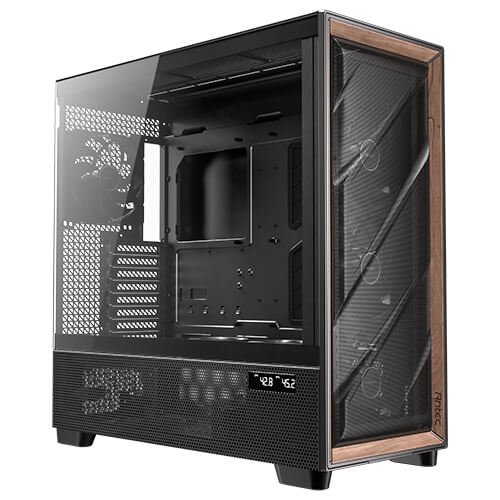

Antec Flux Pro E-ATX Full Tower Cabinet
FEATURES
- Multi-directional vent design creates dual vertical and horizontal airflow channels. Supports 420mm radiators at the top or front.
- Supports up to 12 fans simultaneously. Pre-installed 3 x Tranquil 140 PWM fans in the front, 2 x P12R reverse PWM fans on the PSU chamber, and 1 x Tranquil 140 PWM fan in the rear.
- Flexibly movable hard drive cage. When removed 2 x 140mm / 120mm fans can be installed on the bottom.
- Innovative iShift PSU 90° mount. Dual CPU/GPU temperature display.
- Full-size bottom dust filter with front pull-out design for easy cleaning. Also comes with I/O dust plugs.
- Removable cooling brackets on top, front and PSU shroud. Tool-less panels with snap-on design.
- Fully open PCIe expansion slots and 8 reusable PCIe slot covers.
- The panel combines metal, mesh, and wood materials to create a high-end texture, offering a cozy, home-like feel.
SPECIFICATIONS
| MODEL | Flux Pro |
| Dimensions | 530 x 245 x 545 mm (DWH) |
| Form Factor | Full Tower |
| Materials | Steel + Plastic + Glass + Wood |
| Mainboard Support | E-ATX (≤285mm), ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1 |
| Side Panel | 4mm Tempered Glass |
| Drive Bays | |
| Expansion Slots | 08-Jan |
| 3.5″ /2.5″ | 04-Apr |
| 2.5″ | 2 |
| Fan Support | |
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 3 x 140mm |
| Power Supply Shroud | 3 x 120mm |
| Bottom | 2 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm / 1 x 140mm |
| Included Fan (s) | 3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud |
| + 1 x 140mm Tranquil PWM fan in rear | |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360 / 420mm |
| Top | 120 / 140 / 240 / 280 / 360 / 420mm |
| Power Supply Shroud | 120 / 240 / 360mm |
| Bottom | 120 / 240mm |
| Rear | 120 / 140mm |
| Clearance | |
| Max GPU Length | ≤ 455mm |
| Max CPU Cooler Height | ≤ 190mm |
| Max PSU Length | (Include cable) ≤ 180 / 300mm (with HDD) |
| (Include cable) ≤ 470mm (without HDD) | |
| (Not Include cable) ≤ 180mm (Side Mount) | |
| Miscellaneous | |
| Dust Filter | Bottom |
| Net Weight | 13.60 Kg |
| Gross Weight | 16.65 Kg |
| Warranty | 2 Years |
| NOTE | *Price, feature and specifications are subject to change without notice |
