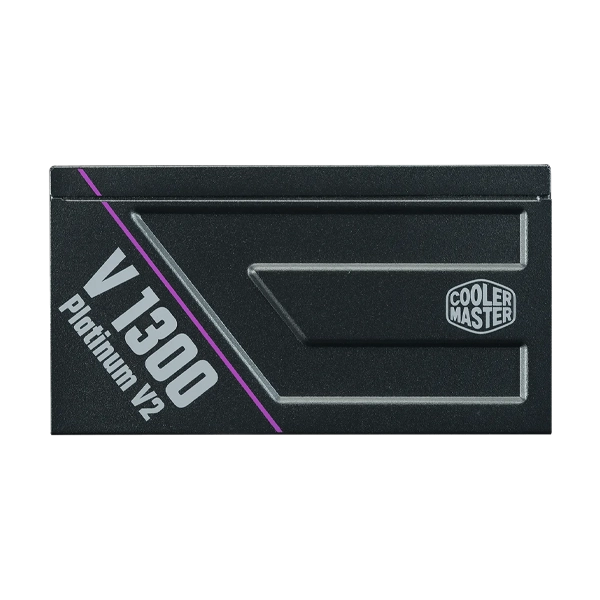

| Product Name | V Platinum 1300 V2 |
| Item Code | MPZ-D002-AFAP-BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100 – 240V |
| Input Current | 15 – 7A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86mm |
| Fan Size | 135 mm |
| Fan Bearing | LDB (Mobius FAN) |
| Fan Speed | 2400±10% rpm |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 50℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 hours |
| Protections | OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush
Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,
RoHS2.0 / BIS, KC (based on region’s request.) |
| Connectors | ATX 24 Pin x1 = 1x (650mm)
EPS 4+4 Pin x1 = 1x (650mm) EPS 8 Pin x1 = 1x (650mm) SATA X16 = 4x (500+120+120+120mm) Peripheral 4 Pin x4 = 1x (500+120+120+120mm) PCI-e 6+2 Pin x5 = 5x (550mm) 12V-2×6 x1 = 1x (650mm) |
| Warranty | 12 years |
| Note* | Price, feature and specifications are subject to change without notice |
