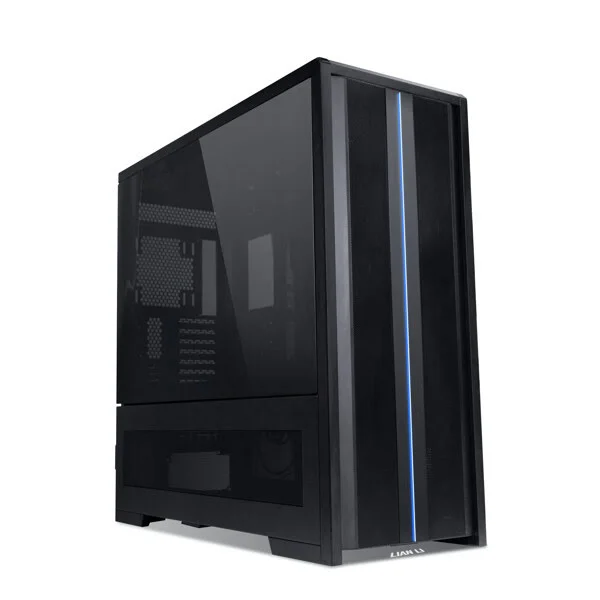

Lian Li V3000 Plus ATX Full Tower Cabinet
FEATURES
- Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
- Capability to support an EEB motherboard and an ITX motherboard
- Supports up to 3×480 + 1×360 radiators and a maximum of 16 fans
- Two reservoir plates accommodate large D5/ DDC pump
- Stores up to 16 storage drives at drive cages and trays
- Modular removable brackets offer flexibility for builds
- Cable management friendly with 7 Velcro straps
- Available in black and white (GGF Edition)
THE LEGEND RETURNS
Lian Li V3000 Plus, the legend’s continuation, is an eye-catching full tower chassis. Designed for enthusiasts, the V3000 PLUS offers a great building process and improved thermal control.
IN PURSUIT OF PERFORMANCE
Lian Li V3000 Plus is designed with enthusiast-level custom water-cooling in mind, leveraging its spacious room for custom loops and endless possibilities.
TOOL-FREE INSTALLATION
The toolless SSD trays behind the motherboard simplifies the mounting of SSDs.
CABLE ROUTING SPACE
With cable management in mind, V3000 PLUS offers 5 small Velcro straps and 2 large multi-layer ones to create a clear routing path. In addition, the rear tempered glass panel features a dark tint to keep the cables as hidden as possible.
SPECIFICATIONS
| Brand | Lian li v3 300 plus |
| Color | Black |
| MODEL | V3000PX |
| DIMENSIONS | (D) 678.5mm x (W) 279mm x (H) 674mm |
| MATERIALS | Aluminum Steel 4.0mm Dark Tinted Tempered Glass (right side) 4.0mm Tinted Tempered Glass (left side) Aluminum Steel 4.0mm Dark Tinted Tempered Glass (right side) 4.0mm Tinted Tempered Glass (left side) |
MOTHERBOARD SUPPORT |
|
| Standard | EEB/E-ATX/ATX/Micro-ATX/Mini-ITX |
| Rotated | EEB/E-ATX/ATX/Micro-ATX/Mini-ITX |
| Dual System | System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX System 2 – Mini-ITX |
FAN SUPPORT |
|
Standard |
|
| Front | 4 x 120mm or 3 x 140mm |
| Top | 4 x 120mm or 3 x 140mm or 2 x 200mm |
| Above PSU Chamber | 3 x 120mm or 3 x 140mm |
| Bottom side | 4 x 120mm or 3 x 140mm |
| Rear | 1 x 120mm or 1 x 140mm |
Rotated |
|
| Front | 4 x 120mm or 3 x 140mm |
| Top | 4 x 120mm or 3 x 140mm or 2 x 200mm Bottom side：4 x 120mm or 3 x 140mm |
| Bottom side | 4 x 120mm or 3 x 140mm |
| Rear | 3 x 120mm or 2 x 140mm |
| Above PSU Chamber | 1 x 120mm or 1 x 140mm |
Dual System |
|
| Front | 4 x 120mm or 3 x 140mm |
| Top | 4 x 120mm or 3 x 140mm or 2 x 200mm |
| Above PSU Chamber | 2 x 120mm or 2 x 140mm |
| Bottom side | 4 x 120mm or 3 x 140mm (without System 2 GPU) Rear: 1 x 120mm or 1 x 140mm |
RADIATOR SUPPORT |
|
| Standard | 480mm or 420mm |
| Front | 480mm or 420mm |
| Top | 480mm or 420mm |
| Above PSU Chamber | 360mm or 420mm |
| ottom side | mm or 420mm |
Rotated |
|
| Front | 480mm or 420mm |
| Top | 480mm or 420mm |
| Dual System | |
| Fron | 480mm |
| CPU COOLER HEIGHT CLEARANCE | |
| System 1 – Max 198mm | System 2 – Max 80mm |
| DRIVE SUPPORT | rive Cage |
| 8 × 2.5” SSD or 8 × 3.5” HDD | Side |
| Behind MB tray | 4 × 2.5” SSD |
| EXPANSION SLOT | System 1 – ATX (Max 220mm) System 2 – SFX-L/SFX |
| GPU LENGTH CLEARANCE | Standard Max 589mm Rotated Max 358mmDual System System 1 – Max 589mm System 2 – Max 320mm (Width max 125mm) |
| CPU COOLER HEIGHT CLEARANCE | System 1 – Max 198mm System 2 – Max 80mm |
| PRODUCT DRIVE SUPPORTNAME | Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD Side：4 × 2.5” SSD Behind MB tray: 4 × 2.5” SSD |
| PRODUCT DRIVE SUPPORTNAME | Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD Side：4 × 2.5” SSD Behind MB tray: 4 × 2.5” SSD |
| EXPANSION SLOT | 8 |
| I/O PORTS | System 1 1 x Power Button 1 x Reset Button 1 x Light Color Button (C) 1 x Light Mode Button (M) 2 x USB 3.0 1 x USB Type C 1 x Audio System 2 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
| DUST FILTER | 1 x Bottom |
| Warranty | 1 Years |
| Note | *Prices, Specifications & Features are subject to change without notice |
