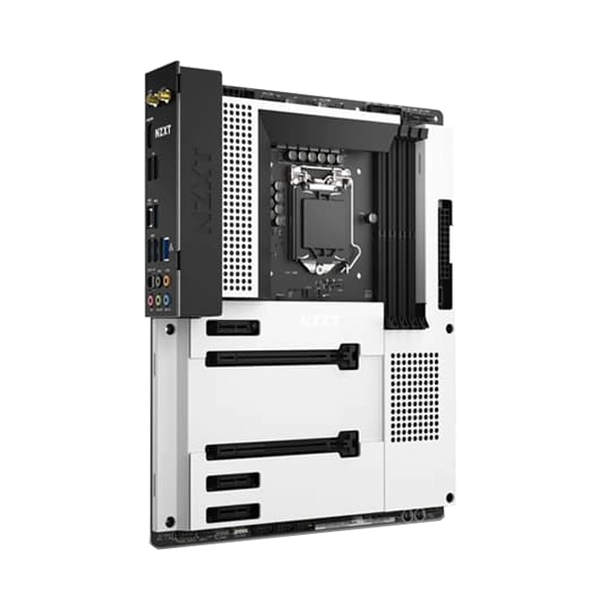

NZXT N7 Z490 ATX Wi-Fi DDR4 Intel Chipset Motherboard – White
FEATURES
Intel Z490 Gaming Motherboard with Wi-Fi and CAM features
Designed around Intel’s Z490 chipset, the NZXT N7 Z490 Atx Intel Chipset Motherboard Wi-Fi White delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accessories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components
- The NZXT N7 Z490 Atx Intel Chipset Motherboard Wi-Fi White includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported.

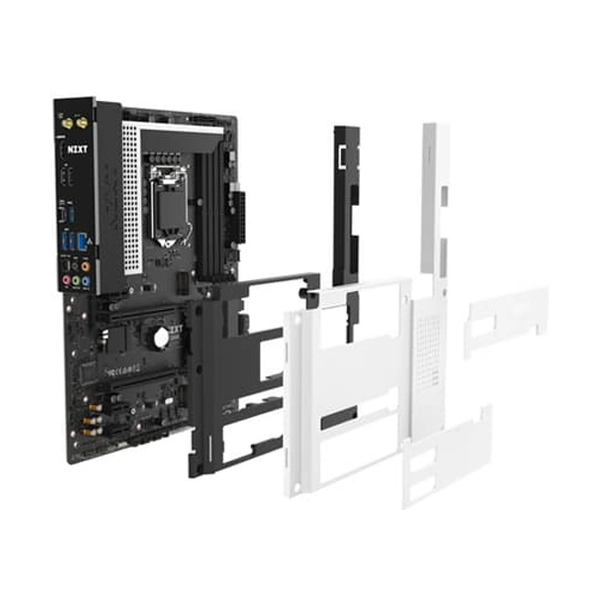

- The N7’s white or black covers provide a clean design that blends seamlessly with your case.
- The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended.
- The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
SPECIFICATIONS
CPU |
|
| Intel® Socket LGA1200 for 10th Generation Processors | Intel® Core™, Pentium Gold, Celeron Processors. Please refer to CPU support list. |
| Turbo Boost Technology 2.0 | Supported |
Memory |
|
| DIMM Slots | 4 |
| Max Memory Support | 128GB |
| Memory Architecture | Dual-Channel |
| OC Frequency | 4266+(O.C.) Please refer to memory QVL. |
| Base Frequency | 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Type | Non-ECC, Un-buffered Memory |
| Intel® XMP 2.0 Support | Supported |
Multi-GPU Support |
|
| AMD 2-Way CrossFireXâ„¢ Technology | Supported |
Storage (Chipset) |
|
| M.2 Type 2242/2260/2280 (PCIe 3.0 x4 mode) | 1 |
| M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) | 1 |
| SATA 6Gb/s | 4 |
| RAID 0/1/5/10 Support | Supported |
| Intel® Smart Response Technology | Supported |
| Intel® Rapid Storage Technology | Supported |
| Intel® Optane Memory | Supported |
Wireless |
|
| Intel® Dual-Band Wireless | AX200 Wi-Fi 6 |
| Protocol | 802.11 a/b/g/n/ac/ax |
| Frequency Bands | 2.4 / 5GHz |
| MU-MIMO Support | Supported |
| Bluetooth | V5.1 |
Rear I/O |
|
| USB 3.2 Gen 2 (Type-C) | 1 |
| USB 3.2 Gen 2 (Type-A) | 1 |
| USB 3.2 Gen 1 (Type-A) | 2 |
| USB 2.0 | 2 |
| HDMIâ„¢ 1.4b | 1 |
| Wireless Antenna | 2 (2T2R) |
| LAN (RJ45) Port | 1 |
| 5.1-Channel Audio Jacks | 1 |
| Optical S/PDIF | 1 |
| Clear CMOS Button | 1 |
Chipset |
|
| Intel® | Z490 |
Integrated Graphics |
|
| Intel® UHD Graphics | HDMI 1.4b |
| HDMI Max Resolution | 4096×2160@24Hz |
| Max Shared Memory | 1024MB |
Expansion Slots |
|
| PCIe x16 (x16 mode) | 1 |
| PCIe x16 (x4 mode) | 1 |
| PCIe 3.0 x1 | 3 |
LAN |
|
| Realtek® | RTL8125BG 2.5G |
Audio |
|
| Realtek® | ALC1220 Codec |
| Channels | 8-Channel High Definition Audio |
| Playback | 32-bit / 192kHz DAC |
| Capacitors | Nichicon Fine Gold Series |
Internal I/O |
|
| M.2 (M Key), Type 2242/2260/2280 | 1 (PCIe 3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode) |
| M.2 (E Key) (For wireless cards) | 1 (Support CNVio) |
| SATA 6Gbps Ports | 4 |
| USB 3.2 Gen 2 Header (Type-C) | 1 |
| USB 3.2 Gen 1 Header | 1 (Up to 2 ports) |
| USB 2.0 Header | 3 (Up to 6 ports) |
| Front Panel Audio | 1 |
| CPU_FAN Connector | 1 (Up to 24W) |
| AIO_PUMP Connector | 1 (Up to 24W) |
| SYS_FAN Connector | 5 (Up to 24W) |
| NZXT RGB LED Header | 2 |
| 5V ARGB Header | 1 |
| 12V RGB Header | 1 |
| 24-pin EATX Power | 1 |
| 8-pin ATX 12V Power | 1 |
| 4-pin ATX 12V Power | 1 |
| Power Button | 1 |
| Reset Button | 1 |
| POST LEDs | 4 |
General |
|
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX |
| WARRANTY | 3 years |
| NOTE | *Features, Price and Specifications are subject to change without notice. |
