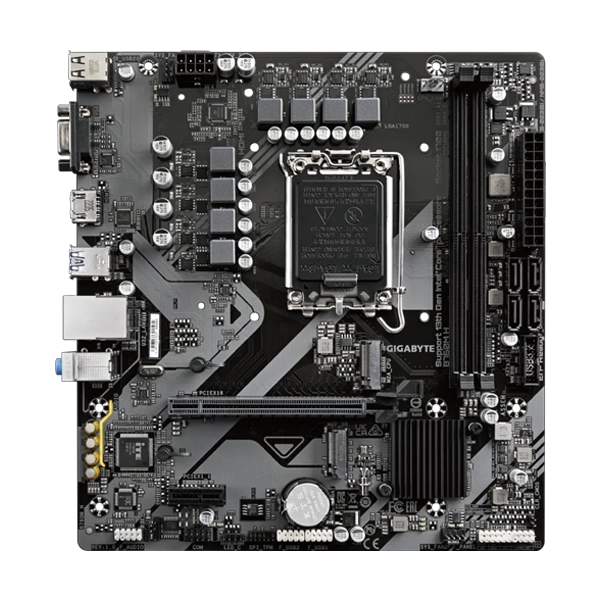

Gigabyte B760M H DDR5
FEATURES
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
SPECIFICATIONS
| Brand | GIGABYTE |
| Color | Black |
| Model | B760M H |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Memory Capacity | Up to 96 GB (48 GB single DIMM capacity) of system memory |
| Memory Architecture | Dual channel memory architecture |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support |
| DisplayPort | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors |
| USB | 6 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x serial port header, 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports, 1 x D-Sub port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Support for Q-Flash |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
