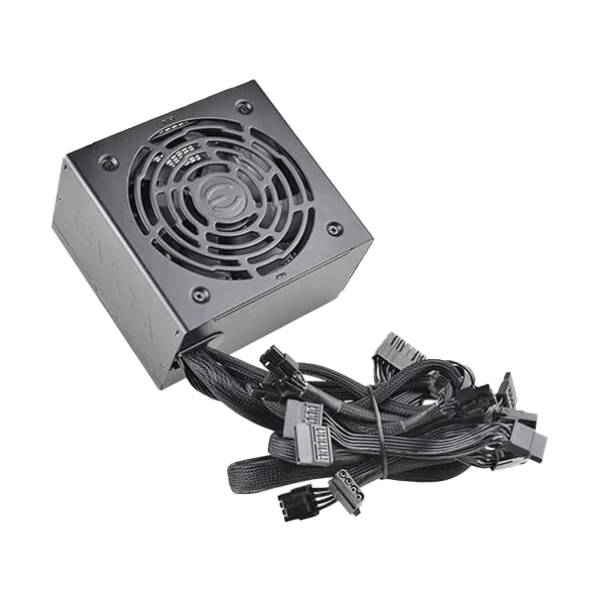

EVGA 750 BR 750 Watt 80 Plus Bronze
Overview
- 80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency
- Single 12V. Rail
- Active Power Factor Correction
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) - 3-Year Warranty
- DC-DC Converter improves 3.3V/5V stability
- Â Quiet and Intelligent Auto Fan for near-silent operation
Specifications
Cable Length |
|
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 1x 550mm, 670mm |
| SATA Cable | 2x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| Floppy Adapter | 1x |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
Connector Quantity |
|
| 24 Pin ATX | 1x 24pin (20+4) |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIe | 4x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
Power Specs |
|
| Total Wattage | 750W |
Input |
|
| Input Voltage | 200-240V~ |
| AC Input | 5A |
| Input Frequency Range | 60/50Hz |
| Efficency | 88% typical |
| Net Weight | 4.00 lbs |
ADDITIONAL DETAILS |
|
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4.4 lbs |
| Size | 86mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, RCM, RoHS |
| Compliance with ErP Lot 3 2014 Requirement | |
| Warranty | 3 Years |
| Note | *Features, Price, and Specifications are subject to change without notice. |
