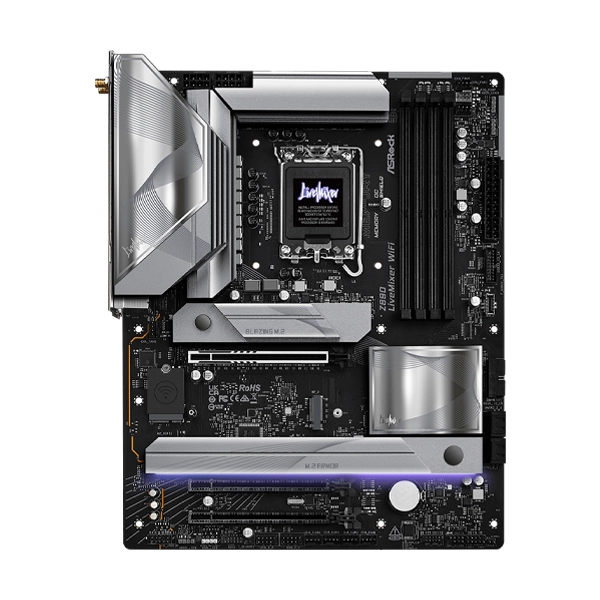

ASRock Z890 LiveMixer WiFi LGA1851RL-ILM DDR5 ATX Motherboard
FEATURES
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
14 USB 3.2 Gen1 (10 Rear, 4 Front)
4 USB 2.0 (Front) - Realtek 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
Specifications
| Brand | ASRock |
| Color | Black |
| Model | Z890 LiveMixer WiFi |
| Unique Features | Superb Productivity |
| – PCIe Gen5 (Graphics, M.2) | |
| – Dual Channel DDR5 | |
| – Thunderbolt™ 4 Type-C Ports (40 Gb/s) | |
| Rock-Solid Durability | |
| – Server-Grade Low-Loss PCB | |
| – 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor | |
| – Memory OC Shield | |
| – Flexible Integrated I/O Shield | |
| – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore | |
| Ultrafast Connectivity | |
| – 2.5G LAN, 802.11be Wi-Fi 7 Module | |
| – ASRock Lightning Gaming Ports | |
| EZ Update | |
| – BIOS Flashback Button | |
| – ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| – ASRock Post Status Checker | |
| CPU | – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) |
| – Supports Intel® Hybrid Technology | |
| – Supports Intel® Turbo Boost Max 3.0 Technology | |
| – Supports Intel® Thermal Velocity Boost (TVB) | |
| – Supports Intel® Adaptive Boost Technology (ABT) | |
| – Integrated NPU for dedicated AI acceleration | |
| Chipset | Intel® Z890 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC) | |
| – Supports Clocked Unbuffered DIMM (CUDIMM) | |
| – Max. capacity of system memory: 256GB | |
| – Supports Intel® Extreme Memory Profile (XMP) 3.0x | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe LPG Graphics Architecture |
| – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| – Impedance Sensing on Rear Out port | |
| – Individual PCB Layers for R/L Audio Channel | |
| – Nahimic Audio | |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Dragon RTL8125BG | |
| – Supports Dragon 2.5G LAN Software | |
| – Smart Auto Adjust Bandwidth Control | |
| – Visual User Friendly UI | |
| – Visual Network Usage Statistics | |
| – Optimized Default Setting for Game, Browser, and Streaming Modes | |
| – User Customized Priority Control | |
| Wireless LAN | – 802.11be 2×2 Wi-Fi 7 Module |
| – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be | |
| – Supports 2.4GHz/5GHz/6GHz frequency band | |
| – Supports 320MHz channel bandwidth with 6GHz frequency band | |
| – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology | |
| – Supports Bluetooth 5.4 | |
| – Supports MU-MIMO | |
| Slots | – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| – 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode | |
| – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 | |
| Storage | – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes | |
| – 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| USB | – 2 x Thunderbolt™ 4 Type-C (Rear) |
| – 1 x USB 3.2 Gen2x2 Type-C (Front) | |
| – 2 x USB 3.2 Gen2 Type-A (Rear) | |
| – 14 x USB 3.2 Gen1 (10 Rear, 4 Front) | |
| – 4 x USB 2.0 (Front) | |
| Connector | – 1 x Thermistor Cable Header |
| – 1 x SPI TPM Header | |
| – 1 x Power LED and Speaker Header | |
| – 1 x RGB LED Header | |
| – 3 x Addressable LED Headers | |
| – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| – 1 x 24 pin ATX Power Connector | |
| – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| – 1 x Front Panel Audio Connector | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |

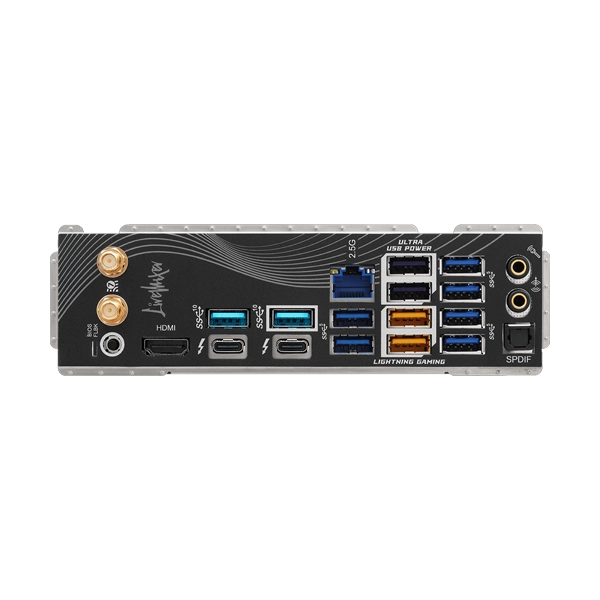

| Rear Panel I/O | – 2 x Antenna Ports |
| – 1 x HDMI Port | |
| – 1 x Optical SPDIF Out Port | |
| – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) | |
| – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| – 10 x USB 3.2 Gen1 Ports | |
| – 1 x RJ-45 LAN Port | |
| – 1 x BIOS Flashback Button | |
| – 1 x Line Out Jack (Gold Audio Jack) | |
| – 1 x Microphone Input Jack (Gold Audio Jack) | |
| Software & UEFI | Software |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock Dragon 2.5G LAN Software | |
| – ASRock Polychrome SYNC | |
| UEFI | |
| – ASRock EZ Mode | |
| – ASRock Full HD UEFI | |
| – ASRock My Favorites in UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| Accessories | – 2 x SATA Data Cables |
| – 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| – 1 x Thermistor Cable | |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| – 2oz Copper PCB | |
| OS | Microsoft Windows® 11 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3-Year Warranty |
| Note | Features, Price, Specifications are subject to change without notice. |
